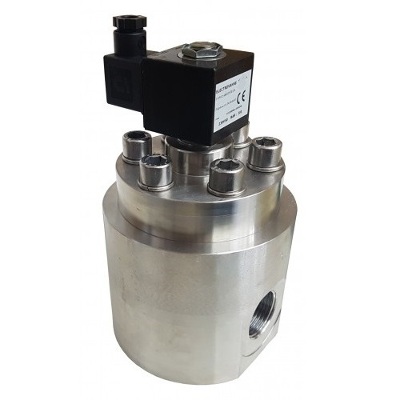

1 Inch High Pressure 316L Stainless Steel Solenoid Valve – Up to 300 Bar
The CNXHPI025ASS is a heavy-duty high pressure stainless steel solenoid valve engineered for demanding industrial, petrochemical and process control applications. Available in both normally closed and normally open configurations, this pressure-assisted piston valve provides reliable operation with air, water, gases, oils and industrial fluids at pressures up to 300 Bar.
Manufactured from 316L stainless steel throughout, the valve combines exceptional corrosion resistance with high flow capacity and industry-leading pressure ratings. Every valve is individually function tested, pressure tested and leak tested before dispatch and can be supplied with ATEX-certified hazardous area coils for operation in explosive atmospheres.
Valve Function & Operation
Function: 2/2 way normally closed
Optional Function: 2/2 way normally open
Operation: Pressure assisted piston
Port Size: 1" BSP female
Optional Connection: NPT thread
Orifice Diameter: 25mm
Kv Flow Factor: 150 L/min
Flow based on water with 1 Bar pressure drop.
Pressure Ratings
Available in a range of pressure classes:
1 to 20 Bar
1 to 50 Bar
1 to 100 Bar
1 to 200 Bar
10 to 300 Bar
This flexibility allows the valve to be specified for everything from general industrial duties through to ultra-high-pressure process applications.
Construction
Body: 316L Stainless Steel
Internal Components: Stainless Steel
Main Seat System:
PTFE reinforced sealing system (up to 200 Bar)
Voltalef® sealing system (up to 300 Bar)
Designed for long service life in aggressive industrial environments where corrosion resistance and reliability are essential.
Seal Options
Up to 200 Bar
FKM (Viton®) + PTFE
NBR + PTFE
EPDM + PTFE
Up to 300 Bar
FKM (Viton®) + Voltalef®
NBR + Voltalef®
EPDM + Voltalef®
The specialist sealing systems provide excellent resistance to pressure, temperature and demanding process media.
Temperature & Media
Temperature
Maximum Media Temperature: +150°C
Suitable Media
Compressed Air
Water
Industrial Gases
Light Oils
Process Fluids
Petrochemical Products
Fluids below 40 cSt viscosity
Media must be compatible with valve materials and selected seal compounds.
Coil Specification
Standard Coil
Model: 31400
Power Consumption: 14-20 Watts
DIN 43650A Connection
CE Approved
Class F Insulation
IP65 Protection
100% Continuous Duty Rated
Supplied complete with connector for rapid installation.
Voltage Options
Available in a wide range of industrial AC and DC voltages.
ATEX Hazardous Area Options
ATEX Ex e mb Coil
Ex e mb IIC
Temperature Classes T4 or T6
IP65 or IP66 Protection
Gas and Dust Approved
ATEX Ex d Flameproof Coil
Ex d IIC
Temperature Classes T4, T5 or T6
IP66 or IP67 Protection
Flameproof Construction
Gas and Dust Certified
Suitable for operation in hazardous areas where explosive gas or dust atmospheres may be present.
Designed for Petrochemical Applications
The CNXHPI025ASS has been specifically developed for petrochemical and high-pressure industrial service where reliability, safety and certification are critical.
Typical applications include:
Petrochemical plants
Oil & gas installations
Chemical processing facilities
High pressure gas systems
Nitrogen systems
Hydrogen compatible applications*
Industrial process control
Refinery operations
Pressure testing equipment
Energy and utility plants
Hazardous area installations
*Subject to material compatibility review.
Quality Assurance
Every valve is supplied with:
✓ 100% Functional Testing
✓ 100% Pressure Testing
✓ 100% Leak Testing
✓ ATEX Certification (where applicable)
✓ Full Traceability
Key Features
✓ 316L stainless steel construction
✓ Pressure ratings up to 300 Bar
✓ Normally closed or normally open versions
✓ Large 25mm orifice
✓ High flow rate of 150 L/min
✓ Temperature capability up to +150°C
✓ PTFE or Voltalef sealing systems
✓ CE approved industrial coil
✓ ATEX Ex e mb and Ex d options
✓ Designed for petrochemical applications
✓ Individually tested and certified
✓ Quantity discounts available for 2 or more valves
✓ Free next-day UK delivery available on stocked models
Why Choose the CNXHPI025ASS?
The CNXHPI025ASS offers a rare combination of 316L stainless steel construction, high flow performance and pressure ratings up to 300 Bar. With normally closed and normally open options, ATEX-certified coils and sealing systems specifically engineered for extreme pressure applications, it is ideally suited to the most demanding petrochemical, energy and industrial process installations.
