A Guide to Solenoid Valve Water Control

A solenoid valve for water is, at its heart, an automated tap. It’s an electrically controlled gatekeeper that starts or stops the flow of water on command, giving you precise, instant control over your plumbing, irrigation, or industrial system without needing to lift a finger.

Your Guide to Automated Water Control

At its core, a solenoid valve works using a beautifully simple principle: electromagnetism. When you send an electric current to the valve, it energises a coil, creating a magnetic field. This field is strong enough to move a small internal part, usually called a plunger or piston.

As the plunger moves, it instantly opens a path, allowing water to flow through. The moment you cut the power, the magnetic field vanishes, and a spring pushes the plunger straight back into place, shutting off the flow just as quickly.

This elegant mechanism is precisely why you see these valves everywhere. From the humble washing machine filling its drum to complex, automated watering schedules on a large-scale farm, the solenoid valve is the unsung hero making it all happen. It brings a level of precision and reliability that you just can't get with manual valves.

Why This Technology Is Essential

The value of a solenoid valve goes far beyond simple convenience. In a world where we're all focused on being more efficient and conserving resources, the ability to control water with pinpoint accuracy is a game-changer. Just think about the key benefits:

Water Conservation: In any irrigation system, solenoid valves are crucial for preventing waste. They deliver water only when and where it's needed, saving a massive amount of our most precious resource.
Process Automation: For industrial plants, they make automated processes possible. Whether it's for cooling systems or beverage production, they deliver the exact measurements and timing required.
Enhanced Safety: In many systems, they serve as a critical automatic shut-off device. This can prevent catastrophic floods or expensive equipment damage if something else in the system fails.
System Reliability: Because they have very few moving parts, these valves are known for their rugged durability and long service life, which means minimal maintenance for you.

This guide will walk you through everything you need to know. We’ll cover how they work, how to choose the right materials for the job, and the best practices for installing and maintaining a solenoid valve for water.

By getting to grips with the fundamentals, you’ll have a much better appreciation for the role these devices play in our everyday lives and in highly advanced industrial operations. Whether you're a homeowner planning a new garden project or an engineer designing a complex fluid control system, understanding this technology is a key step towards building more efficient, reliable, and sustainable solutions.

For a deeper dive into specific options, you can explore our complete collection of valves for water applications.

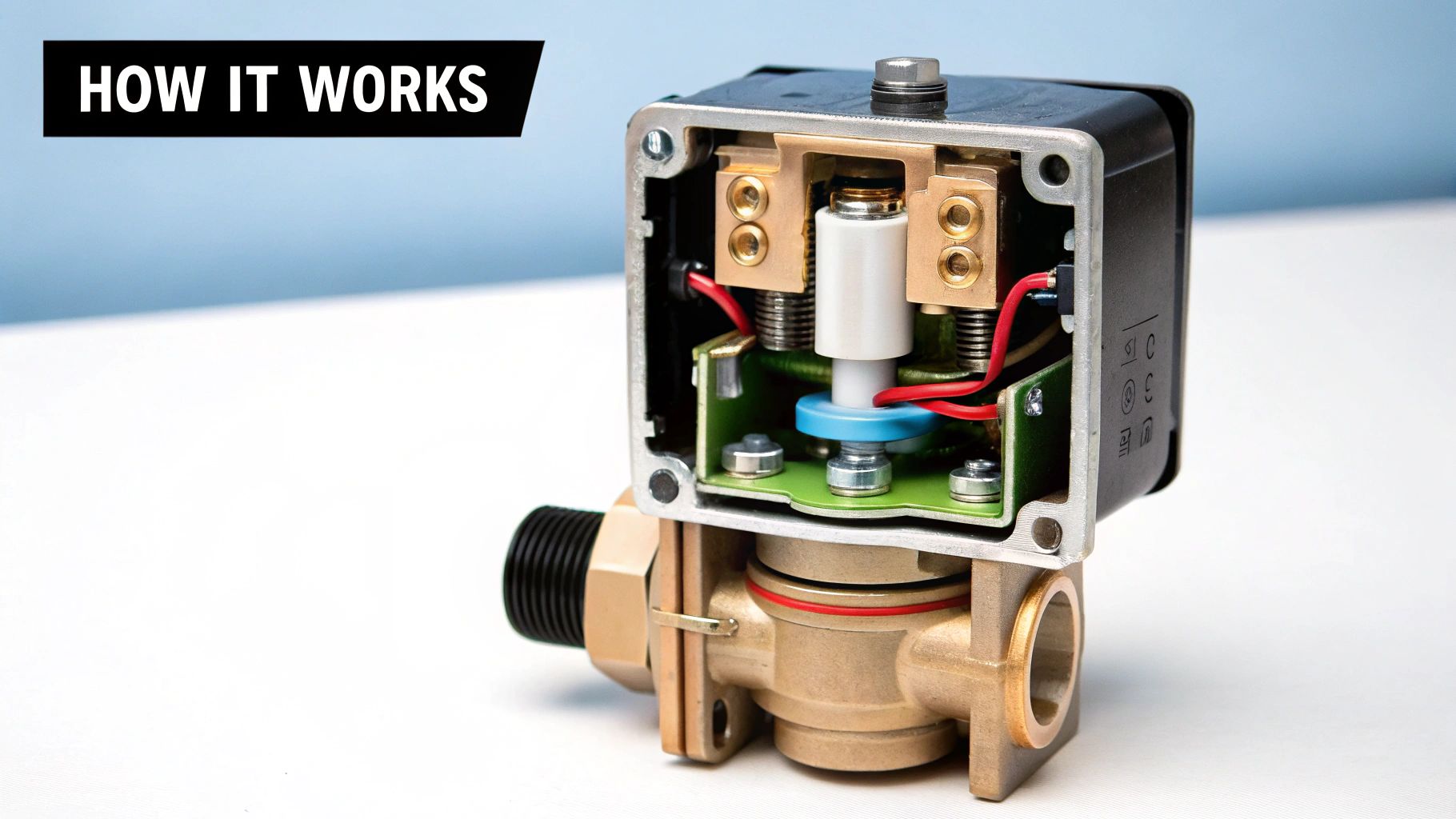

How a Solenoid Valve Works Its Magic

At its heart, a solenoid valve is an automated gatekeeper, turning a simple electrical signal into direct physical action. Think of it as a light switch, but for controlling water flow. When you flip a switch, electricity creates light; when you power a solenoid, it allows water to pass through. It’s this elegant dance between electricity and magnetism that makes these valves so incredibly useful.

The magic happens inside the solenoid itself, which is really just a coil of copper wire wrapped around a hollow tube. When an electric current passes through this coil, it generates a focused and powerful magnetic field.

This magnetic field acts on a small, movable metal core called a plunger (sometimes called an armature) sitting inside the tube. The magnetic force is strong enough to snap the plunger upwards, overcoming the resistance of a small spring. As the plunger moves, it uncovers an opening—the orifice—letting water flow through the valve body.

Cut the power, and the magnetic field vanishes instantly. The spring takes over, pushing the plunger back down to seal the orifice and stop the flow. This entire sequence happens in milliseconds, giving you exceptionally quick and precise control over the water.

Default States: Normally Closed vs. Normally Open

Every solenoid valve for water has a default, or "at-rest," state for when it’s not powered. This is a critical design choice that dictates how the valve behaves when the power is off, which is crucial for safety and system function.

Normally Closed (NC): This is the most common configuration. As the name implies, the valve stays shut when de-energised, preventing water from flowing. You need to apply power to open it. It’s the perfect "off" switch for things like washing machines or garden irrigation systems, where you only need water on demand.
Normally Open (NO): This type does the exact opposite. It stays open without any power, allowing water to flow freely. Applying power closes the valve and stops the flow. This is essential for safety applications like fire sprinkler systems, where you need water to flow even if the power goes out.

Choosing between NC and NO boils down to one simple question: what should happen if the power fails? Do you need the water to stop (NC) or keep flowing (NO)?

Direct-Acting vs. Pilot-Operated Valves

Beyond their default state, solenoid valves are also categorised by how they open and close. This separates them into two main operational types: direct-acting and pilot-operated.

Direct-Acting Valves

In a direct-acting valve, the plunger does all the work. The magnetic force generated by the coil is solely responsible for lifting the seal off the main valve orifice, fighting directly against the full force of the water pressure.

This design is beautifully simple and reliable. It works perfectly even with very low pressures or in a vacuum. The trade-off is that it needs a big, powerful solenoid to handle higher pressures, which generally limits it to smaller pipe sizes and lower-flow applications.

Pilot-Operated Valves

Pilot-operated valves are a much cleverer design for controlling high-pressure and high-flow systems. They essentially use the water pressure as an assistant to do the heavy lifting.

Instead of opening the main orifice, the solenoid only has to open a tiny pilot orifice. This small action releases pressure from above a flexible diaphragm, creating a pressure difference. The higher inlet pressure below the diaphragm then easily pushes it upward, opening the main flow path.

This ingenious design allows a small, energy-efficient coil to control a huge amount of water. In the UK, where industries are always focused on efficiency to meet regulatory pressures and environmental goals, the simple design, low running costs, and fast response times of solenoid valves are particularly valuable. You can learn more about the latest trends in the solenoid valve market to see how they're being used.

Choosing the Right Valve Materials

Picking the right materials for your solenoid valve water system is one of those decisions that separates a reliable, long-lasting setup from one that’s a constant headache. Get it right, and you’ll have years of trouble-free service. Get it wrong, and you’re looking at premature failures, leaks, and costly downtime.

It’s a bit like choosing the right tyres for your car; you need to match the material to the conditions. You wouldn’t put summer tyres on for an icy winter drive, and you shouldn’t use a valve material that can’t handle your water’s temperature or chemical makeup. This comes down to two key parts: the valve body (the main housing) and the seal (the part that makes it watertight).

Valve Body Materials

The valve body is the backbone of the valve, providing the structural integrity and protecting the internal components. Your choice here hinges on the water's properties, the surrounding environment, and of course, your budget.

Here’s a look at the most common options for water systems:

Brass: This is the real workhorse of the solenoid valve world. Brass is tough, affordable, and holds up well against corrosion in most neutral water applications. This makes it a fantastic all-rounder for everything from home irrigation to many industrial processes. However, it’s not the best choice for demineralised water or heavily chlorinated systems, as these can cause dezincification over time.
Stainless Steel: When you simply can't compromise on durability and corrosion resistance, stainless steel is the way to go. It's the champion in aggressive applications like deionised water, reverse osmosis systems, or saline solutions. Yes, it costs more, but that price is easily justified by its incredible longevity in demanding conditions. Think of it as a solid investment for any critical system.
Plastic (Nylon or PVC): Lightweight, budget-friendly, and highly resistant to corrosion, plastic valves are a brilliant choice for low-pressure systems or when dealing with certain chemicals. You'll often find them in irrigation, water treatment, and the food and beverage industry where avoiding metal contamination is key. Their main trade-off is lower pressure and temperature ratings compared to their metal cousins.

For a deeper dive into how these choices affect overall performance, our guide on choosing the right solenoid valve offers more expert insights.

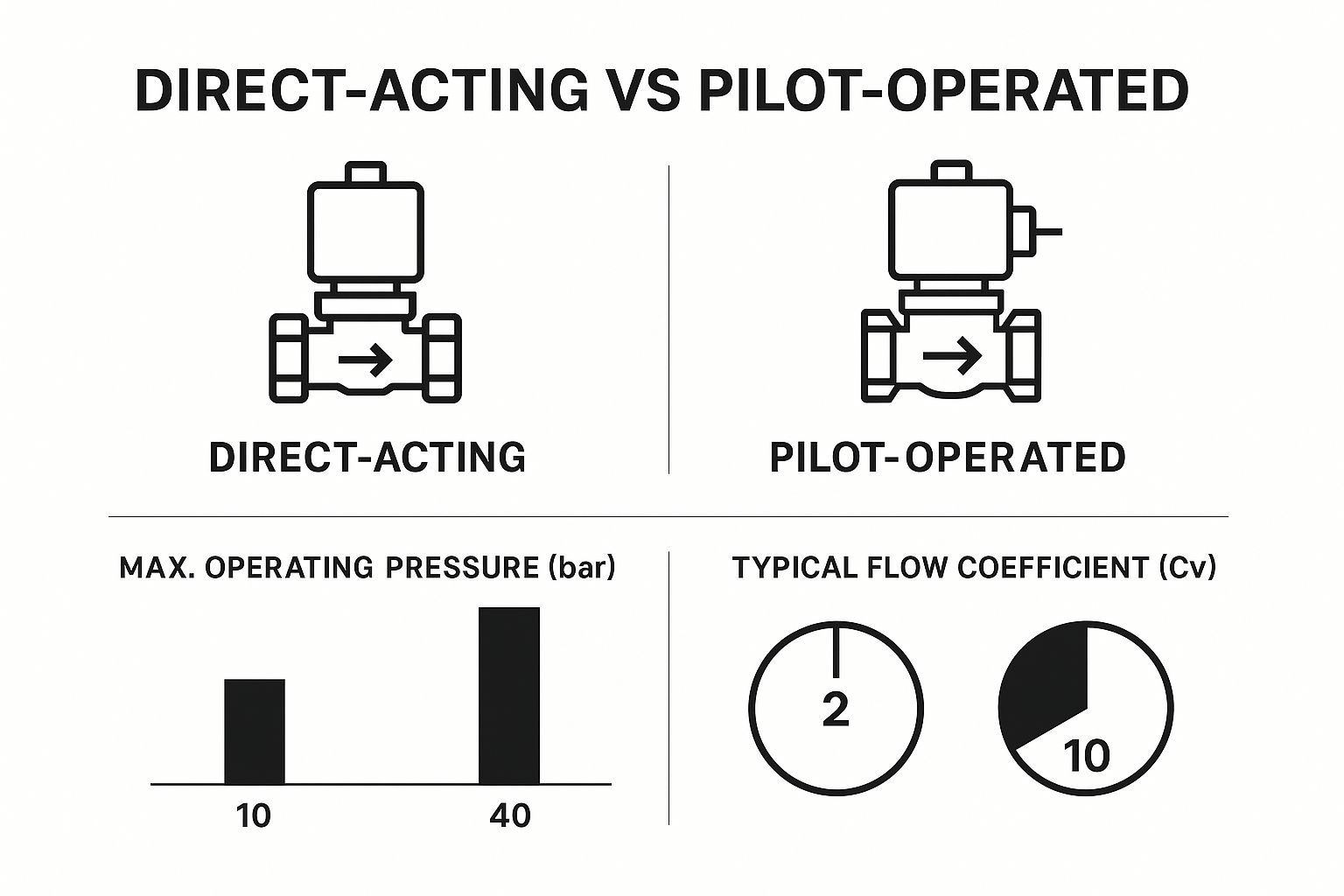

This image below gives a quick visual comparison of how a valve's internal design (direct-acting vs. pilot-operated) influences its ability to handle pressure and flow.

As you can see, pilot-operated designs are built for the heavy lifting in high-pressure, high-flow systems, whereas direct-acting valves are the go-to for simpler, lower-pressure jobs.

Seal Materials

If the valve body is the skeleton, then the seal (or diaphragm) is the muscle that does the crucial work of creating a tight shut-off. This small but mighty component is in constant contact with the water, so its material is every bit as important as the body's. The number one factor to consider here is water temperature. A seal that gets brittle in the cold or too soft in the heat is a seal that’s destined to fail.

Here are the top contenders for water solenoid valve seals:

NBR (Nitrile Rubber): A fantastic general-purpose seal for cold and warm water systems, happy in temperatures up to 80°C. It gives you good resistance to water and oils at a great price point, making it a very common choice. It is not, however, built for hot water or steam.
EPDM (Ethylene Propylene Diene Monomer): This is your go-to material for hot water and steam, handling temperatures up to 120°C (and even higher in some special formulations). It has excellent resistance to heat and weathering, and you'll find WRAS-approved versions are the standard for drinking water systems.
FKM (Viton): While it's often overkill for plain water, FKM is the material you spec when the water contains other aggressive chemicals or when you need to handle high temperatures. It offers superior chemical resistance to both NBR and EPDM but comes with a higher price tag.

Matching Valve Materials to Your Water System

To make the decision easier, here's a quick comparison table to help you match the right materials to your specific water application, keeping the unique challenges of the UK's climate and water types in mind.

Material	Best Use Case	Advantages	Considerations (UK Climate/Water)
Brass	General-purpose neutral water (e.g., mains, irrigation)	Cost-effective, durable, widely available.	Can be susceptible to dezincification in very soft or aggressive water areas.
Stainless Steel	Demineralised/deionised water, high-purity systems, saline solutions.	Superior corrosion resistance, long life, handles high pressure/temp.	Higher initial cost, but a wise investment for critical or aggressive media.
Plastic (PVC/Nylon)	Low-pressure systems, chemically dosed water, food/beverage.	Lightweight, immune to corrosion, affordable.	Lower pressure/temperature limits. Can become brittle in freezing outdoor conditions.
NBR Seal	Cold & warm water systems (< 80°C).	Excellent value, good mechanical properties.	Unsuitable for hot water. Can harden over time, especially with chlorinated water.
EPDM Seal	Hot water & steam systems (> 80°C), drinking water (WRAS approved).	Excellent heat & ozone resistance, long-lasting flexibility.	Not suitable for oils or fats. The default choice for most UK hot water applications.
FKM (Viton) Seal	Water mixed with chemicals, high-temperature applications.	Superior chemical & heat resistance.	Higher cost. Typically specified for industrial processes, not standard plumbing.

By carefully weighing up your options for both the valve body and the seal, you can build a robust water control system that’s perfectly suited to its job, giving you peace of mind and reliable performance for years to come.

How to Size Your Water Solenoid Valve

Choosing the wrong size for your solenoid valve water system is probably the most common—and most costly—mistake we see. It’s not as straightforward as just matching the valve to your pipe diameter. Get it wrong, and you'll run into trouble.

An undersized valve will effectively choke your system, starving it of the flow it needs. Go too big, and you’re looking at inefficiency and potentially destructive problems like water hammer. Getting the size spot on is absolutely vital for performance, safety, and the long-term health of your entire system.

To get this right, we need to forget about the pipe connection for a moment and focus on what the system is actually doing. There are three critical pieces of the puzzle: the flow rate you need, the pressure difference across the valve, and of course, the physical pipe size.

Understanding the Key Sizing Factors

The journey to finding the right valve begins with a clear understanding of your system's demands. This isn't about guesswork; it's about collecting a few key bits of data that will point you directly to the correct component. Nail these, and you'll save yourself a world of headaches later on.

The single most important metric is the flow coefficient, or Cv value.

Think of the Cv value as a measure of the valve's capacity. It tells you how many US gallons of water per minute will pass through it with a pressure drop of just 1 psi. A bigger Cv value means the valve can handle more flow.

Here are the essential parameters you’ll need to pin down:

Flow Rate (Q): How much water actually needs to move through your system? This is usually measured in litres per minute (LPM) or cubic metres per hour (m³/h). A commercial dishwasher might only need 20 LPM, whereas a large-scale cooling circuit in a factory could demand 10 m³/h or more.
Pressure Differential (ΔP): This is simply the difference between the pressure going into the valve (P1) and the pressure coming out (P2). It's the force the valve has to work with. A simple gravity-fed irrigation system will have a tiny pressure differential, while a water main in a high-rise building will have a massive one.
Media Specific Gravity (SG): For our purposes, this is the easy part. The specific gravity of water is 1. While this value is crucial for other fluids, it’s a required constant in the standard sizing formula.

Calculating the Right Cv Value

Once you have these figures, you can work out the required Cv value to specify the right valve. The formula might look a bit intimidating at first, but the concept is simple. It’s a reliable way to connect your system's flow rate and pressure to the exact valve "opening" you need.

The goal is to choose a valve with a Cv value that is either the same as or slightly larger than your calculated requirement. This ensures it can handle your maximum flow without acting as a bottleneck.

Let's run through a practical example. Imagine you’re selecting a solenoid valve for a water line that needs a flow rate of 50 litres per minute. The inlet pressure is 4 bar, and the outlet pressure is 3.5 bar.

Gather Your Data:
- Flow Rate (Q) = 50 LPM
- Pressure Differential (ΔP) = 4 bar - 3.5 bar = 0.5 bar
- Specific Gravity (SG) = 1 (since it's water)
Use the Formula: The standard equation to find the required Cv is: Cv = Q / (60 * √(ΔP/SG))
Calculate: Plugging in our numbers, we get: Cv = 50 / (60 * √(0.5/1)) This gives us a required Cv of approximately 1.18.

Armed with this number, you can confidently browse technical datasheets and select a valve with a Cv rating of 1.2 or just above.

Other Critical Selection Criteria

While the Cv value is your north star for sizing, it isn’t the only thing you need to check. The valve also has to be compatible with your system's electrical setup and meet any local regulations.

Voltage and Power (AC/DC): Make sure the valve's coil voltage is a perfect match for your power supply. This could be 24V DC for industrial automation systems or 230V AC for equipment running on mains power.
WRAS Approval: This is non-negotiable for any application involving drinking water in the UK. The valve must be WRAS (Water Regulations Advisory Scheme) approved. This certification is your guarantee that the materials used are safe and won't leach contaminants into the water supply.

Proper Installation and Maintenance

A high-quality solenoid valve for water is a fantastic bit of kit, but its real-world performance and lifespan hinge entirely on proper installation and a little bit of ongoing care. Getting the setup right from day one prevents a world of immediate problems, while a simple maintenance routine can guarantee years of reliable service. Think of it as protecting your investment; a few careful steps now will save you from major headaches and costs later.

Even the best valve is only as good as its installation. Nailing this part is non-negotiable if you want your system to run smoothly and reliably. It's the small details here that make all the difference.

The Non-Negotiables of Installation

Before you even touch a wire, there are a few fundamental mechanical steps you absolutely must get right. These practices are designed to protect the valve's delicate internal components and ensure it can do its job properly. Skipping them is one of the most common reasons for a valve to fail prematurely.

Here are the critical points to get right:

Verify Flow Direction: Look closely at the valve body. You'll see an arrow stamped or embossed on it. This arrow must point in the direction the water will be flowing. Installing a valve backwards, especially a pilot-operated one, is a sure-fire way to cause it to malfunction.
Mount It Correctly: The gold standard for mounting is with the solenoid coil pointing straight up. This vertical orientation lets the internal plunger move freely without gravity fighting against it, which can cause sticking or uneven wear over time. While some valves can be mounted horizontally, vertical is always the best choice.
Install an Upstream Filter: Honestly, this might be the single most important thing you can do to protect your valve. A simple mesh filter or strainer, installed just before the valve, will catch any debris, rust, or bits of sediment floating in the pipework. These particles are the number one enemy of a solenoid valve.

The internal passages of a solenoid valve, particularly the pilot orifice in a pilot-operated model, are incredibly small. Even a tiny piece of grit can be enough to hold the valve open, causing a persistent and wasteful leak.

For a more detailed walkthrough, our comprehensive guide on solenoid valve installation and maintenance instructions offers a deeper dive into these best practices.

A Simple Maintenance Checklist

Regular check-ups are the secret to getting the maximum possible life out of your solenoid valve. You don't need to be an engineer to spot the early warning signs of trouble. A quick look-over now and then can help you catch small issues before they become big, system-stopping failures.

We recommend running through this simple checklist every few months—or more often for critical systems:

Listen for Buzzing or Humming: A healthy, happy solenoid coil should be almost silent. If you hear a loud buzzing, it often points to an electrical problem, like the wrong voltage or a coil that's on its way out.
Check for Leaks: Have a good look around the valve body and pipe connections for any dampness. Even a tiny drip can signal a worn seal or a loose fitting that needs attention.
Observe Valve Operation: From time to time, just watch the valve to make sure it's opening and closing crisply when you apply and remove power. If it seems sluggish, it could be a sign of internal friction or a build-up of debris.
Clean the Upstream Filter: Make cleaning the strainer or filter a regular part of your routine. If it gets clogged, it will starve the valve of pressure and hurt your system's performance.

By following these straightforward installation and maintenance steps, you ensure your solenoid valve water system operates at peak efficiency, giving you the reliable, automated control you depend on.

Why Solenoid Valves Are More Important Than Ever

The humble solenoid valve might not get much attention, but it’s quietly become a vital component in solving some of the UK’s biggest challenges. As we push harder for sustainability and automation, the ability to control water with precision isn't a luxury anymore—it's a fundamental need. This shift is turning the solenoid valve for water from a simple part into a cornerstone of modern, efficient systems.

Think about the drive for a greener future. It all comes down to managing resources like water and energy with absolute accuracy. In agriculture, automated irrigation systems use these valves to send water straight to the plant roots, slashing waste. In factories, they're the brains behind closed-loop cooling systems and manufacturing processes that sip water and energy, helping businesses hit both their environmental and financial targets.

At its heart, the rising importance of the solenoid valve is a story about doing more with less. By giving us instant, automated control over water, these devices are making our industries smarter, more efficient, and more sustainable.

This isn't just a fleeting trend. The market data tells a clear story. The UK solenoid valve industry is projected to grow at a Compound Annual Growth Rate (CAGR) of 4.3% between 2025 and 2035. A huge part of this growth is fuelled by the national focus on sustainability, particularly within the water treatment sector. You can dig deeper into these solenoid valve market projections to see the forces behind this expansion.

The Rise of Smart and Automated Systems

Beyond heavy industry, solenoid valves are the unsung heroes powering the automated systems we rely on every single day. They're the key to smart buildings that manage water consumption, advanced water treatment plants that keep our water safe, and even green energy systems that need precise fluid control to function.

This technology has also found its way into our homes and workplaces, making life that little bit easier. Beyond industrial use, solenoid valves are essential in modern consumer products, providing the precise water control in everything from washing machines to the best automated office coffee machines. Every time that machine pours the perfect shot, a solenoid valve is likely doing the heavy lifting.

From massive industrial plants to the small conveniences that smooth out our day, these components are everywhere. The real takeaway is this: getting to grips with solenoid valve technology is no longer just for plumbers or engineers. It's about being part of a future that is more automated, efficient, and sustainable. As technology moves forward, the demand for these smart, reliable gatekeepers will only get stronger across every part of the UK economy.

Frequently Asked Questions

Even after you get your head around the basics of a solenoid valve for water, a few practical questions always seem to pop up. Whether you're selecting a new valve, installing one on-site, or just doing your daily checks, some queries come up time and time again.

This section is all about giving you clear, straightforward answers to the questions we hear most often. We want to help you sort out common problems, clear up any confusion, and make you feel completely confident when working with these vital components.

Can a Solenoid Valve Control Water Flow Rate?

This is probably one of the most common misunderstandings we encounter. A standard solenoid valve is a simple on/off device. Think of it like a light switch – it's either fully open, letting water through, or fully closed, stopping it completely. It can't be used to fine-tune or throttle the amount of water passing through.

If you do need that level of variable control, what you're looking for is a proportional solenoid valve. These are more specialised units that can adjust the opening size based on the voltage you send them, giving you precise command over the flow rate.

What Happens If I Install My Valve Backwards?

Putting a solenoid valve in backwards is a serious mistake, especially with pilot-operated models. There's a reason the valve body has a big arrow stamped on it – that's the direction the water needs to flow.

If you install a pilot-operated valve the wrong way, it will almost certainly fail to close. It needs the pressure from the inlet to push down and create a tight seal. A direct-acting valve might still work after a fashion, but it will be fighting against its own design, putting a huge strain on the internal parts. Always, always follow the flow arrow.

A buzzing or humming noise from the coil is often the first sign of trouble. While a faint hum can be normal, a loud, noticeable buzz usually indicates an issue.

There are a few usual suspects when a coil gets noisy:

Incorrect Voltage: You can't just send any old voltage to the coil. If you supply a 24V coil with 30V, for instance, it's going to overheat and protest with a loud buzz.
Debris in the Valve: It only takes a tiny speck of grit to stop the plunger from seating correctly. When that happens, the coil can start to vibrate and hum.
Low System Pressure: Pilot-operated valves need a minimum pressure difference to work. If the inlet pressure is too low, the valve might "chatter" or buzz as it struggles to stay fully open or closed.

How Long Does a Water Solenoid Valve Last?

That’s the million-dollar question! The lifespan of a solenoid valve depends massively on a few key things. But a good quality valve, chosen well and installed correctly, can easily last for millions of cycles.

The biggest factors are the job it's doing, the quality of the water, and how often it's working. A valve in a clean, filtered water system that only opens a few times a day will outlive a valve in an unfiltered line that’s firing every few seconds. If you want to get the most out of your valve, the single best thing you can do is stick a filter upstream of it. Protecting it from dirt and debris is the key to a long and happy service life.
