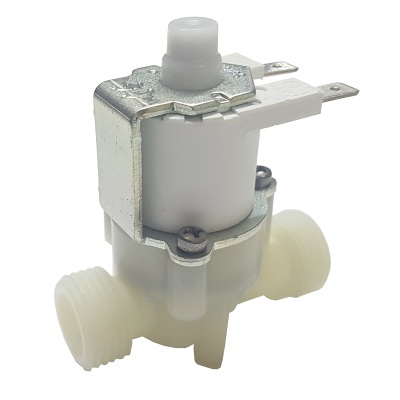

3/8 Plastic water solenoid valve 0.2-10 Bar 2/2 Latching 6vDC (1196BB)

£40.39

£48.82 incl. VAT
£33.66 ex. VAT

Brand: RPE srl

Model: 1196BB

Stock: 97 in stock

Read Full Description

Description

3/8 Plastic latching / bi-stable water solenoid valve WRAS approved RPE Mini R
Function: 2/2 way latching / bi-stable (20 millisecond pulse)
Operation: Pressure assisted (Requires Min 0.2 Bar pressure difference)
Port: 3/8 inch quick connect / speed push fit.
Pressure: 0.2 to 10 Bar
Orifice: 11.0mm
Kv flow factor: 27.07 L/Min, based on water with 1 Bar pressure difference.
Body: Nylon white good grade GF
Coil: R 2.25 Watts IP00 with 6.3x0.8mm faston tags
Voltage: 6vDC (375mAmp 15 to 20 millisecond pulse), will accept 9 volt and 12 volt with shorter pulse.

Approvals: WRAS, KTW and DM174 for drinking water production, transfer and storage, ACS health compliance certificate, ENEC European Norms Electrical Certification, CSV (European Union Aviation Safety Agency), MOCA FCM (Food Contact Materials), NSF food certification for public health protection and option for UL Underwriter Laboratories certified.

This RPE R Mini 119 solenoid valve requires short (15mSec) low power pulse to stay open and then a short reverse polarity (15 20 millisecond) power pulse to cancel the internal magnet for the valve to close thus reducing the power required.
Repeating this process to open and close.

Technical Specification

Brand: RPE srl

Model: 1196BB

Width: 38.50 mm

Height: 72.22 mm

Depth: 65.30 mm

Weight: 0.20 kg

Valve / Product Type: Solenoid

Body Material: Nylon

Voltage: 6vDC

Port Size: 3/8 Push Fit

Function: 2/2 Latching

Operation: Assisted Lift

Pressure Maximum: 2 Bar, 2.5 Bar, 3 Bar, 3.5 Bar, 4 Bar, 4.5 Bar, 5 Bar, 5.5 Bar, 6 Bar, 6.5 Bar, 7 Bar, 7.5 Bar, 8 Bar, 8.5 Bar, 9 Bar, 10 Bar

Seals: NBR

Approvals: IPX0 (Faston Tag), WRAS

Media: Water

Options required: Anti Water Hammer, Mounting Holes

Orifice: 11mm
