Dust, Coalescing and Carbon Air Filters Type YD
Premium Filtration for Industrial-Grade Air Purity
The YD filter range includes Coarse Pre-Filtration 5μm, General Protection 1μm, High-Efficiency Oil Removal 0.01μm and Ultra High-Efficiency Filtration 0.01μm, 99.99%, Oil Vapour Reduction.

Why Choose YD Air Filters?
Advanced Engineering Meets Industry Needs
The YD Series compressed air filters are engineered to deliver world-class filtration performance, ensuring clean, reliable air across industrial applications.
Designed for 16 bar (232 psig) systems, these filters remove contaminants like dust, oil vapour, water droplets, and microorganisms meeting or exceeding ISO 8573-1 air quality standards.
In-House Expertise & Testing
Manufacturers collaborate with top-tier universities and filter media suppliers to design and rigorously test all products. Filters undergo:
Filtration performance tests
Air tightness evaluations
Corrosion resistance testing
Certifications including ISO 8573, ISO 12500, and PED compliance
Full In-House Production
From filter housing to filter elements, everything is manufactured under strict quality controls using state-of-the-art automated lines. This ensures consistency, durability, and peak performance.

Corrosion protection
The housings are protected by cataphoresis anti corrosion treatment and allows filters worked in strong corrosive working condition such as offshore platform.

Compressed air threaded
Connection thread can be processed into BSPT or NPT standard.

Differential pressure indicator/gauge
Provide a visual reading of the pressure on the inlet versus the outlet side

Liquid sight glass
Fitted on filter housing to check the condensate level. It is easy to see the working status of auto drain.

Internal auto drain
It’s used for flow rate lower than 7.2 m3/min. Effectively removes condensate without loss of air, saving energy.

External auto drain
Inside designed float ball, which reliably removes condensate without need for electricity.
Product Range & Filtration Grades
Filter Element Grades for Every Application
Key Filter Types
PF – Coarse Pre-Filtration (5 μm)
AO – General Protection (1 μm)
AA – High-Efficiency Oil Removal (0.01 μm)
AX – Ultra High-Efficiency Filtration (0.01 μm, 99.99%)
ACS – Oil Vapour Reduction
AR – Dust Removal After Adsorption Dryer
AAR – Fine Dust Removal After Adsorption Dryer
Technical Features of Connexion YD Series
Built to Withstand Harsh Conditions
Filter Housing and Drain Features
Die-cast housing with anti-corrosion coating
Internal float drain (for ≤ 7.2 m³/min flow)
External float drain with no electrical need
Sight glass for visual condensate checks
Thread types: BSPT or NPT
Differential pressure gauge included
Exceptional Filter Media
Hydrophobic and oleophobic borosilicate fibres
Stainless steel inner/outer support layers
UV and chemical-resistant reinforced polyamide end caps
Low pressure drop = energy savings

Applications & Benefits
Industries That Trust Connexion
The YD Series is ideal for industries requiring high air purity:
Food & Beverage
Pharmaceuticals
Electronics
Aerospace
Chemical Processing
Automotive Manufacturing
Typical Uses
PET bottle blowing
Semiconductor manufacturing
Spray painting
Air motor operations
Tablet coating
Laser cutting
Key Advantages
ISO-class filtration for air, oil, and water contaminants
Reduced downtime and maintenance
Low operational costs with long service life
Flow rates from 1.0 to 37.2 m³/min
Product Selector & Model Specifications

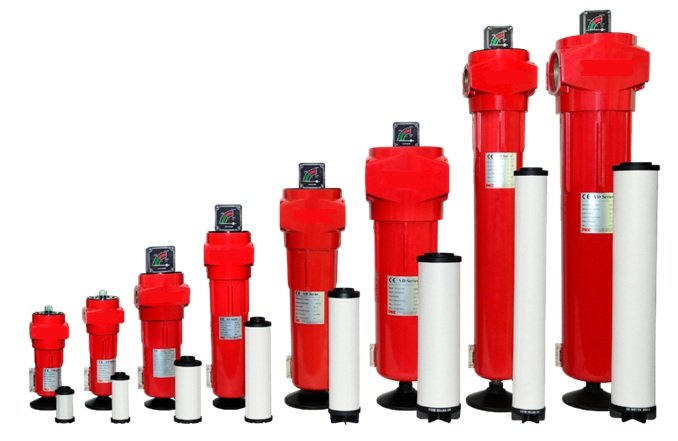

Choose from 15 housing sizes to match your flow rate:

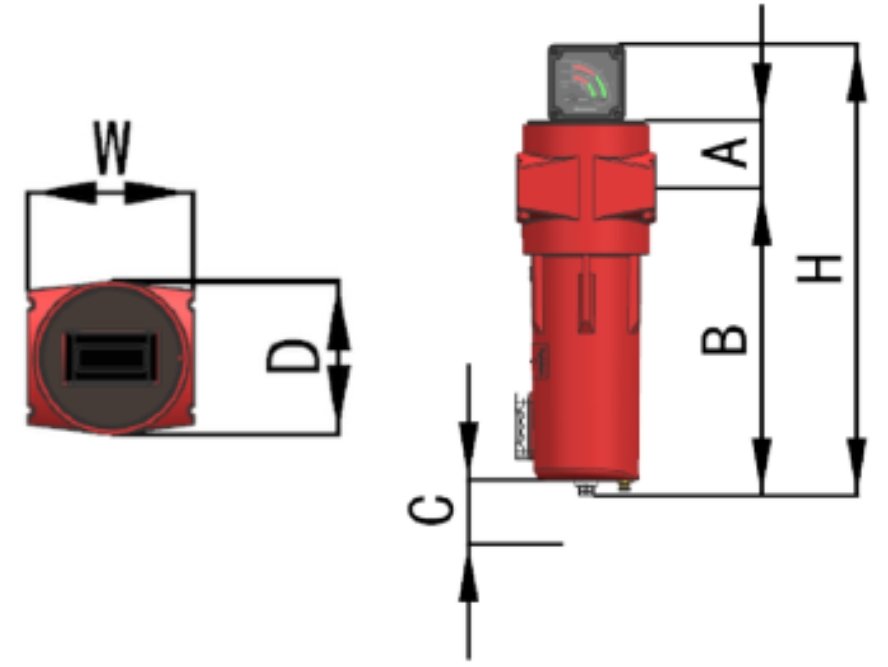

Model | Inlet/Outlet | Flow (L/S) | Nm³/min | Scfm | Width (W) | Depth (D) | Height (H) | A | B | C (space) |
---|---|---|---|---|---|---|---|---|---|---|
YD017 | 1/2" | 16.7 | 1.0 | 35.3 | 89 | 79 | 252 | 40 | 192 | 118 |
YD025 | 3/4" | 25.0 | 1.5 | 53.0 | 89 | 79 | 252 | 40 | 192 | 118 |
YD030 | 1/2" | 30.0 | 1.8 | 63.6 | 89 | 79 | 285 | 40 | 226 | 158 |
YD035 | 3/4" | 33.3 | 2.0 | 70.6 | 89 | 79 | 285 | 40 | 226 | 158 |
YD058 | 3/4" | 46.7 | 2.8 | 98.9 | 120 | 110 | 406 | 55 | 281 | 195 |
YD068 | 1" | 60.0 | 3.6 | 127.1 | 120 | 110 | 406 | 55 | 281 | 195 |
YD080 | 1" | 80.0 | 4.8 | 169.5 | 120 | 110 | 508 | 55 | 383 | 290 |
YD145 | 1-1/2" | 120.0 | 7.2 | 254.2 | 120 | 110 | 508 | 55 | 383 | 290 |
YD220 | 2" | 200.0 | 12.0 | 423.7 | 162 | 151 | 737 | 64 | 566 | 480 |
YD260 | 2-1/2" | 233.3 | 14.0 | 494.4 | 162 | 151 | 737 | 64 | 566 | 480 |
YD330 | 2" | 267.2 | 16.0 | 564.8 | 162 | 151 | 984 | 64 | 875 | 780 |
YD360 | 2-1/2" | 317.3 | 19.0 | 670.7 | 162 | 151 | 984 | 64 | 875 | 780 |
YD405 | 2-1/2" | 367.4 | 22.0 | 776.6 | 200 | 189 | 757 | 78 | 634 | 560 |
YD430 | 3" | 467.6 | 28.0 | 988.4 | 200 | 189 | 757 | 78 | 634 | 560 |
YD620 | 3" | 620.0 | 37.2 | 1313.6 | 200 | 189 | 1012 | 78 | 889 | 780 |

Quality Certifications
All Connexion YD Series filters meet the following:
ISO 8573-1: Compressed Air Purity Standards
ISO 12500: Filtration Performance Test Methods
PED 97/23/EC: Pressure Equipment Compliance
ISO 9001: Quality Management
Ready to Upgrade Your Compressed Air System?
Whether you're optimising existing equipment or designing a new facility, Connexion YD Series filters deliver unmatched performance and reliability.
Contact us today to learn more or to get help selecting the right model.
