FRL Air Preparation Units | Filters Regulators Lubricators

Valve / Product Type

Air Actuated Valve

air actuated valves that utilise a compressed air supply to operate.

AirLine Fittings + Tube

compressed air line tubing and push to connect fittings

Condensate drain

Filters Regulators & Oilers

Air pressure regulator with air filter with air lubrication system. Provides stable outlet pressure whilst removing debris and 90% moisture the finally providing oil mist to lubricate downstream equipment.

Manual + Mechanical Control

Air valves that are controlled manually and mechanically

Pressure Switch / Transmitter

Pressure switches and pressure transmitters

Pressure Reducing

Pressure reducing valves (PRV) reduce and maintain stable outlet pressure

Proportional Modulating

Flow regulating valves with manual or electric modulating 4-20mA control.

Safety Shut Off

Safety shut off isolation valve, shuts off and secures air line systems, will vent downstream air when closed.

Port Size

Media

Body Material

Function

3/2 Normally Closed

3 ports with 2 positions. Power off inlet closed, outlet open to exhaust - power on inlet open to outlet with exhaust closed.

4/2 Way

A 4/2 way valve has four ports and two positions. It controls the direction of flow by switching between two paths in a pneumatic or hydraulic system.

4/3 Way

A 4/3 way valve has four ports and three positions. It controls the direction of flow by switching between two paths in a pneumatic or hydraulic system with third option all ports closed.

Proportional / Modulating

Valve opens proportionally according to signal input, either 4-20mA, 0-10v or 0-5 volt. Example 4mA valve closed, 8mA 25% open, 12mA 50% open, 18mA 75% open and 20mA fully open.

Pressure

Seals

FKM (Viton)

FKM Fluoro elastomer (Fluorocarbon) Viton® Dupont registered, known as Tecnoflon, Fluorel, Dai-El. Good for hot water, acid, alkali, oils, hydrocarbons and salt solutions, many aggressive chemicals, diluted acids, weak alkali's, mineral oils, aliphatic and aromatic hydrocarbons, chlorinated hydrocarbons, sunlight and ozone. -26°C to +205°C. Poor resistance to Ketone's and Acetone.

NBR

NBR (Nitrile Buna Rubber) known as Nitrile Butadine, Buna-N, Hycar, Chemigum, Butakon, Breaon, Butacril, Paracil, Nipol, Perbunan, Krynac or Europrene-N. Good for Aliphatic Hydrocarbons, Petroleum, Fuels, Mineral Oil, Vegetable and Hydraulic Oil, Alcohol and many Acids. -35°C to +100°C. Poor for Ozone, Acetone, Methyl ethyl Ketone, Chlorinated Hydrocarbons, Ethers and Esters.

PTFE (Teflon)

PTFE (Polytetrafluoroethylene) also known as Teflon® Dupont registered. Excellent resistance to almost every fluid or gas. -200°C to +230°C

Voltage

Approval: ATEX,WRAS,IP etc

ATEX Exm

ATEX Protection by encapsulation ll 2 G Ex mb ll T4 Gb and ll 2 D Ex tb IIIC T130°C Db IP65

IP65

Dust tight and protected against water jets

EN12021 Breathing Air

EN12021 approval certifies compressed air quality for breathing apparatus, ensuring it meets safety standards for human respiratory use.

FDA

FDA approval is the process by which the Food and Drug Administration evaluates and authorizes the marketing of new drugs, medical devices, and biologics for safety and efficacy.

NACE MR-01-75.

Operation

Direct Acting

Directly controls flow without external pressure assistance operates from vacuum upwards.

Pressure Assisted

Operate via pilot pressure control and require a minimum pressure difference between inlet and outlet from 0.5 Bar.

Options required

Flow Control

Flow regulation to control the amount of flow.

Manual Control

Valves that require manual input to operate such as lever, button or switch

Mounting Bracket

Valve has the facility to be supplied with a bracket for mounting and securing.

Mounting Holes

Supplied with additional threaded holes typically in the base, typically for securing to a baseplate.

Panel Mount

Valve is designed to be mounted and secured into an instrument panel

Position Feedback Closed

The valve is equipped with an additional volt free electrical switch that is triggered when the valve is mechanically closed.

Position Feedback Open+Closed

The valve is equipped with two additional volt free electrical switches that are triggered when the valve is mechanically closed or open position.

Position indication Visual

The valve is equipped with clear cover or dome under which an arrow or flag can be seen to confirm either the open and or closed position of the valve.

Y Pattern

A Y-pattern valve is a valve with a Y-shaped body design, typically used for high-pressure applications to reduce pressure drop and turbulence, often found in steam systems.

Spares (Coils, Connectors, Seals)

Only Show Items In Stock

Hide spare parts

FRL Air Filters Regulators Lubricators

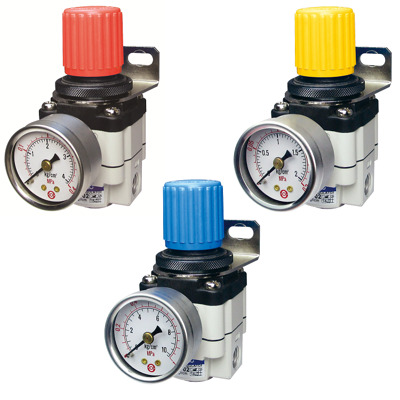

Air Regulators

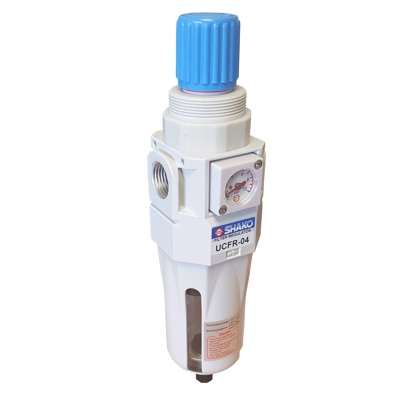

Air Filter Regulators

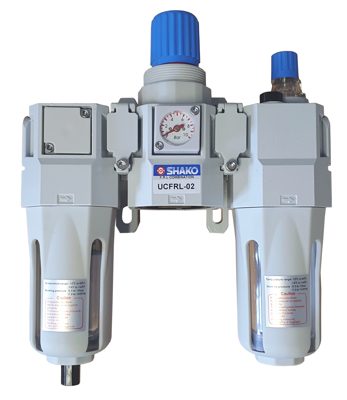

Filter Regulator Lubricator Sets

Stainless Steel FRL Units

FRL Spares

Filters

115 IN STOCK

75 IN STOCK

45 IN STOCK

52 IN STOCK

242 IN STOCK

53 IN STOCK

91 IN STOCK

7 IN STOCK

90 IN STOCK

26 IN STOCK

24 IN STOCK

6 IN STOCK

49 IN STOCK

12 IN STOCK

51 IN STOCK

49 IN STOCK

127 IN STOCK

35 IN STOCK

25 IN STOCK
