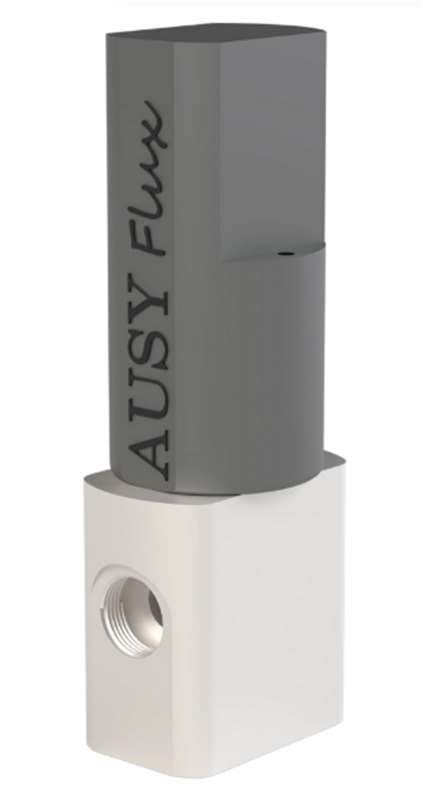

Proportional Control Valve DN20 – 416 Bar
Motorised Proportional Valve | AUSYFLUX DN20-416
The AUSYFLUX DN20 proportional control valve is the largest model in the compact range, designed for high flow applications requiring precise control under high pressure conditions.
With pressure capability up to 416 bar and a robust stainless steel construction, this motorised proportional valve is ideal for industrial systems where both flow capacity and control accuracy are critical.
Why choose the AUSYFLUX DN20 proportional valve?
→ Pressure rating up to 416 bar
→ High flow proportional control
→ Full modulation from 0–100%
→ Stepper motor actuator
→ Control signal 4–20mA or 0–10V
→ Stainless steel body construction
→ Heavy-duty design (approx. 3kg)
→ Free UK delivery available
High flow proportional control for demanding systems
The DN20 model is engineered for applications requiring maximum flow within a compact proportional valve format.
→ High flow capacity (Kv up to 30)
→ Smooth progressive opening reduces pressure shock
→ Stable modulation across full operating range
→ Designed for continuous and precise control
Performance includes 2.5% hysteresis, 0.5% sensitivity, and 1% repeatability
High pressure capability – up to 416 bar
Designed for demanding industrial environments:
→ Pressure range: 0 to 416 bar
→ Suitable for high-pressure fluid and gas systems
→ Reliable performance under varying load conditions
Key technical specifications
→ Nominal size: DN0–20
→ Kv flow: up to 30
→ Pressure range: 0–416 bar
→ Port connection: 3/4" G (NPT optional)
→ Body material: stainless steel
→ Weight: approx. 3000g
→ Mounting: any position
Electrical and control interface
→ Motor type: stepper motor
→ Supply voltage: 24V DC (12V optional)
→ Control signal: 4–20mA / 0–10V
→ Adjustment range: 0–100%
Suitable for integration into automated and PLC-controlled systems.
Media compatibility
Suitable for a wide range of industrial media:
→ Air
→ Water
→ Fuels
→ Hydrogen
→ Nitrogen
Adaptable across varying operating conditions and applications
Temperature and operating limits
→ Media temperature: up to 100°C
→ Ambient temperature: -20°C to +60°C
→ Max viscosity: 40 cSt
Typical applications
→ Industrial process control
→ High flow gas systems
→ Automation and control systems
→ Test and calibration rigs
→ Hydrogen and specialist gas handling
→ Engineering and laboratory systems
Largest compact proportional valve in the range
The DN20 model represents the upper limit of the compact AUSYFLUX proportional valve range.
Compared to smaller models:
→ DN1 → ultra high pressure / low flow
→ DN6 → mid flow
→ DN12 → high flow
→ DN20 → maximum flow (compact range)
For applications requiring even larger sizes or specialist performance, see our high-performance proportional control valves (DN25 and above).
Need help selecting the right valve?
Our technical team can assist with:
→ Flow and pressure sizing
→ Control integration
→ Media compatibility
→ System design
Contact us for expert advice on proportional control valves.
Email Technical Team Call +44 (0)1454 334 990
| Model | DN Range | Max Pressure | Flow (Kv) | Port Size | Weight | Best Use |
|---|---|---|---|---|---|---|
| DN1 | 0–1 | 1000 bar | up to 0.5 | 1/4" | 0.5 kg | Ultra high pressure, low flow, test systems |
| DN6 | 0–6 | 416 bar | up to 5 | 1/4" | 0.5 kg | General industrial control |
| DN12 | 0–12 | 416 bar | up to 30 | 3/8"–1/2" | 0.8 kg | Higher flow systems |
| DN20 | 0–20 | 416 bar | up to 30 | 3/4" | 3.0 kg | Maximum flow (compact range) |
| DN25 | 25 | 200 bar | High (process level) | Flanged / industrial | ~32 kg | Process systems / heavy duty |
| DN40 | 40 | 200 bar | Very high | Flanged / industrial | ~35 kg | High flow + system control |
