DN32-50 Flange Steam Solenoid Valve 10 Bar Normally Closed

Name: DN32-50 Flange Steam Solenoid Valve 10 Bar Normally Closed
Brand: Shako Co Ltd
SKU: PU22512SF,PU22514SF,PU22520SF
Price: 631.67 GBP
Availability: OutOfStock

£631.67 incl. VAT -35%

£526.39 ex. VAT

Was ~~£971.80~~ incl. VAT

Valve Size

Flange Type PN16, ANSI150Lb or JIS10K

Coil

Voltage

Add To Cart

Brand: Shako Co Ltd

Model: PU225SF1220

Add to your wishlist

Read Full Description

Description

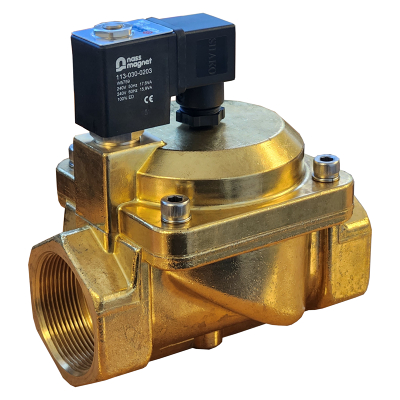

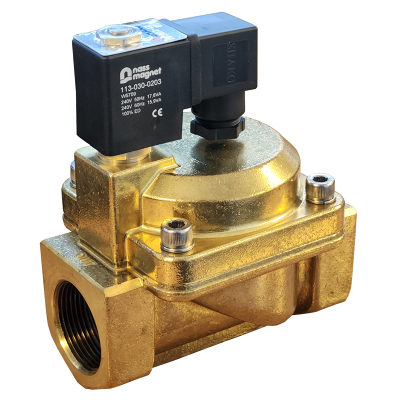

Flanged Brass Steam Solenoid Valve – Shako PU225SF-12 to PU225SF-20

A high-capacity pressure-assisted 2/2 way normally closed brass steam solenoid valve range designed for steam distribution, boiler systems and industrial heating applications. Available with DN32, DN40 and DN50 flanged connections, the PU225SF series combines a forged brass body, stainless steel internals and PTFE sealing for reliable operation on steam and high-temperature media up to +180°C.

Valve Function & Operation

Function: 2/2 way normally closed

Operation: Pressure assisted piston design

Minimum operating pressure: 0.5 Bar differential

Port sizes:

DN32 (PU225SF-12)

DN40 (PU225SF-14)

DN50 (PU225SF-20)

Flange standard: PN16

Optional flanges: ANSI 150Lb or JIS 10K

Pressure & Flow

Steam pressure: 0.5 to 10 Bar

Air, water and compatible fluids: 0.5 to 15 Bar

Proof pressure: 15 Bar

Orifice sizes:

40.0 mm (DN32 & DN40)

50.0 mm (DN50)

Kv flow factor:

498 L/min (DN32)

542 L/min (DN40)

888 L/min (DN50)

Based on water with 1 Bar pressure drop.

Construction & Materials

Body: Forged brass

Internals: Stainless steel (SUS304)

Piston design for reliable steam service

Seal material: PTFE

Media Compatibility

Suitable for:

Steam

Hot water

Air

Water

Non-aggressive fluids up to 50 CST

Compatible gases

Temperature Limits

Media temperature: -5°C to +180°C (Class H coil)

Ambient temperature: -20°C to +60°C

Installation: Horizontal mounting recommended

Coil & Electrical

Coil: Nass Magnet

Power consumption:

15 Watt DC

17.6 VA (110V AC)

18.1 VA (220V AC)

Connector: DIN 43650A

Insulation class: Class H

Duty cycle: 100% continuous rated

Protection rating: IP65 with connector fitted

Connector included.

Voltage Options

DC: 12V, 24V, 48V, 110V or 220V

AC: 12V, 24V, 48V, 110V, 230V or 380V (50/60 Hz)

Hazardous Area Option

ATEX Ex mb IIC T4

Temperature class: T4 (T130°C)

Certification:

Ex mb IIC T4 Gb
Ex mb tb IIIC T130°C Db

Suitable for Zones 21 & 22 hazardous areas.

Benefits

Designed specifically for steam service

PTFE sealing for high-temperature applications

Flanged connections for industrial pipework

Very high flow capacity

Reliable piston-assisted operation

Long service life

Suitable for continuous-duty operation

Free UK delivery available

Typical Applications

Steam distribution and isolation

Industrial heating and boiler systems

Process plant utilities

Food and beverage processing

Chemical processing equipment

High-temperature fluid and gas control

Large-scale steam services

Related Products & Categories

Steam Solenoid Valves

Brass Solenoid Valves

Pneumatic Angle Seat Piston Valves

Solenoid Spares: Seals, Coils & Connectors

Technical Specification

Brand: Shako Co Ltd

Model: PU225SF1220

Width: 96.00 mm

Height: 205.10 mm

Depth: 180.00 mm

Weight: 3.13 kg

Valve / Product Type: Solenoid Valve

Body Material: Brass

Voltage: 110vAC, 110vDC, 12vDC, 200vDC, 230VAC, 24vAC, 24vDC, 380vAC, 48vAC, 48vDC

Port Size: 11/4 inch Flange DN32, 11/2 inch Flange DN40, 2 inch Flange DN50

Function: 2/2 Failsafe Closed

Operation: Pressure Assisted

Pressure: 5 Bar, 5.5 Bar, 6 Bar, 6.5 Bar, 7 Bar, 7.5 Bar, 8 Bar, 8.5 Bar, 9 Bar, 10 Bar, 12 Bar, 13 Bar, 14 Bar, 15 Bar

Seals: PTFE (Teflon)

Approvals:: ATEX Exm, IP65

Media: Air, Fluid (Non Aggressive), Gases (Non Aggressive), Oils + Fuels 50cSt Max, Steam, Water

Orifice: 30mm, 32mm, 50mm
