Septic Treatment System Using Compressed Air Aeration
While many UK septic systems use electric mechanical aerators, some models explicitly use diffused compressed-air bio-aeration:
Klargester (Kingspan Environmental)
Models such as the Xeros/EnviroSmart (formerly Solido/Lilac) and Solido LA units optionally use a blower+diffuser setup to aerate the biological treatment tank.
Kingspan Water & Energy
The BioZap & BioWall packaged sewage treatment plants integrate blower-driven aeration systems similar to compressed air designs.
Biorock (Clearwater UK)
Using fine-bubble diffused aeration, they include an air pump (blower) in their system to supply oxygen to the treatment chamber.
Envirotank
Offers compact packaged systems with blower-based aeration, essentially compressed air fed through diffuser membranes.
Choosing Your System
1. Airflow Demand
Choose a pump that meets the oxygen needs of your aerobic biomass. A domestic system (~2–4 L/min) may only need the ETA 60, whereas larger designs (e.g. Biorock or Kingspan BioZap) require ≥ 8–15 L/min pumps like the ET80+ or Enviro150.
2. Duty Cycle & Power
Pumps like the Hi‑Blow HP 80 are designed for continuous duty (24/7), while smaller units may not be rated for extended use.
3. Installation & Support
Brands like Klargester and Kingspan provide full system packages with matched blowers, control panels, and warranties. When retrofitting, ensure your chosen pump and diffuser are compatible with the tank’s sizing and permits.
Kingspan Solenoid Valves and Timers.
The Kingspan Bioficient and Delta septic tank units originally utilised the Shako PU22003 solenoid valve and programmable timer to control air flow.

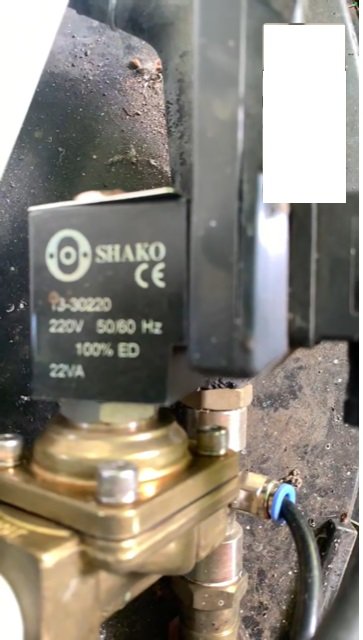

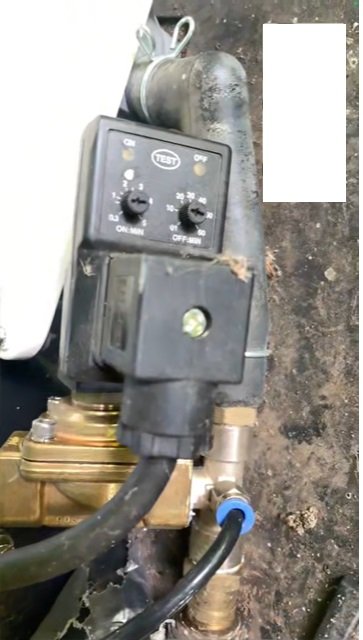

Pictures below show Shako PU22003 valve after many years of use - and needed replacing.
Original Kingspan OEM Replacement Valves and Timers
Specifications:
Function: 2/2 way normally closed
Operation: assisted lift (zero-rated)
Port: 3/8 BSP, option NPT thread
Pressure: 80% vacuum (-0.8 Bar) to 8.5 Bar
Orifice: 13.0 mm
Kv flow factor: 35 L/min based on water with 1 Bar pressure drop
Seals: NBR standard, option EPDM, Viton and HNBR
Media: air, water and other fluids under 50 CST and gases compatible with materials of construction.
Media temperature: NBR -15°C to +80°C, Viton -10°C to +180°C, HNBR -40°C to +150°C, EPDM -5°C to +130°C.
Coil: 15 Watt Nass Magnet Class H CE IP65 approved 100% duty rated DIN43650A
Protection: IP65 with connector (Included)
Voltages: 12vDC, 24vDC, or 24vAC, 110vAC or 230vAC 50/60hz.
Specifications:

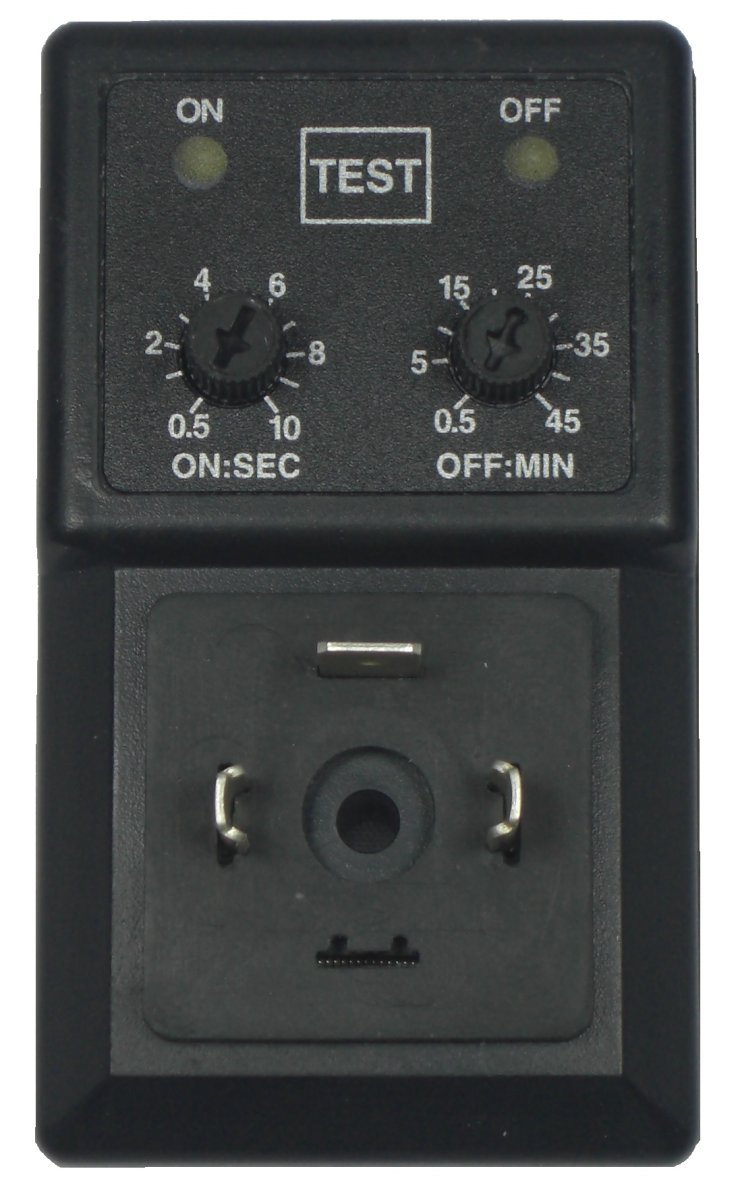

Repeat cycle solid state timer for solenoid valve
Mounting: Din43650A square fits directly between solenoid coil and connector
Voltage: 24 to 240 volt AC or DC
Includes: LED phase light, manual over ride touch switch, flat gasket and DIN connector screws standard and extra long.
Current consumption: 4mAmp Max
Temperature: -10°C to +60°C
Protection: IP65 NEMA IV with connector
Approvals: CE
Switch capacity: 1 Amp Maximum
Inrush current: 10 Amps for 10 milliseconds
Switch holding voltage: 400 Volts Max
Duty cycles: 100%
Switch life: 300,000,000 cycles
Input: DIN43650A ISO4400 (Square)
Output: DIN43650A ISO4400 (Square)
Timing temp coefficient: +/- 0.005% per degree Centigrade
Scale accuracy: +/- 10%
Printed circuit board: UL 94V0
Adjustment: Adjustable ON-time and adjustable OFF-time
0.5 to 10 second ON then 0.5 to 45 minutes OFF
Specifications:Genuine Shako Solenoid Valve

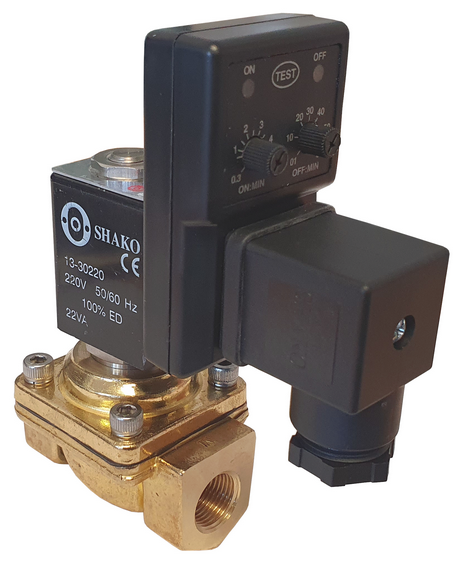

Brass 2/2 way normally closed solenoid valve complete with cycle timer Shako PU220A-03
Function: 2/2 way normally closed
Operation: assisted lift (zero rated)
Port: 3/8 BSP
Pressure: 0 to 8.5 Bar
Coil: 15 Watt Shako / Nass Magnet Class H CE IP65 approved 100% duty rated DIN43650A
Protection: IP65 with connector (Included)
Voltage: 230vAC (+/- 10%).
Analogue Timer: (Original fitment)
Repeat cycle solid state timer for solenoid valve
Mounting: Din43650A square fits directly between solenoid coil and connector
Voltage: 24 to 240 volt AC or DC
Includes: LED phase light, manual over ride touch switch, flat gasket and DIN connector screws standard and extra long.
The Kingpspan Envireau rainwater harvesting system solenoid valve
Specifications:

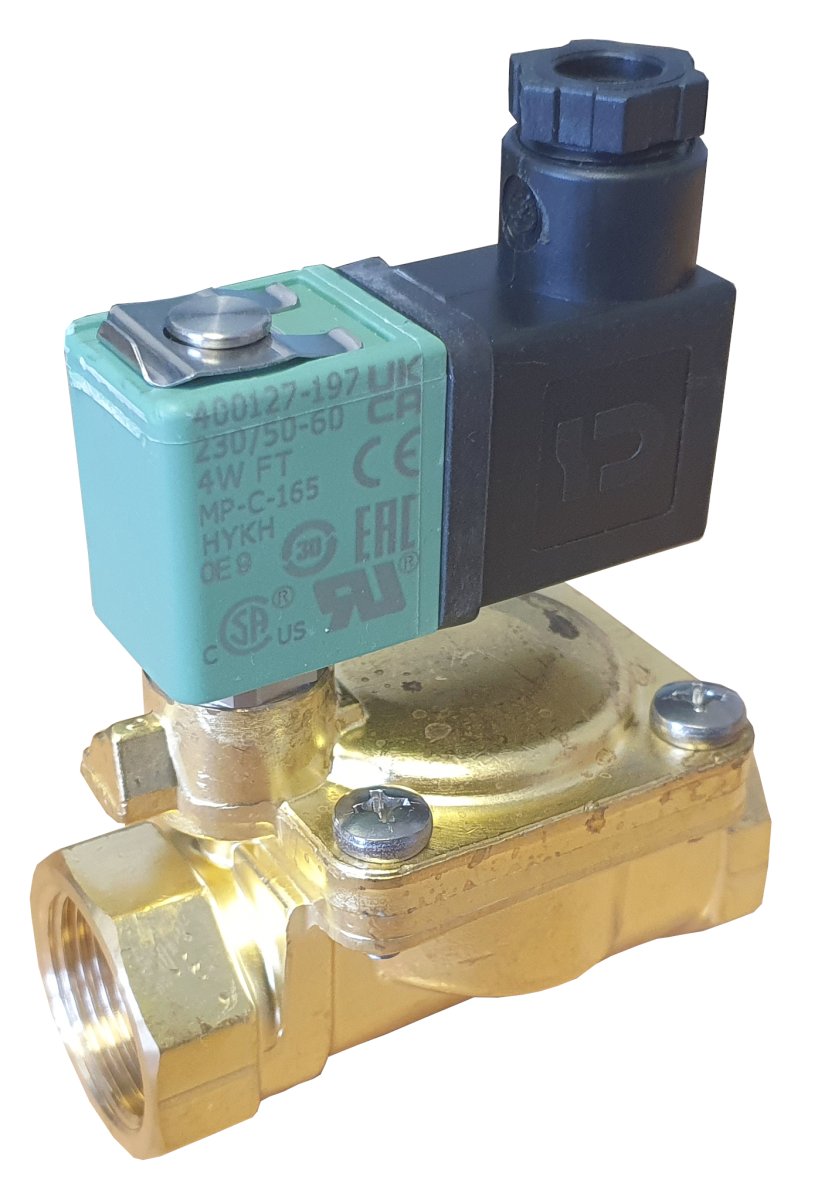

3/4 Normally open WRAS approved water solenoid valve Sirai L282D01-3/4
Function: 2/2 way normally open (failsafe open - power to close)
Operation: pressure assisted, requires minimum 0.35 Bar pressure difference
Pressure: 0.35 to 12 Bar differential, Max working 20 Bar
Seals: EPDM WRAS certified
Port: 3/4 BSPP thread (ISO 228)
Orifice: 18mm
Kv flow factor: 5 m3/hr
Anti water hammer design opens 0.3 to 1.5 seconds closes 1 to 2 seconds
Coil: Class F DIN43650B 100% duty rated IP65.
Coil type: ZB10A
Protection: IP65 with connector (Included)
Power: AC Inrush 11.7VA, Holding 10VA, DC 5.5 Watts.
Voltage tolerance +/-10%
Voltages: 12vDC, 24vDC or 24vAC, 110vAC or 230vAC.
