Solenoid Valve Timer Controllers

Intro

Solenoid valve timer controllers provide automatic switching and control of solenoid valves in industrial and compressed air systems.

Designed for reliability and ease of use, these timers enable precise control of valve operation using cyclic, delay and single shot timing sequences.

→ Ideal for compressed air systems and condensate drains

→ Used in automation, process control and fluid handling

→ Simple plug-in or wired installation

→ Adjustable timing ranges for flexible operation

Key Features

→ Cyclic ON/OFF control (repeat timer)

→ Single shot timing mode

→ Delay ON / Delay OFF functions

→ Adjustable ON and OFF time ranges

→ LED status indication

→ Compact and robust industrial design

→ Easy installation between coil and power supply

Typical Timer Sequences

These solenoid valve timers can operate in multiple modes:

→ Cyclic Timer (Repeat Cycle)
Automatically switches the valve ON and OFF at set intervals

→ Single Shot Timer
Activates the valve once for a preset duration

→ Delay Timer
Delays activation or deactivation after power is applied

→ OFF Delay Timer
Keeps valve energised for a set time after power removal

Common Applications

→ Condensate drain systems

→ Air compressor automation

→ Pneumatic control systems

→ Water dosing and flushing systems

→ Industrial process timing control

Compatible Equipment

These timers are designed for use with:

→ Solenoid valves (AC or DC coils)

→ Motorised valves

→ Pneumatic actuators

→ Drain valves and air treatment equipment

Why Use a Solenoid Valve Timer?

Using a timer controller improves system efficiency and reduces manual intervention:

→ Prevents system overuse and energy waste

→ Automates repetitive valve operation

→ Improves consistency and reliability

→ Reduces maintenance requirements

Browse Solenoid Valve Timers

Choose from a wide range of solenoid valve timers including cyclic timers, single shot timers and programmable control units.

Typical Timer sequences are:

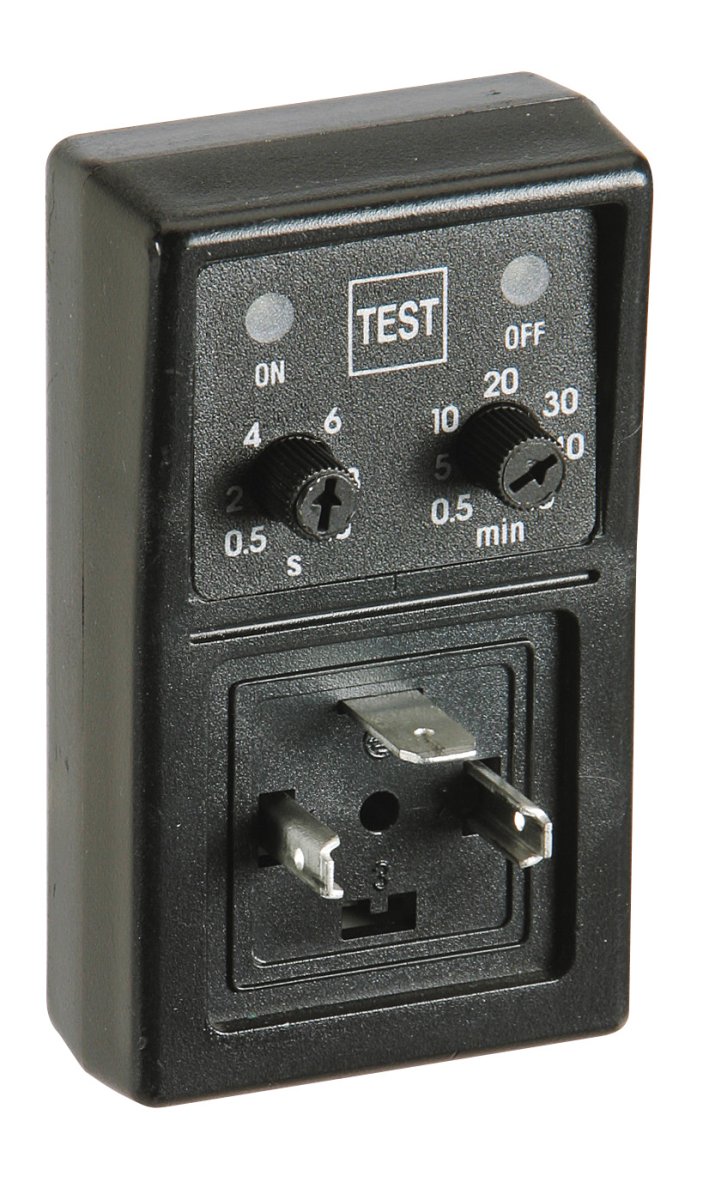

T1 - Adjustable 0.5 to 10 Second Power ON with adjustable 0.5 to 45 minute power off

T2 - Adjustable 0.5 to 10 Second Power ON with adjustable 25 to 150 minute power off

T3 - Adjustable 20 to 300 millisecond Power ON with adjustable 0.5 to 60 minute power off

T4 - Adjustable 0.5 to 10 Minute Power ON with adjustable 0.5 to 10 second power off

T5 - Adjustable 0.3 to 5 Minute Power ON with adjustable 0.5 to 60 minute power off

T6 - Adjustable 0.5 to 10 Minute Power ON with adjustable 0.5 to 45 minute power off

T7 - Adjustable 0.5 to 10 Second Power ON with adjustable 0.5 to 10 Second power off

Other Timer options include

Single shot timers: Application of power the timer resets, enters the ON state for a period T1, then switches off indefinitely.

Delay shot timer: Application of power the timer resets, enters the OFF state for a period T2, then switches on indefinitely.

Delay repeat cycle: Application of power the timer resets and enters the off state for a period T2, then switches ON for a period T1. This sequence repeats until power is removed.

Single cycle timer: Application of power the timer enters the OFF state for a period T2, then switches ON for a period T1. It then switches OFF and remains OFF indefinitely.

There is a choice of fitment either ISO43650A Square type or 43650B Rectangular type, they are both available across a wide range of timer sequences, some of the more popular time controls are listed below however we can custom manufacture almost any time sequence required for your application.
