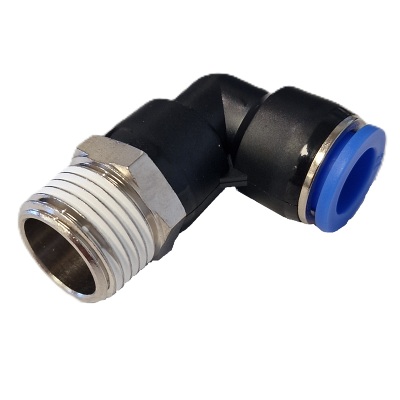

Male stud elbow push-in airline fitting M5 up to 1/2 BSP 4mm up to 12mm (NPL)

£2.11

incl. VAT
£1.76 ex. VAT

Brand: Shako Co Ltd

Model: NPL

Stock: 995 in stock

Read Full Description

Description

S-Line Pneumatic Push-in x BSPT Male 90 Deg Compact non-swivel Elbow Connector NPL

Metric Tube Sizes 4mm to 12mm, M5 to 1/2 BSP thread

One Touch push to connect configuration allow an instant tubing connection

Strong nickel plated brass thread and sleeve with engineering plastic (POM) enclosure disconnection by pressing the sleeve and then simply removing the tube from the fitting

Male thread is Teflon treated ready for use

Nickel Plated Brass and POM body ensures anti contamination

For use in pneumatic systems upto 9 Bar with maximum temperature of 60 degrees Celsius

Technical Specification

Brand: Shako Co Ltd

Model: NPL

Width: 26.50 mm

Height: 10.00 mm

Depth: 26.50 mm

Weight: 0.05 kg

Valve / Product Type: AirLine Fittings + Tube

Body Material: Brass, Delrin (POM)

Port Size: 4mm, M5, 1/8 thread, 1/4 thread, 6mm, 8mm, 3/8 thread, 10mm, 12mm, 1/2 thread

Pressure Maximum: 0.02 Bar (20 mBar), 0.1 Bar (100 mBar), 0.2 Bar (200 mBar), 0.3 Bar (300 mBar), 0.4 Bar (400 mBar), 0.5 Bar (500 mBar), 0.6 Bar (600 mbar), 0.7 Bar (700 mBar), 0.8 Bar (800 mBar), 1 Bar, 1.2 Bar, 1.3 Bar, 1.4 Bar, 1.5 Bar, 1.6 Bar, 2 Bar, 2.5 Bar, 3 Bar, 3.5 Bar, 4 Bar, 4.5 Bar, 5 Bar, 5.5 Bar, 6 Bar, 6.5 Bar, 7 Bar, 7.5 Bar, 8 Bar, 8.5 Bar, 9 Bar, 10 Bar

Seals: NBR

Media: Air, Gases (Non Aggressive)
