Valve / Product Type

Air Actuated Valve

air actuated valves that utilise a compressed air supply to operate.

Ball Valve

Motor and air actuated quarter turn 2+3 way ball valves

Butterfly Valve

Butterfly valves are thin wafer pattern valves that fit between flanges.

Condensate drain

Automated + time control drain valves

Motor Actuated Valves

Proportional Modulating

Flow regulating valves with manual or electric modulating 4-20mA control.

Safety Shut Off

Safety shut off isolation valve, shuts off and secures air line systems, will vent downstream air when closed.

Timed control

Time control valves can be set to activate according to preset intervals when power is applied.

Port Size

Media

Body Material

Function

2/2 Failsafe Closed

2 ports (inlet/outlet) with 2 positions (Open/Closed) - valve stays closed (Failsafe) requires power to open

2/2 Failsafe Open

2 ports (inlet/outlet) with 2 positions (Open/Closed) - valve stays open (Failsafe) requires power to close

2/2 Latching

2 ports (inlet/outlet) with 2 positions (Open/Closed) - short power pulse valve stays open - reverse power pulse valve stays closed

Power Open/Power Close

Valve requires power to open and power to close, no power valves stays in position.

Proportional / Modulating

Valve opens proportionally according to signal input, either 4-20mA, 0-10v or 0-5 volt. Example 4mA valve closed, 8mA 25% open, 12mA 50% open, 18mA 75% open and 20mA fully open.

Pressure

Seals

EPDM

EPDM (Ethylene Propylene Diene Monomer) - known as Ethylene Propylene terpolymer, Buna-AP, Dutral, Polysar-EDM, Royalene, Vistalon, Keltan, Epcar, Nordel or Epsyn). Good for hot and drinking water, Steam, Freon refrigerant gas and Air -40°C to +120°C (+150°C steam) Poor resistance to oils + fuels

FKM (Viton)

FKM Fluoro elastomer (Fluorocarbon) Viton® Dupont registered, known as Tecnoflon, Fluorel, Dai-El. Good for hot water, acid, alkali, oils, hydrocarbons and salt solutions, many aggressive chemicals, diluted acids, weak alkali's, mineral oils, aliphatic and aromatic hydrocarbons, chlorinated hydrocarbons, sunlight and ozone. -26°C to +205°C. Poor resistance to Ketone's and Acetone.

PTFE (Teflon)

PTFE (Polytetrafluoroethylene) also known as Teflon® Dupont registered. Excellent resistance to almost every fluid or gas. -200°C to +230°C

Voltage

Approval: ATEX,WRAS,IP etc

IP40

Protected against solid foreign objects of 1mm diameter and more and no protection against water ingress.

IP54

Dust protected and protected against splashing water

IP65

Dust tight and protected against water jets

IP66

Dust protected and protected against powerful water jets.

IP67

Dust protected and protected against immersion in water

IP68

Dust protected and protected against the effects of continuous immersion in water.

WRAS

WRAS approval ensures water fittings meet UK water regulations, safeguarding public health by preventing contamination, waste, and misuse of water supplies.

Orifice

Options required

Anti Water Hammer

Prevents or reduces water hammer caused by sudden changes in fast moving fluid flow.

Bi-Directional Flow

Can control flow in both directions

Flow Control

Flow regulation to control the amount of flow.

Manual Override

A facility to manually move the valve into the fully actuated position via a button, lever or key.

Mounting Bracket

Valve has the facility to be supplied with a bracket for mounting and securing.

Mounting Holes

Supplied with additional threaded holes typically in the base, typically for securing to a baseplate.

Position Feedback Closed

The valve is equipped with an additional volt free electrical switch that is triggered when the valve is mechanically closed.

Position Feedback Open+Closed

The valve is equipped with two additional volt free electrical switches that are triggered when the valve is mechanically closed or open position.

Position indication Visual

The valve is equipped with clear cover or dome under which an arrow or flag can be seen to confirm either the open and or closed position of the valve.

Spares (Coils, Connectors, Seals)

Actuator Head Air + Motor

Air Actuator

Nuts + bolts + plates

Only Show Items In Stock

Hide spare parts

2 Way Motorised Ball Valves

2 Way WRAS Motorised Ball Valves

2 Way UPVC Actuated Ball Valves

Timer Controlled Ball Valves

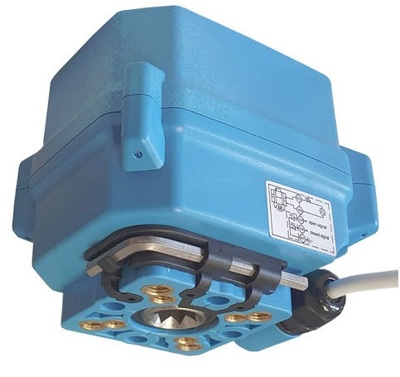

Electric Motor Actuators

Filters
