Key Features
- Quad-Outlet Pneumatic Connector
- Two Swivel Twin Banjo Outlets
- Four Push-In Tube Connections
- Single BSPP Male Connection
- One-Touch Push-In Connections
- 4mm to 12mm Tube Sizes
- M5 to 1/2" BSPP Threads
- Integrated O-Ring Thread Seal
- No Thread Tape Required
- Adjustable Swivel Tube Direction
- Nylon & Polyurethane Tubing
- Operating Pressure 0–10 Bar
- Maximum Pressure 15 Bar
- Vacuum Rated to -1 Bar
- Temperature -20°C to +70°C
- Nickel-Plated Brass & Resin Body
- NBR Sealing Rings
- Stainless Steel Lock Claws
- Durable POM Sleeve & Lock Ring
- Zinc Alloy Release Collet
- Pneumatic & Vacuum Systems
- Compact Four-Way Air Distribution
Datasheets
Description

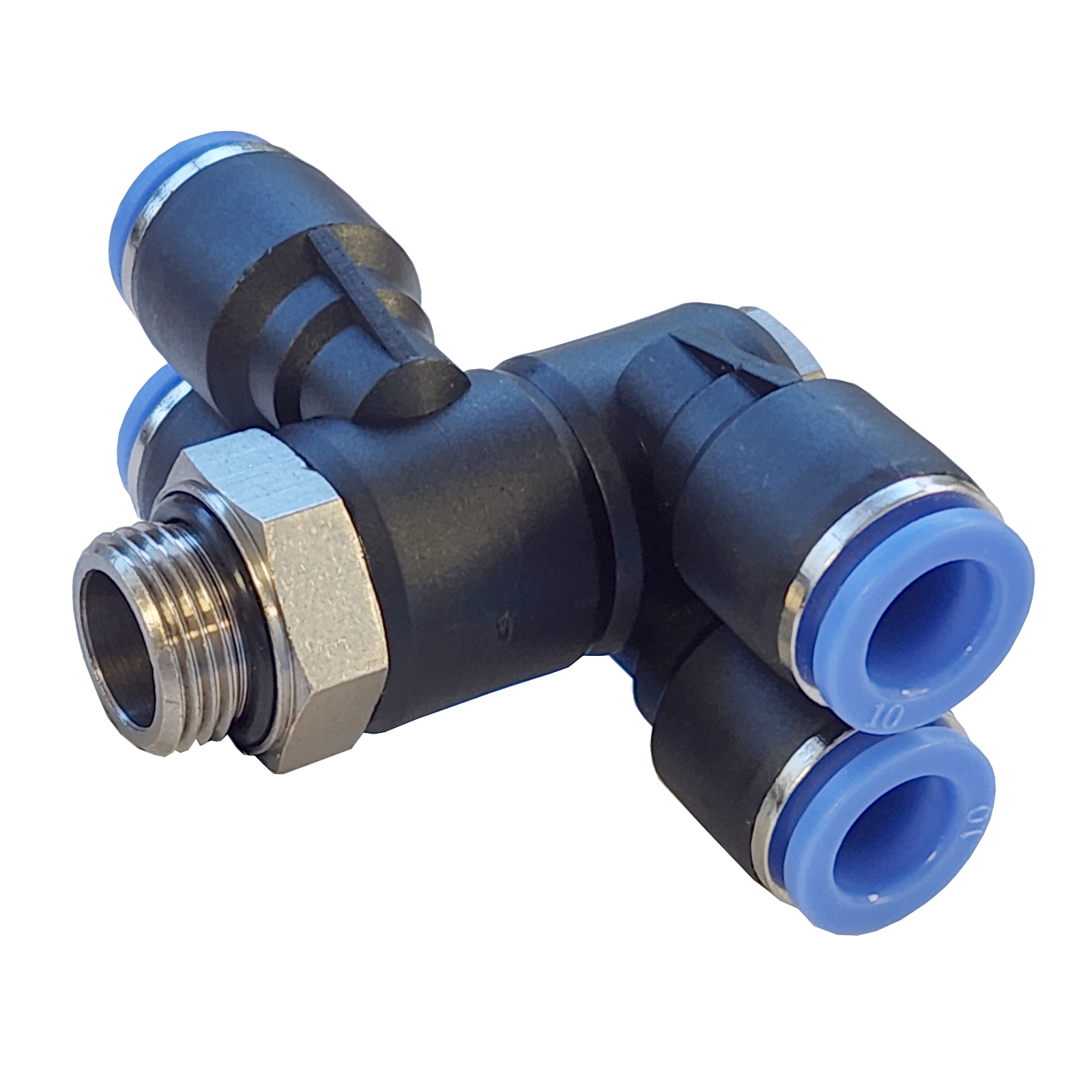

Air Line BSPP Male with Two Swivel Twin Banjos Push-to-Connect Fittings – GPAT(2) Series
Advanced Pneumatic One-Touch Quad-Outlet Connectors
Precision Nickel-Plated Construction
Technical Performance
Applications
Related Products & Categories.
Technical Specification
Brand: Connexion
Model: GPAT(2)
Width: 42.00 mm
Height: 42.00 mm
Depth: 42.00 mm
Weight: 0.10 kg
Valve / Product Type: Fittings + Tubing
Body Material: Delrin (POM)
Port Size: M5, 1/8 thread, 1/4 thread, 6mm, 8mm, 3/8 thread, 10mm, 12mm
Pressure: Vacuum, 0.02 Bar (20 mBar), 0.1 Bar (100 mBar), 0.2 Bar (200 mBar), 0.3 Bar (300 mBar), 0.4 Bar (400 mBar), 0.5 Bar (500 mBar), 0.6 Bar (600 mbar), 0.7 Bar (700 mBar), 0.8 Bar (800 mBar), 1 Bar, 1.2 Bar, 1.3 Bar, 1.4 Bar, 1.5 Bar, 1.6 Bar, 2 Bar, 2.5 Bar, 3 Bar, 3.5 Bar, 4 Bar, 4.5 Bar, 5 Bar, 5.5 Bar, 6 Bar, 6.5 Bar, 7 Bar, 7.5 Bar, 8 Bar, 8.5 Bar, 9 Bar, 10 Bar
Seals: NBR
Media: Air, Gases (Non Aggressive), Vacuum (Low), Vacuum (Medium), Vacuum (High)
Options required: Banjo
Found in these Categories
1/8-1/2BSP Male twin branch twin Banjo 4 outlet push fitting
£5.05 incl. VAT £4.21 ex. VAT
