Key Features
✓ 10mm to 32mm bore sizes
✓ Fulcrum-type gripping action
✓ Double-acting pneumatic operation
✓ Compact miniature construction
✓ 1.5 to 7 kgf/cm² pressure
✓ Maximum pressure 10.5 kgf/cm²
✓ -10° to +30° operating angle
✓ Gripping force up to 56.28N
✓ 50–700 mm/sec operation
✓ M3 or M5 air connections
✓ Aluminium alloy body
✓ Stainless steel grippers
✓ Built-in magnetic detection
✓ Optional AL-07 position sensor
✓ Reed, NPN or PNP sensors
✓ 0°C to +60°C temperature
Datasheets
Description

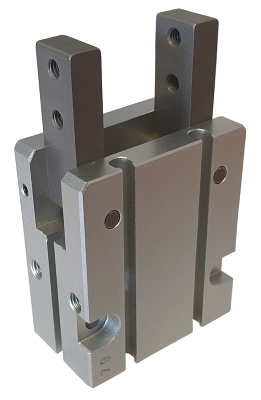

Pneumatic Air Gripper – HYC Fulcrum Type 10–32mm Bore
The Shako HYC Series is a compact double-acting pneumatic air gripper featuring a fulcrum-type gripping action for automated handling, pick-and-place, assembly and OEM machinery applications.
Available in 10mm, 16mm, 20mm, 25mm and 32mm bore sizes, the HYC Series provides a compact, space-saving gripping solution with operating pressures from 1.5 to 7 kgf/cm² and an operating angle from -10° to +30°.
All sizes feature an aluminium alloy body and built-in magnet for optional magnetic position sensing, allowing gripper position to be detected and integrated into automated control systems.
The standard sensor option offered is the Shako AL-07 round magnetic sensor, available with reed, NPN or PNP switching. Square AL-16 sensors are also available on request.
Function & Operation
Type: Fulcrum pneumatic gripper
Function: Double acting
Medium: Compressed air
Available Bore Sizes: 10mm, 16mm, 20mm, 25mm and 32mm
Operating Angle: -10° to +30°
The HYC Series uses compressed air to open and close the gripping mechanism. Unlike the related HPC parallel gripper, the HYC jaws move through an angular fulcrum action.
The compact design makes the HYC particularly suitable for automated machinery where installation space is limited and controlled gripping of components is required.
Pressure & Performance
Operating Pressure: 1.5 to 7 kgf/cm²
Maximum Operating Pressure: 10.5 kgf/cm²
Operating Frequency: 50 to 700 mm/sec
Ambient Temperature: 0°C to +60°C
Lubrication: Not required or minimal
The HYC range provides increasing gripping force according to both selected bore size and supplied air pressure.
Maximum Theoretical Gripping Force at 7 kgf/cm²
HYC10 – 10mm Bore: 5.53N
HYC16 – 16mm Bore: 14.07N
HYC20 – 20mm Bore: 21.98N
HYC25 – 25mm Bore: 34.37N
HYC32 – 32mm Bore: 56.28N
Construction
Body Material: Aluminium alloy
Gripper Material: Stainless steel
Lever Shaft: Carbon steel
Piston Rod: S45C + chrome
Seals: NBR
Magnet: Built-in ferrite magnet
The built-in magnet allows compatible magnetic sensors to detect the position of the pneumatic gripper without requiring an external mechanical limit switch.
Pneumatic Connections
HYC10 – 10mm Bore: M3
HYC16 – 16mm Bore: M5
HYC20 – 20mm Bore: M5
HYC25 – 25mm Bore: M5
HYC32 – 32mm Bore: M5
Operating Medium: Compressed air
The compact HYC10 uses an M3 pneumatic connection, while the larger 16mm to 32mm bore versions use M5 pneumatic ports.
Magnetic Position Sensor Options
All HYC Series pneumatic grippers incorporate a built-in magnet, allowing optional magnetic sensors to provide electrical position detection for automated machinery and control systems.
The standard sensor family offered with the HYC Series is the Shako AL-07 round magnetic sensor, identified by the SR sensor code.
Three AL-07 switching types are available:
AL-07R – Reed Switch
Mechanical reed switching technology
Switches ON/OFF in response to the gripper's built-in magnet
Standard and most commonly used Shako cylinder sensor type
AL-07N – NPN Electronic Sensor
Solid-state electronic sensor with IC switching
NPN current-sinking output
Faster response and greater sensitivity than the reed version
AL-07P – PNP Electronic Sensor
Solid-state electronic sensor with IC switching
PNP current-sourcing output
Faster response and greater sensitivity than the reed version
For most conventional pneumatic cylinder and gripper applications, the AL-07R reed sensor is the standard choice. NPN and PNP electronic versions are available where the control system requires the corresponding electronic output or where faster response and greater sensitivity are required.
Sensor Quantity
Without Sensor: Gripper supplied with built-in magnet but no sensor
1 Sensor: One magnetic position sensor
2 Sensors: Two magnetic position sensors
Two sensors can be used where detection of both gripper positions is required.
Alternative AL-16 Sensor
The HYC Series can also accept the Shako AL-16 square magnetic sensor, identified by the SU sensor code.
AL-16 is available in:
AL-16R – Reed
AL-16N – NPN electronic
AL-16P – PNP electronic
The AL-16/SU sensor is available on request and is not included within the standard selectable product options.
Mounting Options
The compact HYC design provides several installation possibilities depending upon machine layout.
The mounting arrangements include:
✓ Bottom mounting
✓ Side mounting
✓ Top face mounting
✓ Bottom face mounting
This makes the HYC Series particularly flexible for integration into compact automation and handling equipment.
Typical Applications
✓ Pick-and-place systems
✓ Automated assembly machinery
✓ Component handling equipment
✓ Packaging machinery
✓ Robotic handling systems
✓ Small component positioning
✓ Production automation
✓ OEM pneumatic equipment
Technical Specification
Series: Shako HYC
Type: Fulcrum pneumatic gripper
Function: Double acting
Medium: Compressed air
Bore Sizes: 10, 16, 20, 25 or 32mm
Port Sizes: M3 or M5 according to bore
Operating Pressure: 1.5 to 7 kgf/cm²
Maximum Pressure: 10.5 kgf/cm²
Operating Angle: -10° to +30°
Theoretical Gripping Force: Up to 56.28N
Operating Frequency: 50 to 700 mm/sec
Ambient Temperature: 0°C to +60°C
Body Material: Aluminium alloy
Gripper Material: Stainless steel
Seals: NBR
Magnet: Built-in
Lubrication: Not required or minimal
Standard Sensor Family: AL-07 round type
Sensor Code: SR
Sensor Switching: Reed, NPN or PNP
Sensor Quantity: None, 1 or 2
Optional Sensor Family: AL-16 square type (on request)
Ordering Options
The HYC Series ordering structure is:
HYC – Bore Size – Sensor Type – Number of Sensors
Available gripper sizes:
HYC10 – 10mm bore
HYC16 – 16mm bore
HYC20 – 20mm bore
HYC25 – 25mm bore
HYC32 – 32mm bore
For the standard SR / AL-07 round sensor, select the required electrical switching type:
R = Reed switch
N = NPN electronic sensor
P = PNP electronic sensor
Then select the required sensor quantity according to the application.
Sensor Selection Guide
AL-07R Reed: Best general-purpose option and the most commonly used Shako sensor.
AL-07N NPN: Electronic sensor with NPN current-sinking output for compatible PLC and control inputs.
AL-07P PNP: Electronic sensor with PNP current-sourcing output for compatible PLC and control inputs.
The NPN and PNP versions provide faster response and greater sensitivity than the mechanical reed version, while the reed sensor remains the normal choice for most standard applications.
Why Choose the Shako HYC Series?
The HYC Series combines a compact pneumatic actuator and fulcrum gripping mechanism into a miniature assembly designed for industrial automation.
With five bore sizes, gripping forces up to 56.28N, multiple mounting arrangements and integrated magnetic sensing capability, the range can be configured for applications from light component handling through to more demanding automated gripping systems.
The choice of reed, NPN or PNP magnetic sensors also allows the gripper to be matched to conventional switching circuits, PLC inputs and automated machine control systems.
Related Products & Categories
2, 3 & 5 Way air Control Valves
Filters, Regulators & Lubricators
Airline Fittings & Tubing
Air Flow Control, Check, Shuttle, Silencers, QEV Valves
Technical Specification
Brand: Shako Co Ltd
Model: HYC,HPC
Width: 44.00 mm
Height: 75.00 mm
Depth: 25.00 mm
Weight: 0.50 kg
Body Material: Aluminium
Port Size: M5
Function: 2/2 Double Acting
Operation: Direct Acting from 0 Pressure
Pressure: 1.5 Bar, 1.6 Bar, 2 Bar, 2.5 Bar, 3 Bar, 3.5 Bar, 4 Bar, 4.5 Bar, 5 Bar, 5.5 Bar, 6 Bar, 6.5 Bar, 7 Bar
Seals: NBR
Media: Air
Orifice: 12mm
