ABVM Actuator Head Open/Close 1-4 Sec - Failsafe +Modulating

£46.08

£61.44 incl. VAT
£38.40 ex. VAT

Brand: Connexion

Model: ABVM

Stock: 0 in stock

Read Full Description

Description

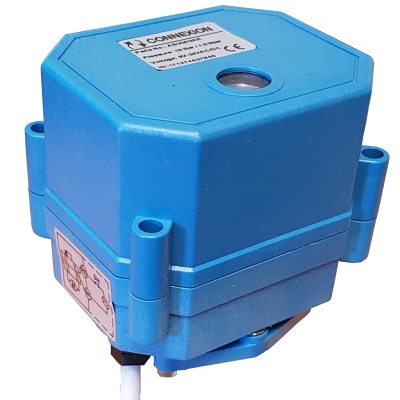

ABVM Electric motor actuator replacement head units.

Motor Actuator:
Open/Close: 4 to 6 seconds. (Except 1-2 Second model)
Includes: visual position indication.
Temperature (ambient): -15°C to +50°C.
Cycle life: 100,000+ open/close, 100% rated.
Power Consumption: 1 to 5 watts when moving.
Control options: Failsafe return or Power Open/Close.
Power supply: 9-24v 2 amp, 110-240v 500mA recommended.
Voltage: 9 to 24 volts AC/DC or 110 to 240 volt AC with multi voltage technology.

Options to choose.

1. Failsafe Closed = Power ON will OPEN - Power OFF will automatically CLOSE with reserve power. (ABVM/9AR + ABVM/2AR)

2. Failsafe Open = Power ON will CLOSE - Power OFF will automatically OPEN with reserve power. (ABVM/9AR-NO + ABVM/2AR-NO)
Failsafe actuators require minimum 30 second power ON for recharging.

3. Power Open/Close = connect RED +ve and BLACK -ve wires, GREEN wire is the control wire.
Power to GREEN valve opens or power off valve closes. (ABVM/2 and ABVM/9)

4. Control voltage 9 to 24v AC/DC or 110 to 240vAC.

Modulating Control + feed back options:

4–20 milliampere IN/ 4-20 mA OUT control
Connect Red +ve 9-24vDC
Connect Black -ve 9-24vDC together with the -ve 4-20mA
Green +ve Input control 4-20mA (4.2133mA valve starts to open)
Yellow status signal output 9-24vDC, NO voltage = all OK, 9-24v = Error.
White OC output signal +ve 4-20mA
Option: OC output PWM feedback PWM, pulse width modulation signal is 100Hz, Duty cycle 5%-95%, Adjustable switch angle 0–90 degrees, Load 500mA.

0–10 volts IN / PWM OUT control
Connect Red +ve 9-24vDC,
Connect Black -ve 9-24vDC together with the -ve 0-10v
Green +ve Input control 0-10 volt (0.1333v valve starts to open)
Yellow status signal output 9-24vDC, NO voltage = all OK, 9-24v = Error.
White +ve position feedback PWM pulse width modulation.
OC output PWM signal is 100Hz, Duty cycle 5%-95%, Adjustable switch angle 0–90 degrees, Load 500mA.

0–5 volts IN / PWM OUT control
Connect Red +ve 9-24vDC,
Connect Black -ve 9-24vDC together with the -ve 0-5v
Green +ve Input control 0-5 volt (0.0666v valve starts to open)
Yellow status signal output 9-24vDC, NO voltage = all OK, 9-24v = Error.
White +ve position feedback PWM pulse width modulation.
OC output PWM signal is 100Hz, Duty cycle 5%-95%, Adjustable switch angle 0–90 degrees, Load 500mA.

Other options.

Manual Override = Button Lift + Twist will open/close valve and disengage motor, push back down to re-engage motor.
Available low voltage only. (ABVM/9AR-MO, ABVM/9AR-NO-MO, ABVM/9-MO)

ABVM Weather Cover (recommended for use outdoors or wet environments).

E2 Position Switches = Position OPEN and CLOSED end of travel confirmation switches.
Volt free feed back (no voltage supplied from actuator).
Switch rating 0 to 36vDC 0.4 Amp Max. (ABVM/9AR-E2, ABVM/2AR-E2, ABVM/9-E2, ABVM/2-E2)

Technical Specifications

Speed:
9-24 volt: Open 4 second / close 4 seconds
110-240 volt: Open 4 seconds / Close 6 seconds.
9-24 volt 1-2 Sec option: Open 1-2 seconds / close 1-2 seconds

Start Power
9-24 volt: peak current can reach 2.08A for 5ms (0.005 seconds) after first start and capacitors not charged.

Moving Power:
9-24 volt: 1 to 1.2 Watts, 50mA to 130mA. (Back EMF 3 to 5 Volts over nominal. 9v=130mA, 12v=100mA, 24v=50mA.)
110-240 volt: 2 to 5 Watts, 50 to 100mA.

Maximum Voltage:
Actuators without manual override can operate from 6 to 24v AC/DC, where 24 volts is absolute maximum.
Actuators with manual override can operate from 9 to 35 volts AC/DC.

Technical Specification

Brand: Connexion

Model: ABVM

Width: 52.00 mm

Height: 50.00 mm

Depth: 65.00 mm

Weight: 0.20 kg

Valve / Product Type: Motor Actuated

Voltage: 12vDC, 12vAC, 24vDC, 24vAC, 110vAC, 230VAC

Function: 2/2 Normally Closed, 2/2 Normally Open, Power Open/Power Close, Proportional / Modulating

Operation: Direct Acting

Approvals (EN,Ex,IP,CSA,UL etc): IP65, IP66, IP67

Options required: Anti Water Hammer, Bi-Directional Flow, Flow Control, Manual Override, Mounting Bracket, Mounting Holes, Position Feedback Closed, Position Feedback Open+Closed, Position indication Visual

Spares (Coils, Connectors, Seals): Actuator Head Air + Motor
