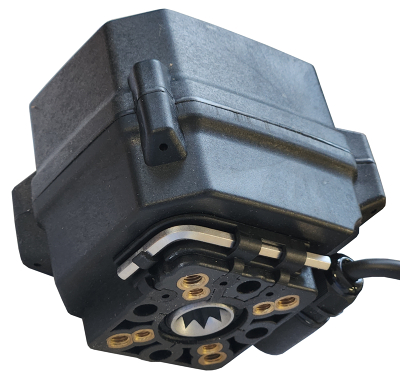

1-2 Second Motor actuator Open/Close + Failsafe IP68 ISO5211

£131.54

£175.38 incl. VAT
£109.62 ex. VAT

Brand: Connexion

Model: ABV/2SEC-E2-MO

Stock: 2 in stock

Read Full Description

Description

Fast Electric Actuator 1-2 Second quarter turn 20NM Break, 15NM Run ABV/2SEC-E2-MO

Mount: ISO5211 F03 + F05, with 11x11mm drive (optional 9x9mm drive adaptor Depth 18mm)
Speed: 1-2 Second
Torque: 24-26NM
Power: 10 Watt
Protection: IP68 with 0.5 Meter cable optional 3 meter
Housing: Strong PPO Plastic
Ambient Temperature: -15C to +60C
Media Temperature: -15C to +90C
Cycle Life: 50,000 cycles
Duty Cycle: 100%, can be open and closed every 60 seconds
Visual Position Indication
Manual Override facility (Allen Key provided)
E2 Fully Open and Closed volt free position feed back switches (36vDC 0.4Amp Max)
Voltages: 12vDC or 24vDC.

Options to choose:
A. Failsafe = Power +ve Red and -ve Black, actuator will rotate 90 degrees - Power OFF will automatically return with reserve power.
E2 volt free open + closed position feedback (3 wires Green/Yellow + White)

Failsafe actuators require initial 30 second power ON to charge reserve power.
Will draw less than 0.5 Watt when powered and not moving.

B. Power Open/Power Close = Connect Red +ve and Black -ve, Green is the control wire.
Power to GREEN actuator rotates 90 degrees – remove power from GREEN actuator returns to start position.
E2 volt free open + closed position feedback 4 wires (Blue/Grey + Yellow/White)

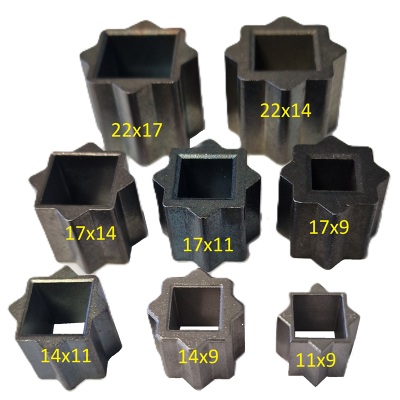

C. Option to choose 9x9mm hex drive adaptor.

Technical Specification

Brand: Connexion

Model: ABV/2SEC-E2-MO

Width: 75.50 mm

Height: 80.40 mm

Depth: 92.60 mm

Weight: 2.00 kg

Valve / Product Type: Motor Actuated

Voltage: 12vDC, 24vDC

Function: 2/2 Normally Closed, 2/2 Normally Open, Power Open/Power Close

Operation: Direct Acting

Approvals (EN,Ex,IP,CSA,UL etc): IP65, IP66, IP67, IP68

Options required: Manual Override, Mounting Bracket, Mounting Holes, Position Feedback Closed, Position Feedback Open+Closed, Position indication Visual

Spares (Coils, Connectors, Seals): Actuator Head Air + Motor
