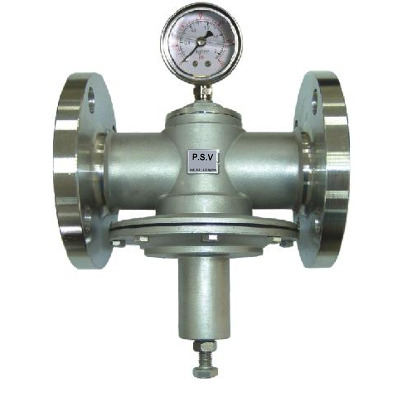

DN15-150 Stainless steel pressure sustaining valve 1-10 Bar
£378.84
Description
Direct Acting Flanged Pressure Sustaining Valve – Z Tide Industrial Series RFF
Heavy-duty direct-acting back pressure valve designed for industrial systems requiring precise upstream pressure maintenance.
Key Features
→ Function: Pressure sustaining / back pressure valve (BPV)
→ Operation: Direct acting
→ Port Sizes: DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100, DN150
→ Flange Type: PN16 standard; optional JIS10K, ANSI150Lb, or PN25
→ Max Inlet Pressure: 25 Bar
→ Back Pressure Adjustment: 1–5 Bar or 4–10 Bar, indicated via stainless steel pressure gauge (included)
→ Test Pressure: 35 Bar
→ Temperature Range: -15°C to +80°C
Materials & Construction
→ Body: 316 stainless steel standard; Duplex 316 stainless steel optional
→ Flanges: CF8M for DN65–DN100; other sizes welded 316L stainless steel
→ Internals: Stainless steel
→ Seals: NBR standard; optional Viton or EPDM
→ Media Compatibility: Air, water, pure water, light oil, and other fluids/gases <40 cSt compatible with materials of construction
Performance & Design
→ Maintains pre-set back pressure upstream:
• If upstream pressure drops to set value → valve begins to close to sustain pressure
• If pressure rises → valve opens to allow flow again
→ Designed for critical upstream systems, limiting flow to non-critical downstream systems when required
Applications:
→ Ideal for chemical plants, water treatment, compressed air systems, and process lines requiring precise pressure control for safety and process stability.
Technical Specification
Brand: Z-Tide Co Ltd
Model: RFF
Width: 150.00 mm
Height: 85.00 mm
Depth: 150.00 mm
Weight: 2.00 kg
Valve / Product Type: Pressure Sustaining
Body Material: Stainless Steel
Port Size: 4 inch Flange DN100 , 5 inch Flange DN125 , 1/2 inch Flange DN15, 6 inch Flange DN150 , 3/4 Flange DN20, 1 inch Flange DN25, 11/4 inch Flange DN32, 11/2 inch Flange DN40, 2 inch Flange DN50, 21/2 inch Flange DN65 , 3 inch Flange DN80
Operation: Direct Acting
Pressure: 1 Bar, 1.2 Bar, 1.3 Bar, 1.4 Bar, 1.5 Bar, 1.6 Bar, 2 Bar, 2.5 Bar, 3 Bar, 3.5 Bar, 4 Bar, 4.5 Bar, 5 Bar, 5.5 Bar, 6 Bar, 6.5 Bar, 7 Bar, 7.5 Bar, 8 Bar, 8.5 Bar, 9 Bar, 10 Bar
Seals: NBR, FKM (Viton)
Media: Air, Fluid (Non Aggressive), Fluid (Slight Acid/Alkali), Gases (Non Aggressive), Gases (Slight Acid/Alakli), Oils + Fuels 50cSt Max, Water, Water (RO/Pure/Demin)
Options required: Manual Control
Orifice: 125mm, 150mm, 15mm, 20mm, 25mm, 32mm, 40mm, 50mm, 65mm, 80mm
