The Inner Workings of Vacuum Solenoid Valves Revealed

Vacuum solenoid valves are essential for precise airflow control in vacuum environments. These valves operate using electromagnetic principles. An electric current generates a magnetic field, which then activates a valve mechanism, either permitting or blocking airflow. Understanding this basic principle is crucial for comprehending the intricacies of their operation.

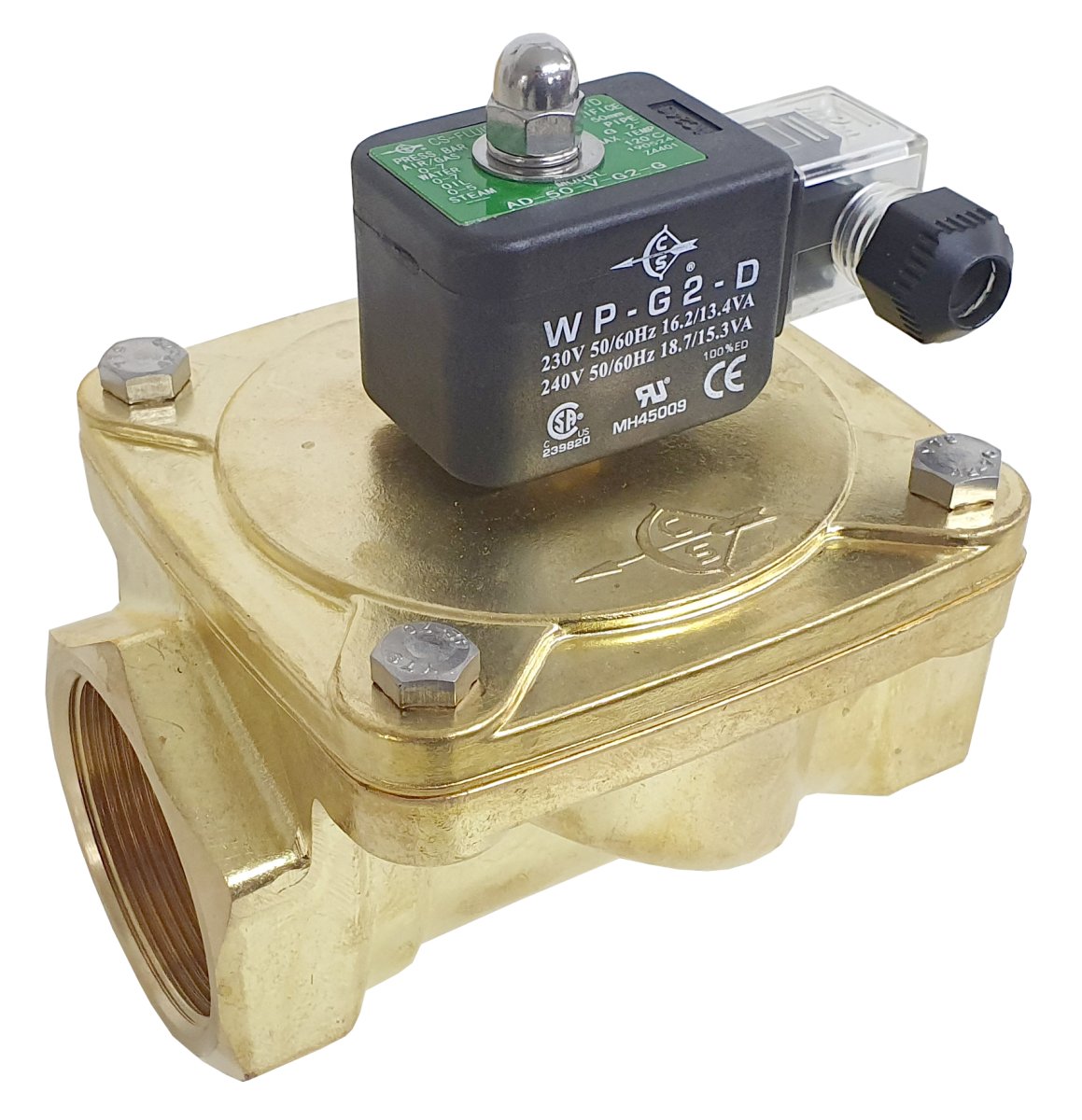

Core Components and Their Function

A vacuum solenoid valve comprises several key components working together. The solenoid coil, when energized, produces the magnetic field that drives the valve's action. This magnetic field interacts with a plunger or armature, causing it to move and open or close the valve. The valve body houses these components and provides the pathway for airflow. A critical component, the seal, ensures an airtight closure when the valve is off, preventing leaks and maintaining the required vacuum level.

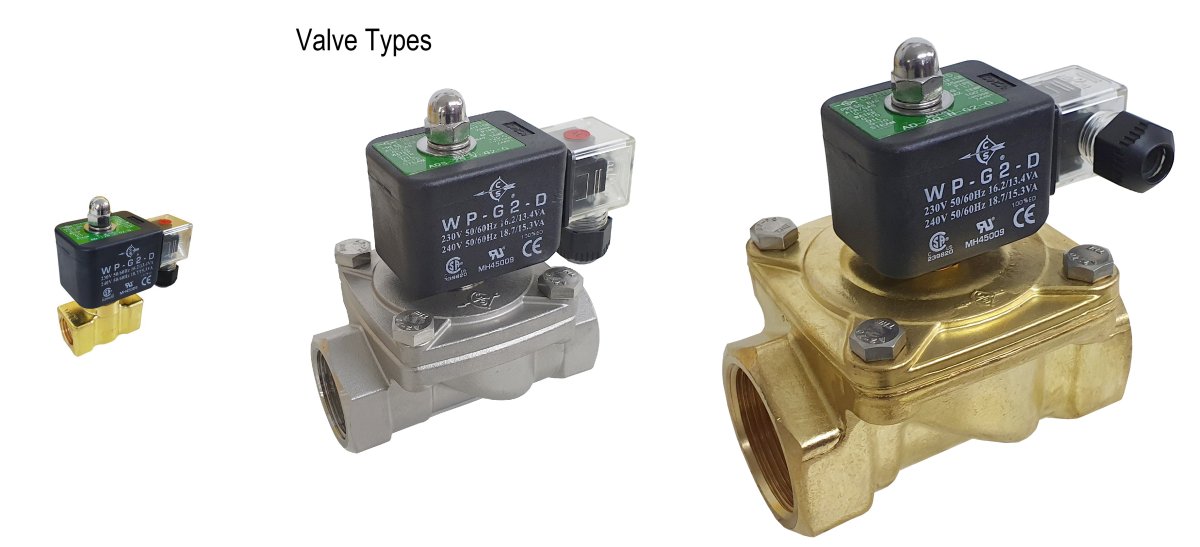

Direct-Acting vs. Pilot-Operated Valves

Vacuum solenoid valves are broadly classified into two types: direct-acting and pilot-operated. Direct-acting valves rely solely on the solenoid's magnetic force for actuation. This results in a simpler design and faster response time. However, they are typically limited to lower pressure differences.

Pilot-operated valves, conversely, use a small amount of system pressure to aid in opening and closing the valve. This allows them to handle higher pressures and greater flow rates. Think of it like using a small lever to control a large gate; the lever (pilot) uses system pressure to move the gate (main valve).

Vacuum Solenoid Valves in UK Manufacturing

The growing demand for precision and automation in UK industries has led to increased adoption of vacuum solenoid valves across various applications. This includes sectors like semiconductor manufacturing, pharmaceuticals, and analytical instruments, where precise vacuum control is essential.

For instance, in semiconductor fabrication, these valves are crucial for maintaining the necessary vacuum conditions for delicate processes such as thin-film deposition. The robust design and reliable performance of these valves make them well-suited to the demanding requirements of modern manufacturing.

This reliability contributes to the expanding vacuum valve market in the UK. The market is projected to experience a 6.7% CAGR between 2022 and 2028, demonstrating the increasing importance of these components in advanced manufacturing. You can explore this topic further here. This growth underscores the vital role vacuum solenoid valves play in maintaining the UK's competitiveness in these high-tech sectors.

Powering UK Industries: Vacuum Solenoid Valve Applications

Vacuum solenoid valves are essential components in many UK industries, providing precise control of vacuum systems. From maintaining sterile environments in pharmaceutical production to optimizing packaging in food factories, these valves play a vital role. Let's explore some key sectors where they are making a significant impact.

Precision Engineering in Semiconductor Manufacturing

In the UK's semiconductor sector, vacuum solenoid valves are crucial for wafer fabrication. They help create and maintain the ultra-clean vacuum environments required for processes like thin-film deposition and etching. Even microscopic dust can compromise microchip integrity, so the valves' rapid response times and reliable operation are essential for preventing contamination.

Maintaining Sterility in Pharmaceutical Production

The pharmaceutical industry requires the highest hygiene and precision standards. Vacuum solenoid valves are critical for sterilization, ensuring equipment and environments remain contaminant-free. They are commonly used in freeze-drying systems and handling sterile powders and liquids. Their corrosion resistance and ability to withstand repeated sterilization make them perfect for this sector. Check out our guide on Stainless Solenoid Valves.

Streamlining Packaging and Food Processing

Vacuum solenoid valves improve packaging efficiency and extend product shelf life in food production. By creating and regulating vacuum in packaging machines, these valves are essential for processes like vacuum sealing. They also contribute to better hygiene by minimizing manual handling in automated systems for delicate food items.

Emerging Applications in Green Energy

The UK's focus on green technologies presents new opportunities for vacuum solenoid valves. In solar panel manufacturing, they control vacuum chambers used for thin-film deposition. They also manage gas flow in fuel cell systems within the emerging hydrogen technologies sector. The infographic below illustrates key performance parameters: response time, operating pressure range, and flow rate.

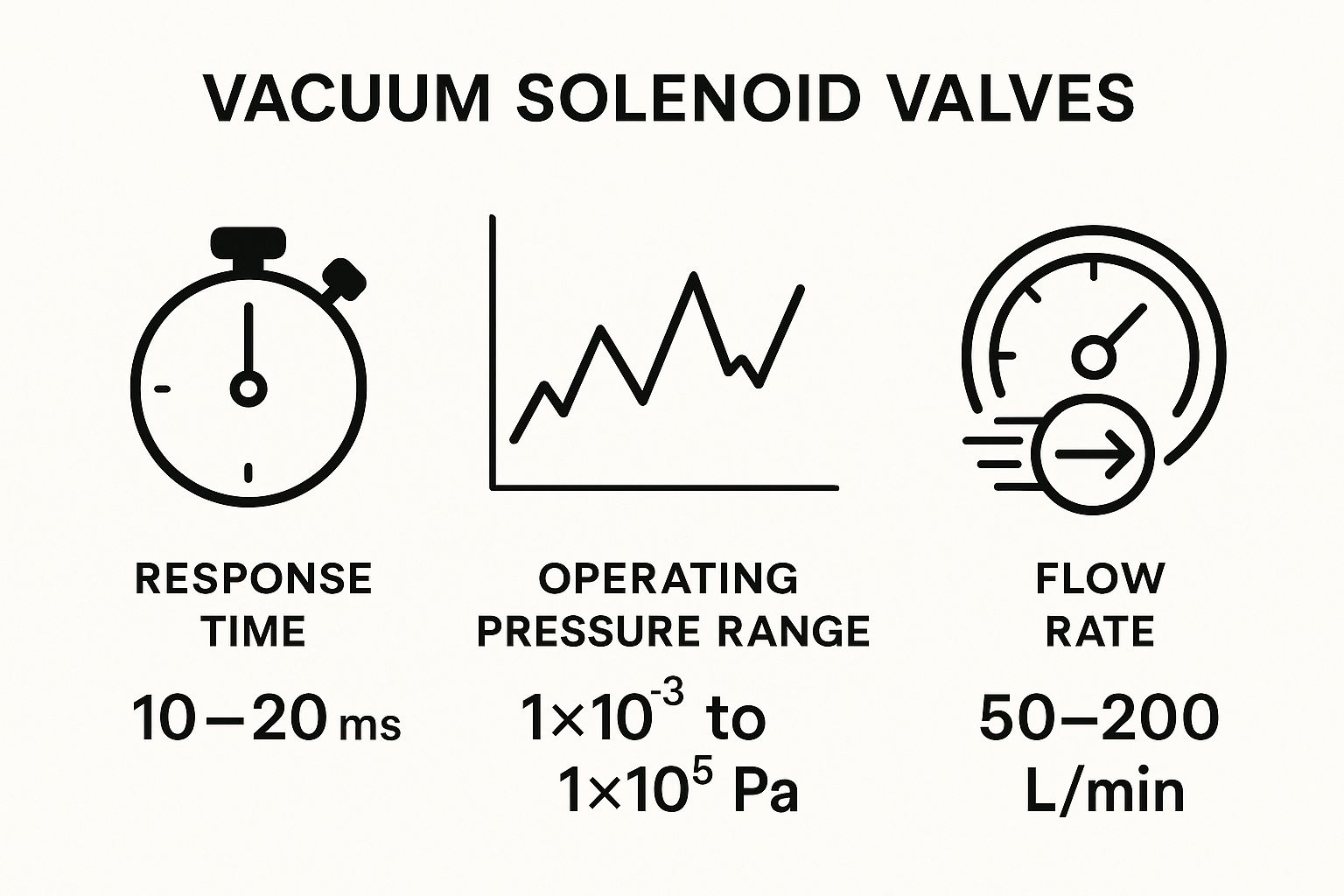

These valves typically react quickly (10-20ms), operate across a broad pressure range (1×10⁻³ to 1×10⁵ Pa), and handle substantial flow rates (50-200 L/min), making them well-suited for various applications requiring precise control.

The following table summarizes the applications and benefits of vacuum solenoid valves across several UK industries.

Vacuum Solenoid Valve Applications by UK Industry

This table outlines the primary applications and benefits of vacuum solenoid valves across major UK industrial sectors

Industry	Primary Applications	Key Benefits	Common Valve Types
Semiconductor Manufacturing	Thin-film deposition, etching, wafer fabrication	Maintaining ultra-clean vacuum environments, preventing contamination	High-speed, corrosion-resistant valves
Pharmaceutical Production	Sterilization processes, freeze-drying, handling sterile materials	Ensuring hygiene and sterility, corrosion resistance, repeated sterilization capability	Sanitary, corrosion-resistant valves
Food Processing & Packaging	Vacuum packaging, vacuum sealing, automated handling	Extending shelf life, improving packaging efficiency, enhanced hygiene	Food-grade, hygienic valves
Green Energy (Solar & Hydrogen)	Thin-film deposition in solar panel manufacturing, gas flow control in fuel cells	Precise process control, enabling sustainable manufacturing practices	High-precision, chemically inert valves

This table highlights how different industries leverage the unique capabilities of vacuum solenoid valves to achieve specific operational goals, from maintaining sterile environments to enabling sustainable practices.

The growing demand for automation and energy efficiency is fueling the UK's solenoid valve market. The market is projected to grow at a CAGR of 4.3% from 2025 to 2035. This growth is driven by government initiatives promoting sustainability and stringent environmental regulations. Find more detailed statistics here. From water treatment plants to North Sea oil and gas operations and the expanding offshore wind sector, advanced solenoid valves are essential for optimizing performance and meeting environmental standards. You might be interested in: How to Master Vacuum Applications. This growth reflects a broader European trend toward sustainable industrial processes. Vacuum solenoid valves play a crucial role in enabling this transition through precise process control and automation.

Choosing the Perfect Vacuum Solenoid Valve

Selecting the right vacuum solenoid valve can be a complex process. A mismatch between the valve and its intended application can lead to wasted time, resources, and ultimately, money. This section clarifies the essential factors to consider when choosing a vacuum solenoid valve, particularly for applications within the UK.

Key Performance Parameters

Several key parameters significantly influence the performance of a vacuum solenoid valve. Vacuum level capability indicates the lowest pressure the valve can reliably maintain. Flow capacity, measured in litres per minute, determines the volume of air the valve can handle. Lastly, response time, measured in milliseconds, indicates how quickly the valve reacts to control signals. Understanding these three parameters is crucial for designing an efficient and effective system.

Material Selection and UK Standards

The materials used in constructing the valve directly impact its durability and suitability for different operating environments. Some materials offer superior corrosion resistance, which is particularly important for applications involving harsh chemicals or outdoor installations subject to the UK's varied weather conditions. Furthermore, the valve's electrical specifications must comply with UK standards to guarantee safety and compatibility with existing systems. This involves verifying voltage and current requirements.

Sizing for Efficiency

Properly sizing the valve is vital for maximizing efficiency. An undersized valve restricts flow, potentially damaging equipment. Conversely, an oversized valve wastes energy, leading to increased operational costs. Consulting with experienced UK engineers can provide invaluable guidance on valve sizing and selection, helping avoid costly errors and ensuring optimal performance.

Before we discuss more practical tips, let's take a look at the critical selection parameters summarized in the table below.

The following table, "Vacuum Solenoid Valve Selection Parameters," provides a detailed overview of the specifications you should consider when choosing a valve for your specific needs.

Selection Parameter	Measurement Units	Typical Range	Considerations
Vacuum Level Capability	Torr	0.1 - 760	The required ultimate vacuum for your application.
Flow Capacity	Litres per minute	0.1 - 1000+	The volume of air that needs to be processed.
Response Time	Milliseconds	1 - 100	The required speed of the valve’s operation.
Material Compatibility	-	Varies	Compatibility with process media and environment.
Voltage	Volts	12, 24, 110, 230	Compatibility with existing electrical systems.
UK Standards Compliance	-	CE, RoHS	Essential for safety and regulatory compliance.

As this table highlights, a balance between performance parameters, material compatibility, and regulatory compliance is crucial. Understanding these aspects will help you select the appropriate valve for your application.

Examples of Successes and Failures

Real-world examples offer practical lessons in valve selection. A successful application might involve selecting a valve with a rapid response time for high-speed packaging. In contrast, a failure might result from using a valve not suited for corrosive materials in a chemical processing plant. Analyzing these scenarios provides valuable insights for informed decision-making. Further information on vacuum applications can be found in this article: How to Master Vacuum Applications.

Balancing Performance and Cost-Effectiveness

Choosing the ideal vacuum solenoid valve involves balancing performance requirements and budget constraints. High-performance valves might have higher upfront costs but often offer long-term savings through increased efficiency and reduced maintenance. Therefore, it's crucial to consider the total cost of ownership, encompassing energy consumption, maintenance expenses, and potential downtime costs.

Practical Tips for Choosing the Right Valve

Here's a summary of practical tips for selecting the right vacuum solenoid valve:

• Define Your Application Requirements: Clearly define the necessary vacuum level, required flow rate, and desired response time.

• Consider the Operating Environment: Select materials compatible with the application’s temperature, pressure, and potential chemical exposure.

• Consult With Experts: Seek advice from experienced UK engineers or suppliers for expert guidance on valve selection and sizing.

• Check UK Standards Compliance: Ensure the valve’s electrical specifications meet all relevant UK regulations.

• Evaluate the Total Cost of Ownership: Consider not just the initial purchase price, but also long-term costs associated with energy consumption and maintenance.

This diligent approach helps avoid costly mistakes and ensures you select the optimal vacuum solenoid valve for your specific needs. By understanding key parameters and applying practical advice, you can guarantee optimal performance and long-term reliability. For more details on general-purpose solenoid valves, see this article: General-Purpose Solenoid Valves.

Installation Mastery and Maintenance Strategies

Even top-tier vacuum solenoid valves require proper installation and maintenance to perform reliably. This section offers practical advice, sourced from experienced UK system integrators, on maximizing the performance and lifespan of your vacuum solenoid valves.

Mounting Techniques for Optimal Performance

Secure mounting is crucial for preventing vibrations that can prematurely wear down components. A stable valve is the bedrock of a reliable vacuum system.

• Use appropriate brackets and supports: Ensure the valve is firmly secured to minimize movement during operation.
• Consider orientation: The valve's position can impact its performance. Refer to the manufacturer's guidelines for optimal mounting orientation.
• Avoid stress on connections: Prevent strain on pneumatic lines and electrical connections during installation to avoid leaks and electrical issues.

Proper mounting ensures a stable and efficient system.

Electrical Connection Methods Compliant with UK Standards

Correct electrical connections are paramount for both performance and safety. Adhering to UK standards ensures safe and effective operation.

• Proper grounding: Grounding protects against electrical shocks and safeguards equipment.
• Use of appropriately sized wiring: Undersized wiring can overheat, creating a fire hazard.
• Compliance with BS 7671: This standard governs electrical installations in the UK and should be followed diligently.

Following these guidelines ensures safety and optimized valve function.

Pneumatic Line Installation Best Practices

Properly installed pneumatic lines significantly affect valve performance and longevity. Careful installation prevents contaminants and leaks.

• Use appropriate tubing material: The tubing material should match the application's temperature and pressure requirements.
• Ensure proper sealing: Use appropriate fittings and sealant to prevent leaks, which can compromise vacuum levels.
• Minimize the length of lines: Shorter lines reduce pressure drop and improve response time.

These practices not only enhance performance but also extend the valve's operational life, ultimately saving money.

Preventive Maintenance Routines

Regular maintenance is key to maximizing valve lifespan and minimizing downtime. Learn more in our article about How to Master Vacuum Applications.

• Regular inspection: Periodic checks for leaks, loose connections, and wear can prevent bigger issues.
• Cleaning: Keep the valve free of debris, especially in dusty environments.
• Testing: Regularly test valve functionality to catch potential problems early.

Proactive maintenance prevents minor problems from escalating.

Managing Moisture in the UK Climate

The UK's damp climate requires specific measures to prevent moisture-related problems in vacuum systems. Excess moisture can lead to corrosion and malfunctions.

• Implementing effective filtration: Install filters to remove moisture from the air supply.
• Using moisture-resistant materials: Choose corrosion-resistant valves and tubing.

These steps ensure reliable performance and extend the lifespan of your valves in the UK's challenging climate.

Scheduling Maintenance to Minimize Production Disruptions

Strategic maintenance planning reduces downtime and keeps operations running smoothly. A proactive approach is essential.

• Scheduled downtime: Conduct routine maintenance during planned production breaks.
• Keeping spare parts on hand: Having spare parts readily available minimizes repair time.

Proactive maintenance keeps your vacuum solenoid valves operating at peak performance for years to come.

Smart Vacuum Solenoid Valves: The Industry 4.0 Transformation

The future of manufacturing in the UK, and indeed worldwide, hinges on automation and data-driven improvements. This means components like vacuum solenoid valves are becoming more advanced. This move towards smarter technology is a key part of the Industry 4.0 movement. Let's explore how these smart valves are changing pneumatic systems in various UK industries.

Real-Time Monitoring and Predictive Maintenance

Smart vacuum solenoid valves, equipped with sensors and network connectivity, provide immediate insights into system performance. Parameters like pressure, flow rate, and temperature can be continuously monitored. This constant data flow allows for predictive maintenance, identifying potential problems before they lead to expensive downtime.

To keep your smart valves running smoothly, a proactive website maintenance plan is recommended. This helps minimize disruptions and maximizes the lifespan of these essential components.

Remote Operation and Increased Efficiency

Smart valves also offer remote operation. This allows for adjustments and control from anywhere with internet access. This is especially useful in large or complex facilities where physical access to valves can be challenging.

Furthermore, smart vacuum solenoid valves contribute to energy efficiency. They optimize air consumption and minimize waste, leading to lower operating costs and supporting sustainability efforts in the UK.

Case Studies of UK Factories Embracing Smart Technology

UK factories are already seeing positive results from integrating smart vacuum solenoid valves. One automotive manufacturer reported a 15% reduction in energy consumption after installing smart valves in their pneumatic systems.

A food packaging factory saw a 10% increase in production uptime thanks to the predictive maintenance capabilities of smart valve technology. These real-world examples highlight the advantages of investing in smart solutions.

Market Growth and Industry Trends

The global vacuum valve market, including the UK, is poised for substantial growth. From 2024 to 2030, the market is projected to expand at a CAGR of 8.9%, reaching an estimated USD 2.73 billion by 2030. Discover more insights about the vacuum valve market here. This growth is driven by increased automation and the adoption of IoT-integrated smart vacuum valves in sectors like semiconductor manufacturing, pharmaceuticals, and thin-film coatings.

Integration with Factory Automation Systems

Smart vacuum solenoid valves integrate smoothly with larger factory automation systems. This allows for data sharing and centralized control, which improves processes and overall system performance. This connectivity is a fundamental aspect of Industry 4.0, enhancing the interconnectedness of modern manufacturing.

Cybersecurity Considerations for Networked Pneumatic Systems

Cybersecurity is crucial for any networked system. Protecting smart vacuum solenoid valves from unauthorized access and cyber threats is vital for maintaining the integrity and reliability of pneumatic systems.

Implementing strong security measures, like firewalls and intrusion detection systems, is essential for minimizing these risks. This proactive approach safeguards critical infrastructure and operations from potential disruption.

The Future of Vacuum Solenoid Valve Innovation

The vacuum solenoid valve market is constantly evolving, driven by the need for greater efficiency, reliability, and integration within increasingly automated systems across the UK. This section explores emerging trends shaping the future of this technology and their impact on various industries.

Miniaturization and Increased Power

One key trend is the miniaturization of vacuum solenoid valves. This is particularly useful in the UK's often space-constrained manufacturing environments. Smaller valves allow for more compact system designs without sacrificing performance.

Advancements in micro-engineering are leading to more compact valves that handle higher pressures and flow rates than their larger predecessors. This means smaller, more powerful valves are becoming available for complex applications.

Enhanced Energy Efficiency for a Greener UK

Breakthroughs in energy efficiency are transforming the vacuum solenoid valve landscape. These improvements align with the UK's carbon reduction goals and can significantly reduce operational costs.

New valve designs incorporating low-power solenoids and optimized flow paths minimize energy consumption without sacrificing performance. This results in lower electricity bills and a smaller carbon footprint.

Advanced Materials and Extended Lifespan

Advancements in materials science play a crucial role. New materials offer increased resistance to corrosion and wear, extending the lifespan of valves and reducing maintenance.

This is especially important in harsh industrial environments. These materials can also withstand higher temperatures and pressures, creating new application possibilities.

Integration of Smart Technology and Industry 4.0

The integration of smart technology in vacuum solenoid valves is part of the Industry 4.0 evolution. Technology Promotional Products for Modern Brands offers more information on technology’s overall impact. Integrated sensors within these valves provide real-time performance data, enabling predictive maintenance and optimizing system operation.

These smart valves can be seamlessly integrated into broader factory automation systems, offering greater control and efficiency. Multi-function designs, combining multiple functionalities into a single valve, are also emerging, streamlining system complexity.

Competitive Advantages for UK Manufacturers

These innovations offer competitive advantages for UK manufacturers. Implementing more efficient, reliable, and adaptable pneumatic systems can increase productivity, reduce downtime, and improve product quality. As automation continues to transform industries, the strategic implementation of advanced vacuum solenoid valve technology will be essential for success.

Ready to explore high-performance vacuum solenoid valves? Visit Solenoid Valve World for a comprehensive selection and expert technical support based in the UK. They offer free next-day UK delivery, flexible payment options, and a wide range of valves for various applications.
