Stainless pressure reducing valve 0.02-0.2 Bar REMT REMF

£1,936.30

£2,640.40 incl. VAT
£1,613.58 ex. VAT

Brand: Z-Tide Valves

Model: REMT, REMF

Stock: 0 in stock

Read Full Description

Description

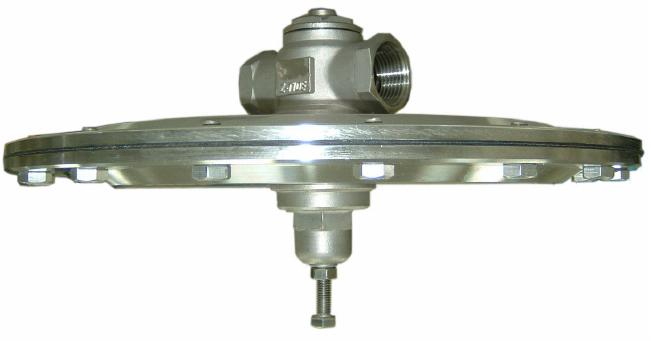

Stainless steel micro Pressure Reducing Valve Z Tide REMT.
Function: direct acting pressure reducing valve PRV
Inlet pressure: 5 Bar maximum
Pressure reducing range: 0.02 to 0.2 Bar, displayed by stainless pressure gauge (Included).
Port thread: 1/2, 3/4, 1, 11/2 or 2 BSPT, option NPT or BSPP (G) Thread
Port Flange: DN15, DN20, DN25, DN40 or DN50 PN16 Flange, option ANSI150Lb or JIS10K
Body: 316 Stainless steel
Seal: NBR standard, option FKM, EPDM
Media: pure water, RO water, oil, air, gas and fluids compatible with materials of construction.
Media temperature: -15°C to +80°C
Test pressure: 12 Bar

The REMT, REMF pressure control gate is a balanced-pressure design with a large diaphragm offering highly sensitive and accurate pressure control regardless of unstable and fluctuating inlet pressures, with the outlet pressure displayed by the external pressure gauge. The UH ring sealing design of the REM series and large diaphragm surface area offers greatly improved pressure regulation and is the market leader for precise micro pressure control.

Technical Specification

Brand: Z-Tide Valves

Model: REMT, REMF

Width: 310.00 mm

Height: 310.00 mm

Depth: 70.00 mm

Weight: 2.00 kg

Body Material: Stainless Steel

Port Size: 1 Inch, 1/2 Inch, 11/2 Inch, 11/4 Inch, 2 Inch, 3/4 Inch

Operation: Direct Acting

Seals: NBR, FKM (Viton)

Media: Air, Fluid >50cSt (Non Aggressive), Fluid >50cSt (Slight Acid/Alkali), Gases (Non Aggressive), Gases (Slight Acid/Alakli), Oils + Fuels >50cSt Max, Water, Water (RO/Pure/Demin)

Orifice: 15mm, 20mm, 25mm, 32mm, 40mm, 50mm

Valve / Product Type: Pressure Reducing

Pressure Maximum: 0.02 Bar (20 mBar), 0.2 Bar (200 mBar)
