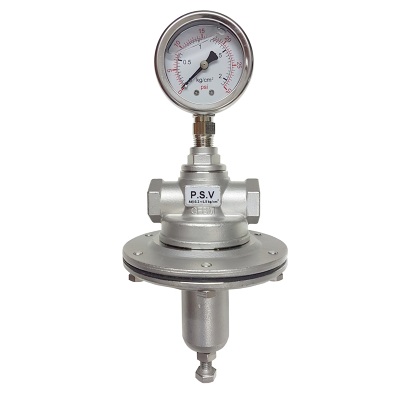

The Z-Tide Industrial RELT Series is a precision direct-acting low pressure reducing valve designed to provide highly accurate downstream pressure control in low-pressure industrial, water treatment and process applications. Manufactured from 316 stainless steel with a balanced piston and large diaphragm design, the RELT Series maintains exceptionally stable outlet pressure even when inlet pressure fluctuates. Available in threaded BSPT sizes from ½" to 2", with optional NPT or BSPP (G) threads, these valves are ideal for RO systems, laboratory installations, chemical processing and sensitive low-pressure fluid control.
Valve function & operation
Function:
Direct-acting low pressure reducing valve
Automatic downstream pressure control
Operating principle: Balanced piston and large diaphragm
Automatically maintains a stable low outlet pressure
Pressure gauge displays outlet pressure
Port sizes: ½", ¾", 1", 1½" and 2" BSPT
Optional threads:
NPT
BSPP (G)
Mounting position: Any position
Pressure & regulation
Maximum inlet pressure: 10 Bar
Pressure tested: 16 Bar
Standard outlet pressure adjustment range: 0.3 to 1.5 Bar
✓ Heavy-duty 316 stainless steel construction for corrosive industrial environments
✓ Compact direct-acting design requires no external pilot system
Applications
Reverse osmosis (RO) systems
Water treatment plants
Laboratory installations
Chemical processing
Pharmaceutical manufacturing
Industrial compressed air systems
Low-pressure process water
OEM equipment
Sensitive pressure control applications
General industrial fluid regulation
Manufacturing quality

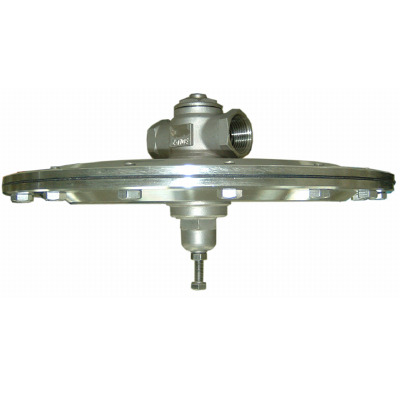

Manufactured using heavy-duty 316 stainless steel with precision-machined internal components, the Z-Tide Industrial RELT Series has been engineered for applications requiring highly accurate low-pressure regulation and long-term reliability. The balanced piston and large diaphragm design provide exceptional sensitivity while maintaining a stable downstream pressure despite normal inlet pressure fluctuations. Precision UH-ring sealing enhances accuracy, minimises leakage and provides excellent durability, while the supplied stainless steel pressure gauge allows simple commissioning and continuous monitoring of outlet pressure. A special micro-pressure version with adjustment down to approximately 0.02 Bar is also available for ultra-low pressure applications.
Ordering information
Simply select the required port size, outlet pressure range and seal material before adding the valve to your basket. Optional NPT or BSPP (G) threads, Duplex stainless steel construction, FKM or EPDM seals, higher pressure adjustment ranges and a special micro-pressure version are available on request.
Pressure:
0.3 Bar (300 mBar), 0.4 Bar (400 mBar), 0.5 Bar (500 mBar), 0.6 Bar (600 mbar), 0.7 Bar (700 mBar), 0.8 Bar (800 mBar), 1 Bar, 1.2 Bar, 1.3 Bar, 1.4 Bar, 1.5 Bar
