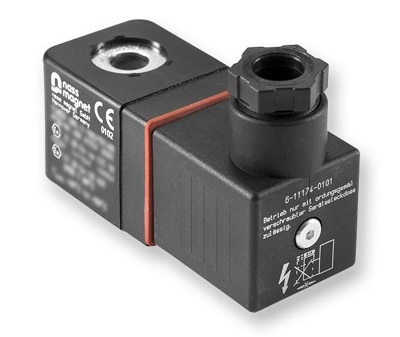

Nass Magnet ATEX Ex ia & Ex tb Solenoid Coil Type 1262

The Nass Magnet Type 1262 intrinsically safe solenoid operator is designed for hazardous gas and combustible dust environments where ATEX and IECEx certified equipment is required. Compatible with Nass Magnet System 8 valve and armature assemblies, the Type 1262 combines Ex ia intrinsic safety for gas atmospheres with Ex tb protection for dust hazardous areas in one compact operator.

Manufactured with a robust thermoset resin encapsulated housing and DIN A electrical connection, the Type 1262 provides reliable 24V DC operation with low 1.6W power consumption and 100% continuous duty rating for demanding industrial process applications.

✓ ATEX & IECEx certified

✓ Ex ia intrinsically safe for gas hazardous areas

✓ Ex tb protection for combustible dust atmospheres

✓ Suitable for Zone 1 gas and Zone 21 dust applications

✓ System 8 compatible

✓ 24V DC low power operation (1.6W)

✓ Thermoset resin encapsulated housing

✓ DIN A electrical connection

✓ 100% continuous duty rated

Type: ATEX Ex ia & Ex tb Solenoid Operator

Model: Type 1262

System: System 8

Gas: Ex ia IIC / IIB T6 / T4 Gb

Dust: Ex tb IIIC T80°C / T130°C Db

PTB 09 ATEX 2001

IECEx Certificate

IECEx PTB 13.0009

Electrical Connection: DIN A

Housing Material: Thermoset resin

Voltage: 24V DC

Power Consumption: 1.6 Watts

Voltage Tolerance: ±10%

Power Level: 1

Overall Width: 30 mm

Ingress Protection: IP65 with correctly assembled connector

108-030-1160 – 24V DC – T6 / T80°C

108-030-1162 – 24V DC – T4 / T130°C

T6 Version (108-030-1160)

Ambient Temperature: −40°C to +50°C

Maximum Media Temperature: +70°C

T4 Version (108-030-1162)

Ambient Temperature: −40°C to +85°C

Maximum Media Temperature: +80°C

Category IIC

Ui = 28V

Ii = 115mA

Pi = 1.6W

Li = 0

Ci = 0

Category IIB

Ui = 32V

Ii = 195mA

Pi = 1.6W

Li = 0

Ci = 0

The Type 1262 must only be connected to a certified intrinsically safe circuit using an approved isolating barrier or galvanic isolator.

Suitable for hazardous area process control including:

✓ Chemical processing

✓ Oil & gas installations

✓ Petrochemical plants

✓ Pharmaceutical manufacturing

✓ Dust handling systems

✓ Grain processing

✓ Industrial gas systems

✓ Hazardous process automation

The Type 1262 is designed exclusively for use with compatible Nass Magnet valve and armature assemblies. Installation is permitted in any orientation, although mounting with the solenoid coil facing upwards is recommended. For dust hazardous areas, only the supplied plug connector should be used, and installation must comply with IEC/EN 60079-14. The operator must always be powered via a certified intrinsically safe barrier or isolator.
