316 Stainless steel air filter regulator lubricators.

The Shako range of 316 stainless air treatment equipment offers the highest levels of performance, even for corrosive environments and high pressure applications. The robust regulator piston design can withstand high pressure air up to 60 Bar inlet, whilst maintaining high levels of accuracy between +/- 2% FSD (8-12 Bar) or +/- 3% FSD (12 to 28 Bar).

316 Stainless steel air filter, regulator and lubricator Shako 1/4 Miniature Series

• Port Size: 1/4" BSP thread (optional NPT or Rc thread available)
• Inlet Pressure: Maximum 30 Bar
• Outlet Pressure: Adjustable from 0 to 20 Bar
• Pressure Tested: Up to 30 Bar
• Construction:

- Body: 316 stainless steel

- Bowl: 316 stainless steel

- Regulator: 316 stainless steel piston

• Filter Element: 5-micron 316 stainless steel (optional 40-micron available)
• Drain: Semi-automatic (manual drain option available)
• Accuracy: 0 to 8 Bar: ±3% Full Scale Deflection (FSD), 8 to 12 Bar: ±2% FSD and 12 to 20 Bar: ±3% FSD

• Flow: Up to 1850 L/min
• Capacity: Filter Bowl 105cc,Lubricator Bowl 125cc
• Operating Temperature: -10°C to +60°C
• Weight: 2660g
• Supplied Accessories: Stainless steel pressure gauge, mounting bracket, plug, and 2 mounting screws
• Compliance Options:

- Available with FDA-compliant REACH 579 food-grade lubricant.

- Can be supplied according to ATEX Annex 1 Ex II 2GD c T6 standards, with Verification Module Annex VIII of 2014/34/EU, harmonized standards EN ISO 80079-36:2016, EN ISO 80079-37:2016.

316 Stainless steel air filter, regulator and lubricator Shako 1/4, 3/8 and 1/2 Series

• Port Options: Available with BSP threads in sizes 1/4", 3/8", or 1/2". NPT or Rc threads are optional.
• Pressure Ratings:

- Inlet Pressure: Maximum 60 Bar

- Outlet Pressure: Adjustable from 0.5 to 12 Bar or 0.5 to 30 Bar

• Pressure Testing: Tested to withstand up to 60 Bar.
• Material Composition:

- Body: 316 stainless steel

- Bowls: 316 stainless steel

- Regulator: Piston made of 316 stainless steel

- Seals: Viton

- Filter Elements: Available in 5 or 40 microns, made of 316 stainless steel

• Drain Options: Semi-automatic, with optional manual or fully automatic (with fully automatic version rated up to 10 Bar max).
• Flow Rate: Available at 2080, 2200, or 2500 L/Min (ANR), depending on port size.
• Accuracy: 0 to 8 Bar: ±3% FSD, 8 to 12 Bar: ±2% FSD, 12 to 30 Bar: ±3% FSD


• Weight: 3840g
• Capacity: Filter Bowl: 110cc, Lubricator Bowl: 130cc


• Operating Temperature: -10°C to +70°C
• Packaging: Supplied boxed and fully assembled with a pressure gauge, blanking plug, mounting bracket, and 2 mounting screws.
• Compliance:

- Optional compliance with FDA standards, using REACH 579 food-grade lubricant

- Metallic parts conform to NACE Standard MR-01-75

- Can be supplied in accordance with ATEX Annex 1 Ex II 2GD c T6, Verification Module Annex VIII of 2014/34/EU, harmonized standards EN ISO 80079-36:2016, EN ISO 80079-37:2016.

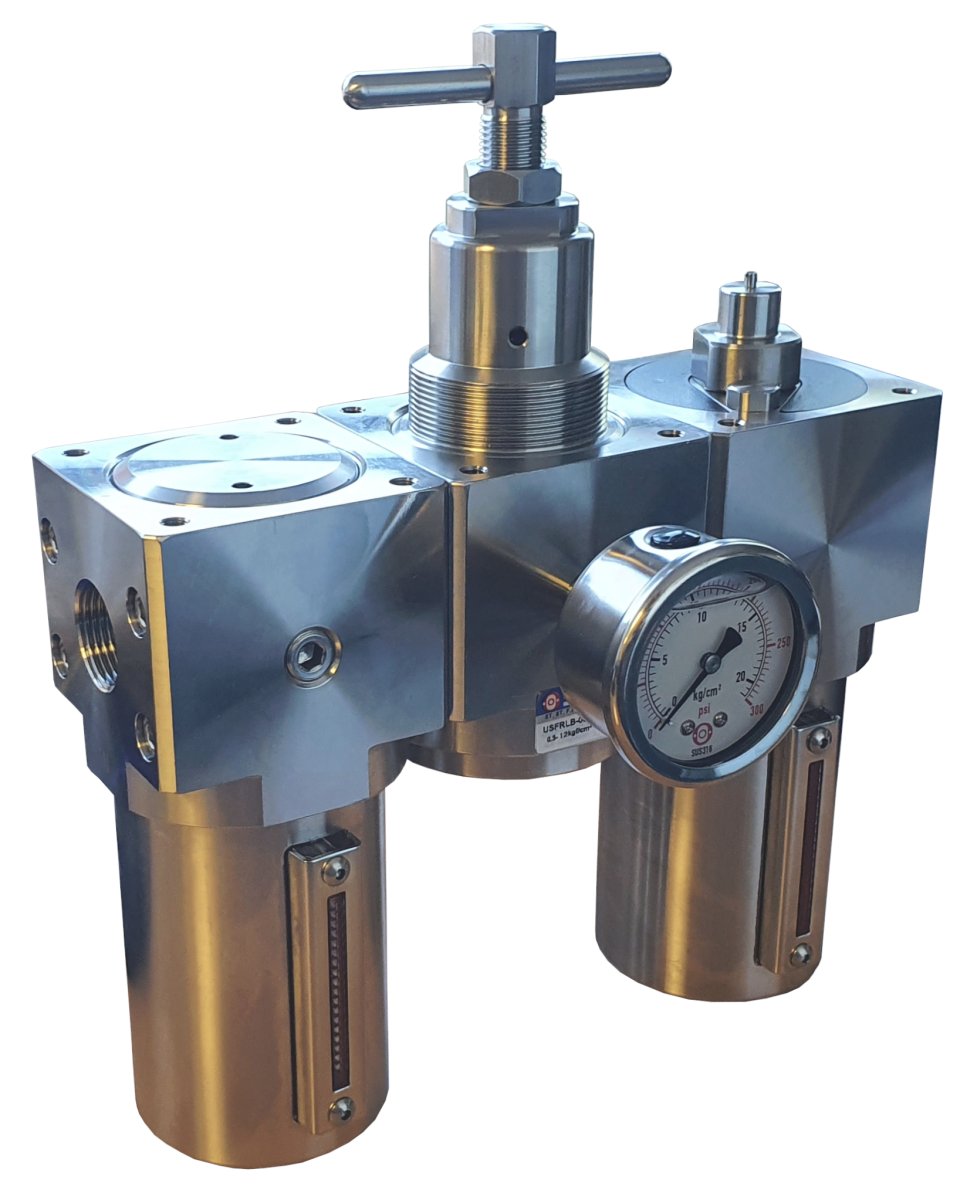

316 Stainless steel air filter, regulator and lubricator Shako 3/4 + 1 inch Series

Port Options: 3/4" or 1" BSP thread with options for NPT or Rc threads.

Inlet Pressure: Maximum: 60 Bar

Outlet Pressure: 0.5 to 12 Bar or 0.5 to 28 Bar

Test Pressure: 60 Bar

Filter Elements: 5-micron 316 stainless steel, with an optional 40-micron element available.

Drain Options: Semi-automatic drain, with optional manual or fully automatic drain (full automatic drain up to 10 Bar max).

Material Specifications:

• Body: 316 stainless steel
• Bowl: 316 stainless steel
• Regulator: Piston made from 316 stainless steel
• Spring: SUS303 for 0.5-12 Bar range, Alloy Steel for 12-28 Bar range
• Seals: Viton

Flow Rates (ANR):

• 7600 to 8000 L/min for 0.5 to 12 Bar, depending on port size.
• 15200 to 15600 L/min for 12 to 28 Bar, depending on port size.

Weight: 10,340g

Capacity: Filter Bowl: 200cc, Lubricator Bowl: 220cc

Accuracy: For 8 to 12 Bar: ±2% FSD, For 12 to 30 Bar: ±3% FSD

Operating Temperature Range: -10°C to +70°C

Optional Features:

• Bowl viewer (window) available for 0.5 to 12 Bar (USFRB only).

Packaging:

• Supplied fully assembled in a box with a pressure gauge, blanking plug, mounting bracket, and 2 mounting screws.

Compliance and Standards:

• Available with FDA-compliant REACH 579 food-grade lubricant.
• Metallic parts conform to NACE Standard MR-01-75.
• Can be supplied in accordance with ATEX Annex 1 Ex II 2GD c T6, Verification Module Annex VIII of 2014/34/EU, and harmonized standards EN ISO 80079-36:2016 and EN ISO 80079-37:2016.
