Muller Coax Valve Cross Reference Guide

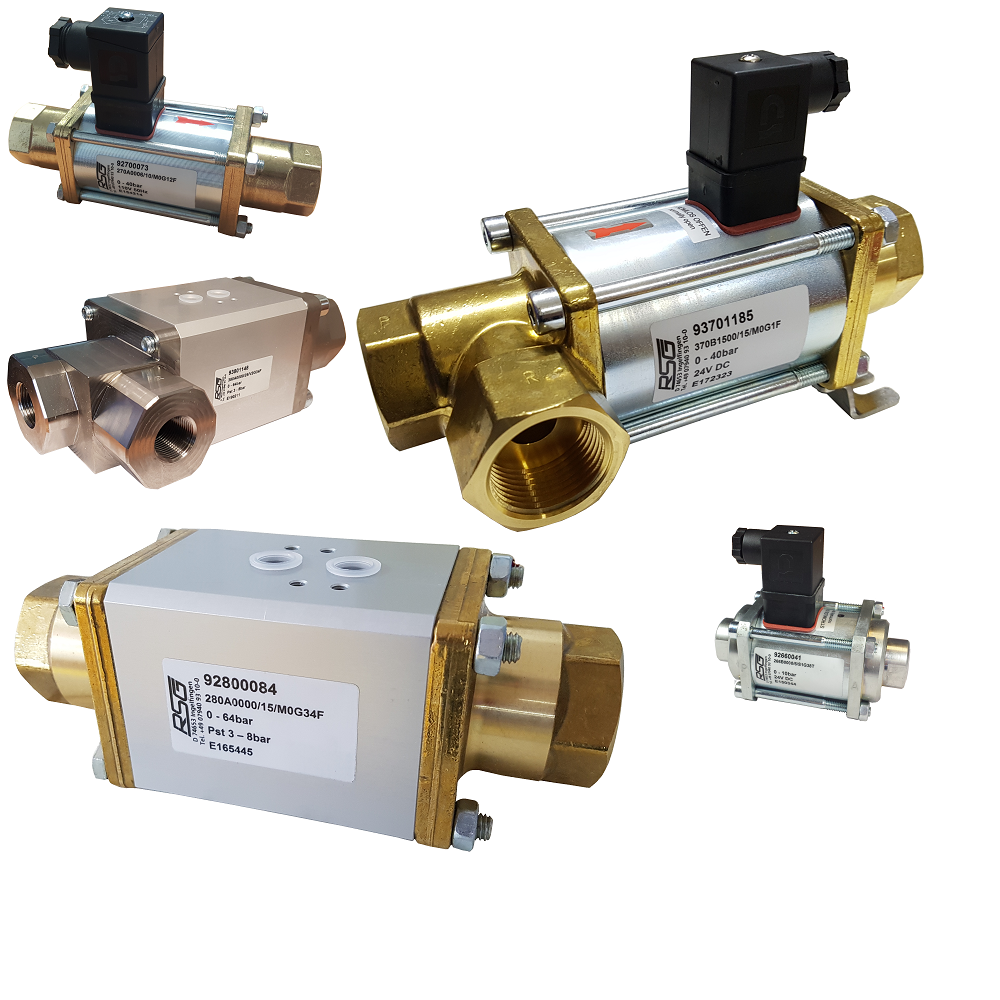

Coaxial Valves – High-Performance Solenoid Operated Valves for Demanding Applications

Coaxial Valves are engineered for high-flow, high-pressure applications where reliability and fast switching times are essential. Available now on Solenoid Valve World, these premium-quality coaxial solenoid valves offer exceptional flow characteristics, robust construction, and long service life – making them ideal for even the most demanding industrial environments.

Key Features of Coaxial Valves:

Direct-acting coaxial design for rapid opening and closing

Handles viscous, contaminated, or aggressive media with ease

High flow capacity with low pressure loss

Available for vacuum, gas, steam, liquids, or solids in suspension

Pressure ranges up to 300 bar (depending on model)

Constructed from durable brass, 304 + 316 stainless steel, or anodized aluminium

Single units, manifold assembly and custom designed units

Normally closed (NC) or normally open (NO) configurations

Optional ATEX certified models for hazardous environments

Applications:

Coaxial valves are trusted across industries such as:

Process control and automation

Chemical and petrochemical plants

Water and wastewater treatment

Power generation

Food and beverage processing

Pneumatic conveying and bulk handling systems

Ceramic industry

Why Choose RSG Coaxial Valves from Solenoid Valve World?

Direct access to genuine made in Germany coaxial valves with full specifications

Expert support to help you select the right valve for your application

Competitive pricing and fast worldwide delivery

Trusted supplier with global reach and technical expertise

Shop Coaxial Valves Online

Explore our complete range of coaxial valves and order online with confidence.

Explore our complete range of coaxial valves.

Part Numbers

Description

Search for Equivalents here.

VMK20

Coaxial Air Valve Brass 1/2-11/4 BSP 0-64 bar 2/2 Way

28020

VMK32

Coaxial Air Valve Brass 1 to 2" BSP 0-64 bar 2/2 Way

28032

VMK32DR

 Coaxial Air Valve Brass 1-11/2" BSP 0-64 Bar 3/2 Way

38032

VMK20DR

Coaxial Air Valve Brass 1/2-1 BSP 0-64 Bar 3/2 Way 38020

38020

VMK10DR

Coaxial Air Valve Brass 1/4-1/2 BSP 0-64 Bar 3/2 Way

38010

VMK10

Coaxial Air Valve Brass 1/4-3/4 BSP 0-64 bar 2/2 Way

28010

VMK40DR

Coaxial Air Valve Brass 11/2" BSP 0-64 Bar 3/2 Way

38040

VMK40

Coaxial Air Valve Brass 11/2-2" BSP 0-64 bar 2/2 Way

28040

VMK50DR

Coaxial Air Valve Brass 2" BSP 0 to 64 Bar 3/2 Way

38050

VMK50

Coaxial Air Valve Brass 2" BSP Port 0-64 bar 2/2 Way

28050

VMK25

Coaxial Air Valve Brass 3/4-11/2 BSP 0-64 bar 2/2 Way

28025

VMK25DR

Coaxial Air Valve Brass 3/4-11/4" 0-64 Bar 3/2 Way

38025

VMK15

Coaxial Air Valve Brass 3/8 to 1 BSP 0-64 bar 2/2 Way

28015

VMK15DR

Coaxial Air Valve Brass 3/8-3/4 BSP 0-64 Bar 3/2 Way

38015

MK32

Coaxial Solenoid Valve Brass 1 - 2" BSP 40 Bar 2 way

27032

MK32

Coaxial Solenoid Valve Brass 1 to 2" BSP 64 Bar 2 way

27132

MK32DR

Coaxial Solenoid Valve Brass 1-11/2" 0-40 bar 32 Way

37032

MK32DR

Coaxial Solenoid Valve Brass 1-11/2" 0-64 bar 32 Way

37132

MK40DR

Coaxial Solenoid Valve Brass 1-11/2" BSP 40 Bar 3 way

37040

MK20DR

Coaxial Solenoid Valve Brass 1/2-1" 0-40 bar 32 Way

37020

MK20DR

Coaxial Solenoid Valve Brass 1/2-1" 0-64 bar 32 Way

37120

MK20

Coaxial Solenoid Valve Brass 1/2-11/4 BSP 40 Bar 2 way

27020

MK20

Coaxial Solenoid Valve Brass 1/2-11/4" 64 Bar 2/2 way

27120

MK10DR

Coaxial Solenoid Valve Brass 1/4-1/2" 0-40 bar 32 Way

37010

MK10DR

Coaxial Solenoid Valve Brass 1/4-1/2" 0-64 bar 32 Way

37110

MK10

Coaxial Solenoid Valve Brass 1/4-3/4 BSP 40 Bar 2 way

27010

MK10

Coaxial Solenoid Valve Brass 1/4-3/4" 64 Bar 22 way

27110

MK40

Coaxial Solenoid Valve Brass 11/2" BSP 40 Bar 2/2 way

27040

MK50DR

Coaxial Solenoid Valve Brass 2" BSP 0-40 bar 32 Way

37050

MK50

Coaxial Solenoid Valve Brass 2" BSP 40 Bar 2/2 way

27050

MK25

Coaxial Solenoid Valve Brass 3/4 - 11/2" 40 Bar 2 way

27025

MK25

Coaxial Solenoid Valve Brass 3/4-11/2" 64 Bar 2/2 way

27125

MK25DR

Coaxial Solenoid Valve Brass 3/4-11/4" 40 bar 32 Way

37025

MK25DR

Coaxial Solenoid Valve Brass 3/4-11/4" 64 bar 32 Way

37125

MK15DR

Coaxial Solenoid Valve Brass 3/8 - 3/4" 64 bar 32 Way

37115

MK15

Coaxial Solenoid Valve Brass 3/8-1" 0-64 Bar 22 way

27115

MK15

Coaxial Solenoid Valve Brass 3/8-1" BSP 40 Bar 2 way

27015

MK15DR

Coaxial Solenoid Valve Brass 3/8-3/4" 40 bar 3/2 Way

37015
