3/8 Brass solenoid valve 0.1-16 Bar 2/2 way Normally Closed
£42.82
Description

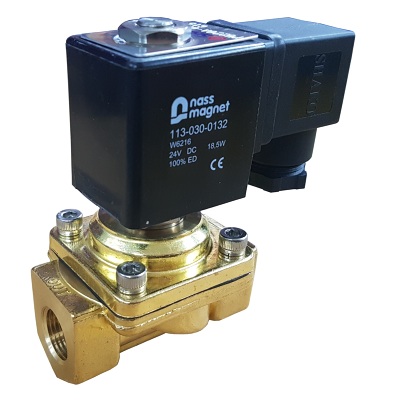

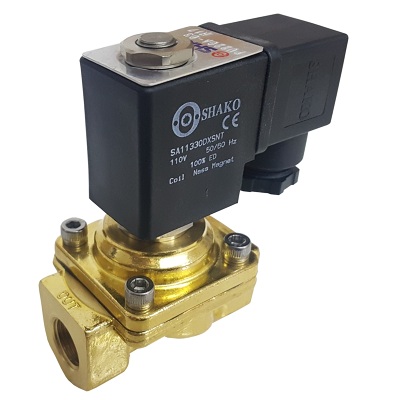

3/8 inch brass solenoid valve 0.1–16 bar – Shako PU220 (pressure assisted)
A pressure-assisted 2/2 way normally closed brass solenoid valve designed for higher flow applications where a small minimum pressure differential is available. Suitable for air, water, light oils and non-aggressive fluids and gases, offering reliable operation and compact construction.
Valve function & operation
→ Function: 2/2 way normally closed
→ Operation: Pressure assisted
→ Minimum operating pressure: 0.1 bar differential required
→ Thread: 3/8″ BSP standard
→ Optional threads: NPT
Pressure & performance
→ Pressure range:
→ → 0.1 to 16 bar (with 15 W coil)
→ Orifice size: 8.0 mm
→ Flow rate: 19 L/min (water @ 1 bar ΔP)
Construction & materials
→ Body: Brass
→ Internals: Stainless steel
→ Seals (standard): NBR
→ Optional seals: EPDM or Viton
Media compatibility
→ Air and inert gases
→ Water
→ Light oils
→ Non-aggressive fluids and gases
→ Media compatible with valve materials up to 50 °C
Temperature limits
→ Media temperature:
→ → NBR seals: −15 °C to +80 °C
→ → Viton seals: −10 °C to +180 °C
→ → EPDM seals: −5 °C to +130 °C
Coil & electrical
→ Coil power: 15 W
→ Connector: DIN 43650A
→ Protection class: IP65 with connector fitted
→ Duty cycle: 100% rated
Voltage options
→ 12V DC
→ 24V DC
→ 48V DC
→ 110V DC
→ 220V DC
→ 12V AC
→ 24V AC
→ 36V AC
→ 48V AC
→ 110V AC
→ 230V AC
→ 380V AC 50/60 Hz
Hazardous area option
→ ATEX Ex e mb IIC T4 / T130 °C
→ Suitable for hazardous area Zone 21 & 22
→ ATEX ratings apply with restricted pressure and temperature limits
Mechanical details
→ Includes M5 × 0.8 mounting holes
Applications
→ Water and fluid control systems
→ Fuel and oil handling
→ Industrial automation
→ Gas and air distribution where minimum pressure is available
Technical Specification
Brand: Shako Co Ltd
Model: PU22003AR
Width: 48.00 mm
Height: 101.00 mm
Depth: 66.50 mm
Weight: 0.74 kg
Valve / Product Type: Solenoid Valve
Body Material: Brass
Voltage: 110vAC, 110vDC, 12vDC, 200vDC, 230VAC, 24vAC, 24vDC, 36vAC, 48vAC, 48vDC
Port Size: 3/8 thread
Function: 2/2 Normally Closed
Operation: Pressure Assisted
Seals: EPDM, NBR, FKM (Viton)
Approval: ATEX,WRAS,IP etc: ATEX Exm, IP65
Media: Air, Fluid (Non Aggressive), Gases (Non Aggressive), Oils + Fuels 50cSt Max, Water
Orifice: 8.0mm
Pressure: 0.2 Bar (200 mBar), 0.3 Bar (300 mBar), 0.4 Bar (400 mBar), 0.5 Bar (500 mBar), 0.6 Bar (600 mbar), 0.7 Bar (700 mBar), 0.8 Bar (800 mBar), 1 Bar, 1.2 Bar, 1.3 Bar, 1.4 Bar, 1.5 Bar, 1.6 Bar, 2 Bar, 2.5 Bar, 3 Bar, 3.5 Bar, 4 Bar, 4.5 Bar, 5 Bar, 5.5 Bar, 6 Bar, 6.5 Bar, 7 Bar, 7.5 Bar, 8 Bar, 8.5 Bar, 9 Bar, 10 Bar, 12 Bar, 13 Bar, 14 Bar, 15 Bar, 16 Bar
