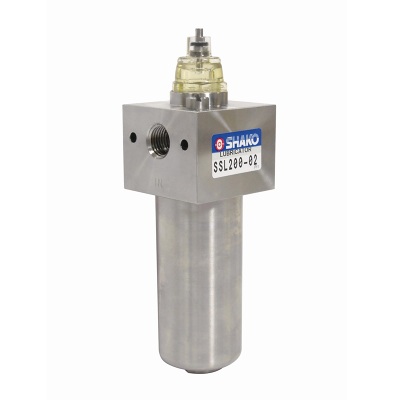

316 Stainless Steel Miniature Air Line Lubricator – Shako SSL200
Compact High Pressure Lubricator for Hygienic Pneumatic Systems
The Shako SSL200 Miniature Air Line Lubricator is a compact 316 stainless steel oil mist lubricator designed to provide reliable lubrication for pneumatic valves, cylinders, actuators and air tools operating in demanding industrial environments.
Manufactured entirely from 316 stainless steel, the SSL200 combines excellent corrosion resistance with precise oil mist lubrication, making it ideal for food processing, pharmaceutical production, semiconductor manufacturing, chemical plants and offshore installations.
Its compact size, high flow capacity and hygienic construction make it an excellent choice where installation space is limited without compromising lubrication performance.
Lubrication System
The SSL200 produces a finely atomised oil mist which is carried throughout the compressed air system, providing continuous lubrication to downstream pneumatic equipment.
The adjustable oil feed allows lubrication to be accurately matched to the application, reducing component wear while extending equipment service life.
The lubricator reservoir can be refilled while the system remains pressurised, minimising maintenance downtime.
Recommended lubricating oil: ISO VG32
Technical Performance
Function: Compressed air lubricator
Port size: 1/4" BSP
Optional threads: NPT or Rc
Working media: Compressed air
Operating pressure: 0 to 20 Bar
Maximum inlet pressure: 20 Bar
Proof pressure: 40 Bar
Maximum flow: 2500 L/min (ANR)
Ambient temperature: -10°C to +70°C
Lubricator bowl capacity: 125 cc
Weight: 1200 g
Construction
Body: 316 stainless steel
Bowl: 316 stainless steel
Seals: FKM (Viton)
Precision adjustable oil feed
Compact lightweight construction
Supplied Complete
Mounting bracket
Mounting screws
Ready for installation
Compliance & Options
ATEX certified
II 2G Ex h IIC T4 Gb
II 2D Ex h IIIC T135°C Db
Standards:
EN ISO 80079-36:2016
EN ISO 80079-37:2016
Options available:
NSF H1 food-grade lubricant compatibility
Oxygen cleaned for oxygen service
Applications
Ideal for:
Food and beverage production
Breweries
Pharmaceutical manufacturing
Chemical processing
Semiconductor manufacturing
Offshore and marine installations
Clean compressed air systems
Compact pneumatic machinery
Industrial automation
Corrosive industrial environments
Key Features
Full 316 stainless steel construction
Compact miniature design
Operating pressure up to 20 Bar
High flow capacity of 2500 L/min
Adjustable oil mist lubrication
125 cc oil reservoir
ATEX certified
Excellent corrosion and chemical resistance
Suitable for semiconductor applications
Compatible with stainless steel FRL assemblies
Designed for hygienic industrial environments
Stainless Steel Pneumatic Lubrication
Unlike conventional aluminium lubricators, the Shako SSL200 is engineered for corrosive, hygienic and high-pressure pneumatic systems where long-term reliability is essential.
The combination of full 316 stainless steel construction, FKM seals and precision oil mist lubrication provides continuous protection for pneumatic equipment while maintaining excellent corrosion resistance in demanding industrial environments.
