Introducing Advanced Pneumatic Push In airline fittings
When precision, reliability, and performance are essential in your pneumatic systems, the Advanced Rapid Push-to-Connect Fittings deliver advanced engineering in a compact, high-performance design.
Engineered to meet the evolving demands of industrial automation, packaging, automotive, and general pneumatic applications, the Advanced range ensures fast assembly, robust sealing, and long-lasting performance across a broad range of environments.
Airline Push Fittings Key Features & Benefits
Instant Air Tubing Connection
This Advanced Series features a true push to connect mechanism that allows for rapid installation without tools. Simply insert the tubing, and the secure locking system activates automatically, saving time and reducing labour costs.
360° Tubing Rotation Post Installation
Need to reorient your tubing layout? These advanced fittings allow for full directional adjustment even after installation, ideal for tight or complex routing scenarios.

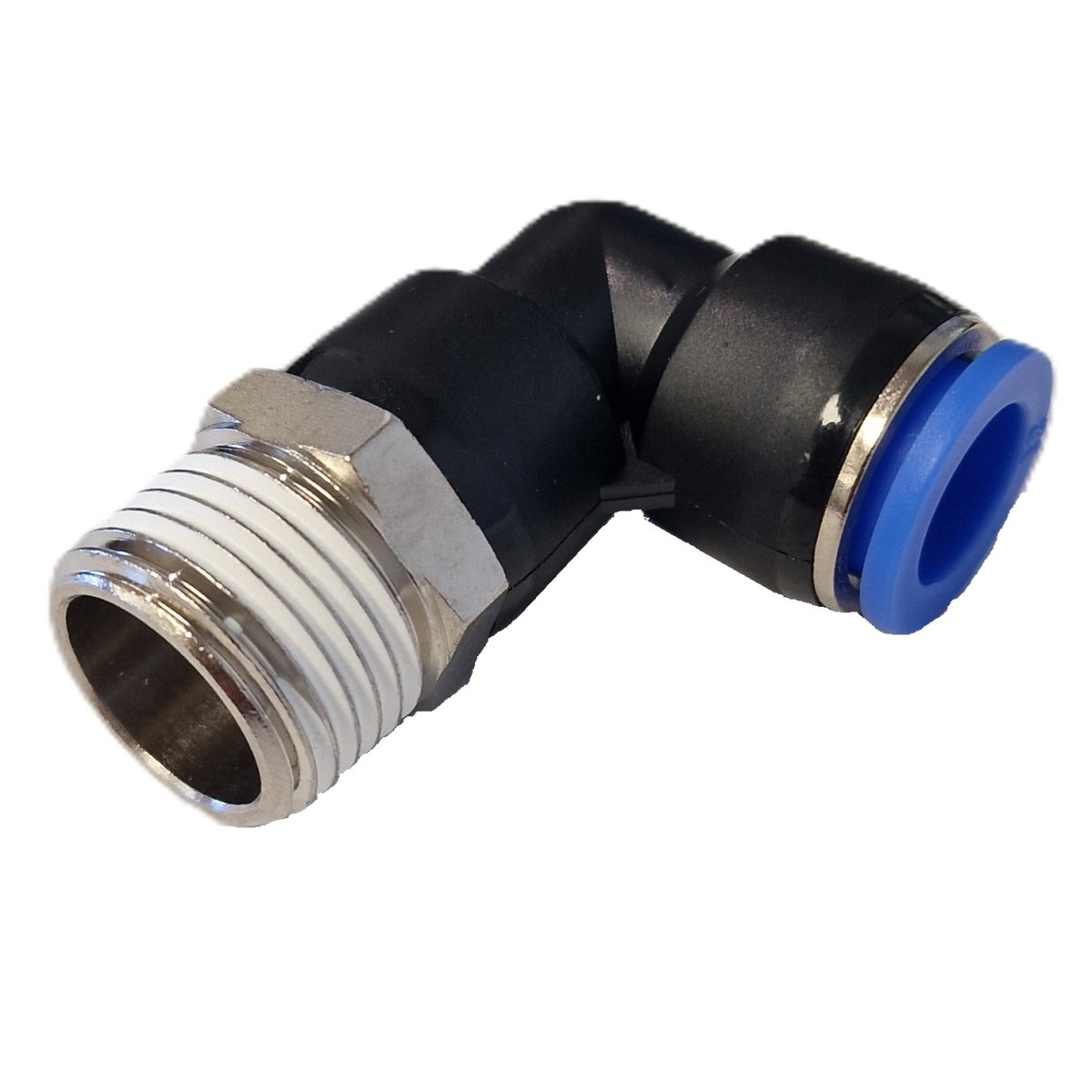

Corrosion Resistant Nickel Plated Brass Threads
Built for longevity, these advanced fittings incorporate a nickel-plated brass threads, Resin and POM body, resisting corrosion and contamination even in demanding environments, including damp or chemically aggressive environments.
Thread Ready with Integrated Seals
All taper threads are pre-coated with high-quality thread sealant for immediate installation. The BSPP (G) parallel threads include integrated NBR O-rings, ensuring a leak-proof seal from day one.
Wide Compatibility
Designed to accommodate both Nylon and Polyurethane tubing, with sizes ranging from 4mm to 16mm tubing and M5 up to ½" BSP threads, offering flexible options for a wide range of pneumatic circuits.
Parameter |
Specification |
Metric Tube Sizes |
4mm – 12mm (Optional 14-16mm) |
Thread Sizes |
M5 to ½ BSP |
Working Pressure |
0 – 1.0 MPa (0 – 150 PSI, 0 – 10 Bar) |
Maximum Pressure |
1.5 MPa (217 PSI, 15 Bar) |
Vacuum Capability |
-29.5 in Hg (-100 kPa, -1 Bar) |
Temperature Range |
-20°C to +70°C (-4°F to +150°F) |

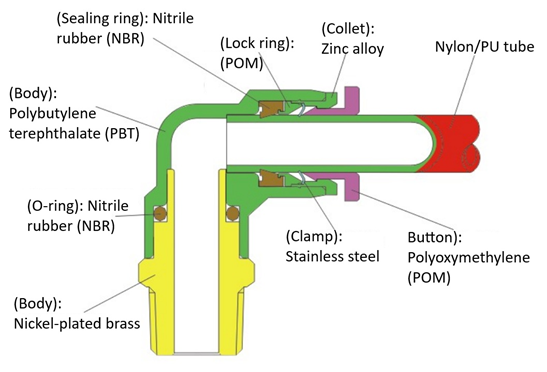

Rapid airline Fittings Material Structure
Sealing & O-Rings: NBR (Nitrile Butadiene Rubber)
Locking Ring & Release Button: POM
Collet: Zinc Alloy
Clamp: Stainless Steel
Body: Resin (PBT Polymer)
Whether you're upgrading an existing pneumatic system or building new machinery from the ground up, the Advanced Series offers un-compromised performance, ease of use, and long-term reliability. Make the switch today and experience the next generation of air line connectivity.
Need technical support or custom fittings? Contact our team for tailored solutions.
Read about Polyester and Polyether based Polyurethane.

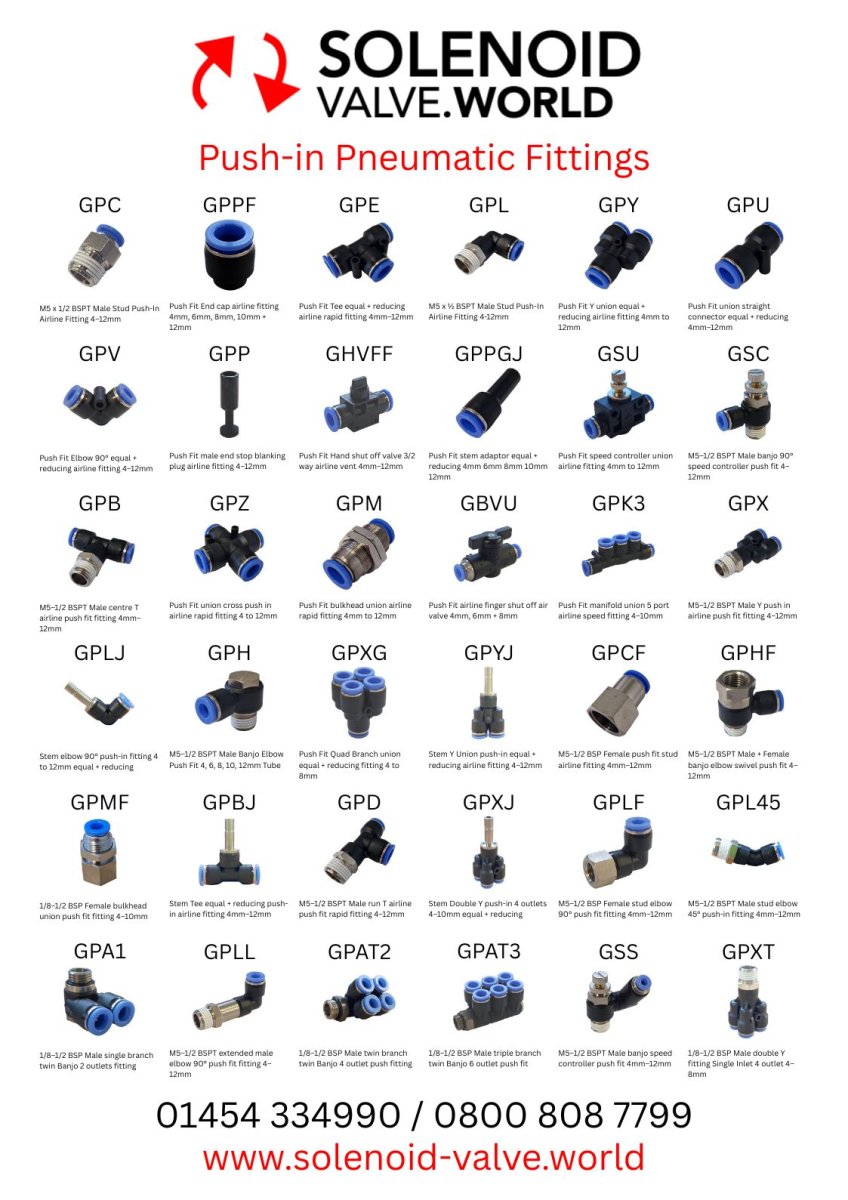

Download airline fittings brochure here.
