Description

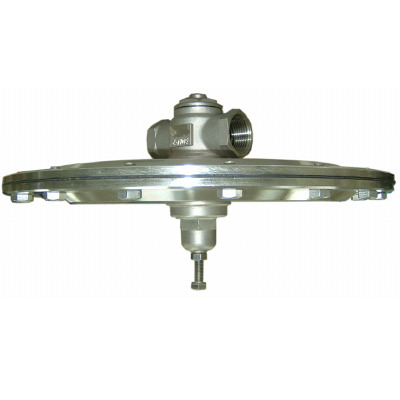

316 Stainless Steel Micro Pressure Reducing Valve – Z-Tide Industrial REMT Series
The Z-Tide Industrial REMT Series is a precision direct-acting micro pressure reducing valve designed for exceptionally accurate downstream pressure regulation in ultra-low pressure applications. Manufactured from 316 stainless steel with a balanced piston and extra-large diaphragm, the REMT Series provides highly sensitive pressure control from just 0.02 Bar while maintaining excellent stability despite normal inlet pressure fluctuations. Available with threaded BSPT connections from ½" to 2", and optional flanged versions, the REMT Series is ideally suited to reverse osmosis systems, laboratory installations, gas control, pharmaceutical processing and other applications requiring extremely precise low-pressure regulation.
Valve function & operation
Function:
Direct-acting micro pressure reducing valve
Ultra-low downstream pressure regulator
Operating principle: Balanced piston with extra-large diaphragm
Automatically maintains extremely stable low outlet pressure
Pressure gauge displays outlet pressure
Thread sizes: ½", ¾", 1", 1½" and 2" BSPT
Optional threads:
NPT
BSPP (G)
Optional flange sizes: DN15, DN20, DN25, DN40 and DN50
Standard flange: PN16
Optional flange standards:
ANSI 150 lb
JIS10K
Pressure ranges & regulation
Maximum inlet pressure: 5 Bar
Pressure tested: 12 Bar
Standard outlet pressure adjustment range: 0.02 to 0.2 Bar / (20 to 200 mbar)
Maximum media temperature:
+60°C with NBR seals
+80°C with FKM or EPDM seals
Minimum media temperature: -15°C
Maximum media viscosity: 50 cSt
Construction & materials
Body: 316 stainless steel
Upper cover: 316 stainless steel
Piston: 316 stainless steel
Shaft: 316 stainless steel
Large diaphragm: Nylon reinforced EPDM
UH-ring: NBR
Spring cover: 316 stainless steel
Spring: Spring steel
Pressure gauge: Stainless steel gauge included
Standard seals: NBR
Optional seals:
FKM (Viton)
EPDM
Media compatibility
✓ Pure water
✓ Reverse osmosis (RO) water
✓ Demineralised water
✓ Compressed air
✓ Industrial gases
✓ Light oils
✓ Fluids compatible with the valve materials
Performance & design
✓ Ultra-low pressure regulation from 0.02 Bar
✓ Extra-large diaphragm provides exceptional sensitivity and rapid response
✓ Balanced pressure system maintains stable outlet pressure despite inlet pressure fluctuations
✓ UH-ring sealing system delivers excellent sealing accuracy and long service life
✓ Stainless steel pressure gauge supplied for continuous outlet pressure monitoring
✓ Heavy-duty 316 stainless steel construction for corrosive industrial environments
✓ Direct-acting design requires no external pilot control
Applications
Reverse osmosis (RO) systems
Water treatment plants
Laboratory installations
Chemical processing
Pharmaceutical manufacturing
Gas pressure regulation
Analytical equipment
Precision process control
OEM machinery
General industrial micro-pressure regulation
Manufacturing quality
Manufactured using heavy-duty 316 stainless steel with precision-machined internal components, the Z-Tide Industrial REMT Series has been engineered for industrial applications requiring exceptionally accurate micro-pressure regulation. The balanced piston design, combined with an extra-large diaphragm, provides outstanding sensitivity while maintaining a stable downstream pressure even when inlet pressure fluctuates. The precision UH-ring sealing system minimises leakage and enhances long-term regulation accuracy, while the supplied stainless steel pressure gauge allows continuous monitoring of outlet pressure. Designed specifically for ultra-low pressure applications from 0.02 to 0.2 Bar, the REMT Series offers one of the highest levels of pressure control available in a compact direct-acting regulator.
Ordering information
Simply select the required connection type, port size and seal material before adding the valve to your basket. Optional NPT or BSPP (G) threads, PN16, ANSI 150 lb or JIS10K flanges together with FKM or EPDM seals are available to suit your application.
