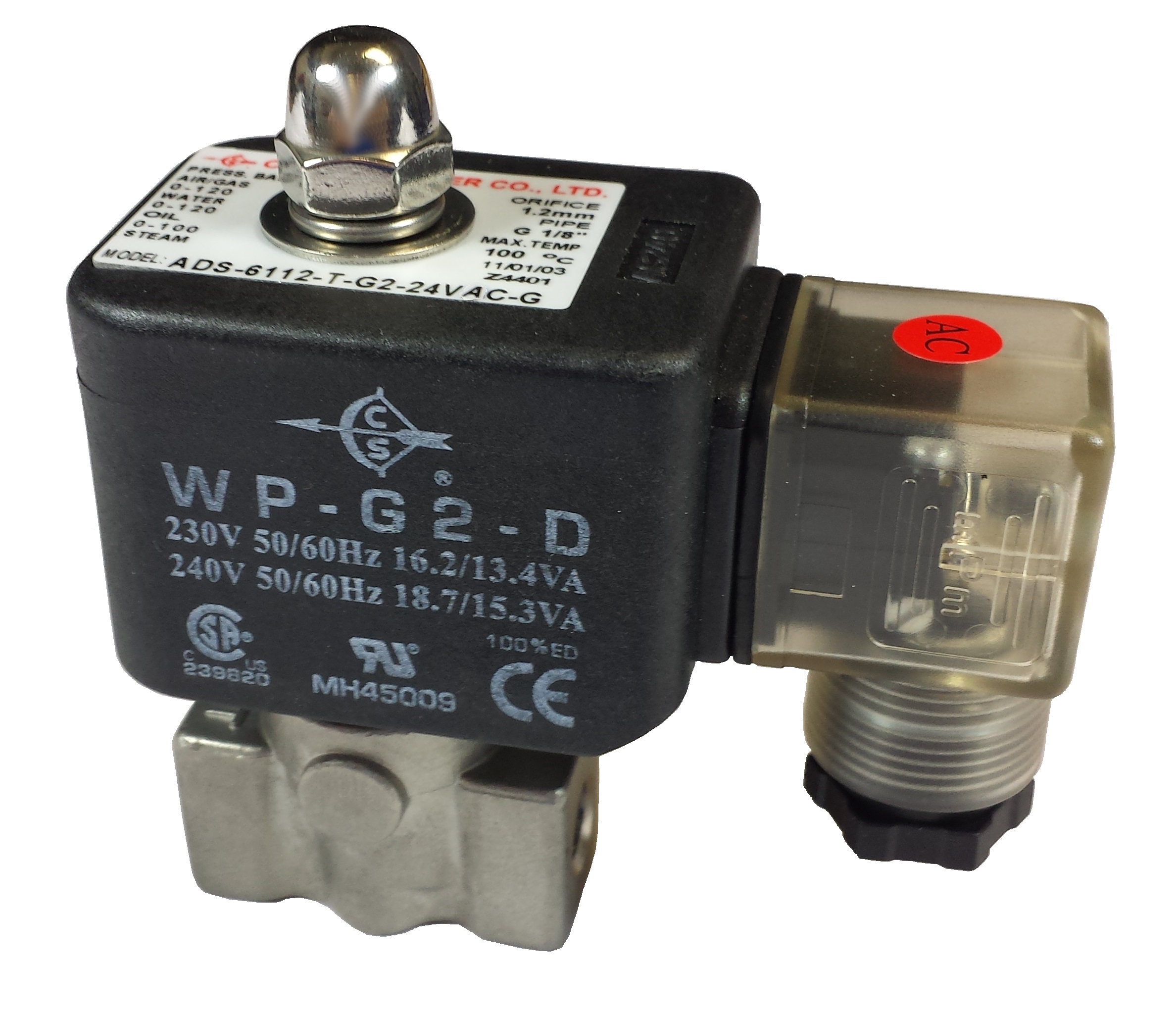

1/8 Stainless steel solenoid valve 0-150 Bar 2/2 N/Closed
£98.95
£134.93 incl. VATDescription
1/8 Stainless solenoid valve 2/2 normally closed 150 Bar (2250 psi) CS Fluid Power ADS6000.
Function: 2/2 way normally closed
Operation: direct acting
Port: 1/8 BSP standard, option NPT or Rc thread.
Body: 316 stainless steel
Internals: stainless steel
Shading ring: copper, option silver
Pressure: 0 to 150 Bar AC voltage, 0 to 105 Bar DC voltage (PTFE seals required for pressure above 30 Bar)
Temperature: -10 to +180°C Max
Vacuum: Torr 10-6 Max
Orifice: 1.2mm, 1.6mm, 2.0mm, 3.0mm, 4.0mm or 5.0mm
Kv flow factor: 1 to 9.15 according to orifice, based on water with 1 Bar pressure drop.
Seals: FKM, Option EPDM, NBR, Silicone, PTFE, VST, Neoprene, ECO, HNBR, Hypalon, Butyl IIR. PTFE must be used for pressure over 30 Bar.
Media: air, water, light oils, vacuum, and most other non-corrosive fluids under 50CST and gases that are compatible with materials of construction.
Coil: WPG1 12 watt UL, CSA, CE, IP68 Class H 100% duty rated DIN43650A, fitted with IP67 LED connector, so overall protection is IP67.
Coil: WPG2 18 Watt UL, CSA, CE and IP67 Class H 100% duty rated DIN43650A, fitted with IP67 LED connector, so overall protection is IP67.
Coil option: WPA3C 14.3 to 27.5 Watt (according to voltage) IP54 Class H with 30cm flying lead wires 100% duty rated.
Coil option ADS60**: ATEX EExmIIT4 Temperature Class T4 T130°C Ex mb IIC T4 and Gb Ex mb tb IIIC T130°C Db for hazardous area 21 and 22 Pressure same as 12 Watt WPG1 coil
Voltages: 12vDC, 24vDC, 48vDC or 24vAC, 48vAC, 110vAC or 230vAC.
Other options: Manual Override, Silver shading ring, degreased and other custom-made options.
Technical Specification
Brand: CS Fluid Power Co Ltd
Model: ADS6000
Width: 19.00 mm
Height: 85.00 mm
Depth: 41.00 mm
Weight: 1.00 kg
Valve / Product Type: Solenoid Valve
Body Material: Stainless Steel
Voltage: 110vAC, 12vDC, 230VAC, 24vAC, 24vDC, 48vAC, 48vDC
Port Size: 1/8 thread
Function: 2/2 Normally Closed
Operation: Direct Acting
Seals: ECO, EPDM, FKM (Viton), HNBR, Hypalon, NBR, Neoprene, PTFE (Teflon), Silicone, VST
Media: Air, Fluid (Non Aggressive), Fluid (Slight Acid/Alkali), Gases (Non Aggressive), Gases (Slight Acid/Alakli), Oils + Fuels 50cSt Max, Steam, Vacuum (Low), Vacuum (Medium), Water, Water (RO/Pure/Demin)
Orifice: 1.2mm, 1.6mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm
Pressure Maximum: 0.02 Bar (20 mBar), 0.1 Bar (100 mBar), 0.2 Bar (200 mBar), 0.3 Bar (300 mBar), 0.4 Bar (400 mBar), 0.5 Bar (500 mBar), 0.6 Bar (600 mbar), 0.7 Bar (700 mBar), 0.8 Bar (800 mBar), 1 Bar, 1.2 Bar, 1.3 Bar, 1.4 Bar, 1.5 Bar, 1.6 Bar, 2 Bar, 2.5 Bar, 3 Bar, 3.5 Bar, 4 Bar, 4.5 Bar, 5 Bar, 5.5 Bar, 6 Bar, 6.5 Bar, 7 Bar, 7.5 Bar, 8 Bar, 8.5 Bar, 9 Bar, 10 Bar, 12 Bar, 13 Bar, 14 Bar, 15 Bar, 16 Bar, 17 Bar, 18 Bar, 20 Bar, 25 Bar, 30 Bar, 35 Bar, 40 Bar, 50 Bar, 60 Bar, 64 Bar, 70 Bar, 80 Bar, 90 Bar, 100 Bar, 120 Bar, 130 Bar, 135 Bar, 140 Bar, 150 Bar
Options required: Degreased, Manual Override, Mounting Holes, Shading Ring - Silver
Approvals: ATEX Zone II GD, ATEX Exm, IP54, IP65, IP66, IP67, CSA, UL
