Special Offer>> 3/4BSP WRAS stainless 10 Bar ball valve 110-240vAC Failsafe Open or Closed with E2 position feed back

£60.00

£133.75 incl. VAT
£50.00 ex. VAT

Model: ABVM06S/2AR-E2

Stock: 634 in stock

Read Full Description

Description

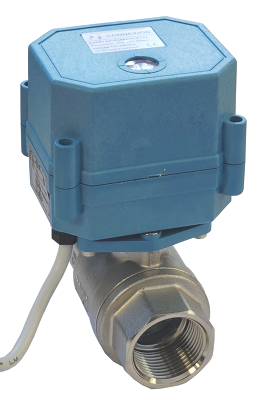

3/4 inch Motor Actuated WRAS Ball Valve Mini series ABVM06S/2AR-E2 and ABVM06S/2AR-NO-E2.

Limited time special offer whilst stocks last, when they are gone they are gone.

Motor Actuator:
Cable length: 0.5 meters
Includes: visual position indication.
Speed: Open 4 secs / Close 6 secs.
Temperature (ambient): -15°C to +50°C.
Cycle life: 100,000+ open/close, 100% rated.
Power Consumption: 2 to 5 Watts, 50 to 100mA.
Control options: Failsafe Open or Failsafe Closed.
Voltage: 110vAC to 240vAC with multi voltage technology.
Power supply: minimum 500mA (0.5 Amperes) recommended.
E2 Position Switches = Position OPEN and CLOSED end of travel confirmation switches.
Volt free feed back (no voltage supplied by the actuator).
Switch rating 0 to 36vDC 0.4 Amp Max.
The Green/Yellow/White feed back wires can be ignored if not required.

Ball Valve:
Bore: 20.0mm
Pressure: 0 to 10 Bar
Body: 304 stainless steel
WRAS Certificate 2012107
Port: 3/4 BSP female thread
Seals: PTFE + EPDM (WRAS Approved).
Temperature (media): -15°C to +100°C.
Media: air or water suitable with 304 stainless steel, EPDM + PTFE.

Options to choose.
1. Failsafe Closed = Power ON will OPEN - Power OFF will automatically CLOSE with reserve power. (ABVM06S/2AR-E2)

2. Failsafe Open = Power ON will CLOSE - Power OFF will automatically OPEN with reserve power. (ABVM06S/2AR-NO-E2)

Failsafe actuators require minimum 30 second power ON for recharging.

If you need 9-24vAC/DC, or Power/Open close or manual override, please see related items below.

Technical Specification

Model: ABVM06S/2AR-E2

Width: 68.00 mm

Height: 83.00 mm

Depth: 72.00 mm

Weight: 0.61 kg

Valve / Product Type: Ball, Motor Actuated

Body Material: Stainless Steel

Voltage: 110vAC, 230VAC

Port Size: 3/4 Inch

Function: 2/2 Normally Closed, 2/2 Normally Open

Operation: Direct Acting

Pressure Maximum: 0.02 Bar (20 mBar), 0.1 Bar (100 mBar), 0.2 Bar (200 mBar), 0.3 Bar (300 mBar), 0.4 Bar (400 mBar), 0.5 Bar (500 mBar), 0.6 Bar (600 mbar), 0.7 Bar (700 mBar), 0.8 Bar (800 mBar), 1 Bar, 1.2 Bar, 1.3 Bar, 1.4 Bar, 1.5 Bar, 1.6 Bar, 2 Bar, 2.5 Bar, 3 Bar, 3.5 Bar, 4 Bar, 4.5 Bar, 5 Bar, 5.5 Bar, 6 Bar, 6.5 Bar, 7 Bar, 7.5 Bar, 8 Bar, 8.5 Bar, 9 Bar, 10 Bar

Seals: EPDM

Approvals: IP67, WRAS

Media: Air, Water

Options required: Anti Water Hammer, Bi-Directional Flow, Position Feedback - Closed, Position Feedback - Open + Closed, Position indication - Visual

Orifice: 20mm
