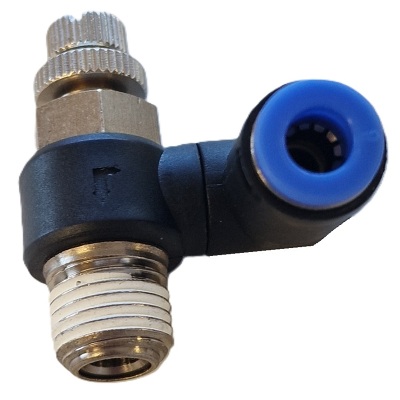

M5-1/2 BSP Male Banjo Speed controller push fitting 4mm-12mm
£2.78
£5.57 incl. VATDescription
ECO-Line Male banjo swivel with speed / flow controller Advanced Pneumatic Push-to-Connect Fittings GSS
Metric Tube Sizes 4mm to 12mm, thread M5 to 1/2 BSP
One Touch push to connect configuration allow an instant tubing connection
BSPT fittings are equipped Teflon treated threads ready for use.
Construction: Metallic body nickel plated brass and Polybutylene terephthalate (PBT), Sealing Ring & O Ring NBR, Collet (Zinc alloy), Sleeve + Lock Ring (POM), Lock claws (Stainless)
For use in pneumatic & vacuum systems
Working Pressure: 0-1MPa, 0-150 PSI, 0-10 Bar
Maximum Pressure: 1.5 MPa, 217 psi, 15 Bar
Vacuum Systems: -29.5 in Hg, -100kPa, -1 Bar
Temperature Range: -20 to +70C (-4F to +150F)
Tube: Polyurethane and Nylon
Technical Specification
Brand: Connexion
Model: GSS
Width: 45.00 mm
Height: 55.00 mm
Depth: 21.00 mm
Weight: 0.10 kg
Valve / Product Type: AirLine Fittings + Tube, Flow rate control, Manual Control, Manual Twist
Body Material: Delrin (POM)
Port Size: 4mm, M5, 1/8 thread, 1/4 thread, 6mm, 8mm, 3/8 thread, 10mm, 12mm, 1/2 thread
Seals: NBR
Media: Air, Vacuum (Low), Vacuum (Medium)
Options required: Banjo, Flow Control, Manual Control, Outlet - right angle, Speed controller
Pressure: Vacuum, 0.02 Bar (20 mBar), 0.1 Bar (100 mBar), 0.2 Bar (200 mBar), 0.3 Bar (300 mBar), 0.4 Bar (400 mBar), 0.5 Bar (500 mBar), 0.6 Bar (600 mbar), 0.7 Bar (700 mBar), 0.8 Bar (800 mBar), 1 Bar, 1.2 Bar, 1.3 Bar, 1.4 Bar, 1.5 Bar, 1.6 Bar, 2 Bar, 2.5 Bar, 3 Bar, 3.5 Bar, 4 Bar, 4.5 Bar, 5 Bar, 5.5 Bar, 6 Bar, 6.5 Bar, 7 Bar, 7.5 Bar, 8 Bar, 8.5 Bar, 9 Bar, 10 Bar
