Solenoid valve world - Coaxial Valves

Valve / Product Type

Air Actuated

air actuated valves that utilise a compressed air supply to operate.

Coaxial

Solenoid

Valves controlled by electrical signal via a solenoid or electro magnet.

Port Size

Media

Body Material

Aluminium

Brass

Steel

Stainless Steel

Function

2/2 Normally Closed

2 ports (inlet/outlet) with 2 positions (Open/Closed) - valve stays closed (Failsafe) requires power to open

2/2 Normally Open

2 ports (inlet/outlet) with 2 positions (Open/Closed) - valve stays open (Failsafe) requires power to close

2/2 Double Acting

2 ports (inlet/outlet) with 2 positions (Open/Closed) - power or air one side to move - power or air opposite side to return.

3/2 Normally Closed

3 ports with 2 positions. Power off inlet closed, outlet open to exhaust - power on inlet open to outlet with exhaust closed.

3/2 Normally Open

3 ports 2 positions. Inlet open to outlet with exhaust closed - power on inlet closed with outlet open to exhaust.

3/2 Universal

3 ports, 2 positions flow can be in any direction. Can be piped as 3/2 normally closed flow into inlet, 3/2 normally open flow into exhaust, 3/2 diverting flow into outlet.

Pressure Maximum

Seals

EPDM

EPDM (Ethylene Propylene Diene Monomer) - known as Ethylene Propylene terpolymer, Buna-AP, Dutral, Polysar-EDM, Royalene, Vistalon, Keltan, Epcar, Nordel or Epsyn). Good for hot and drinking water, Steam, Freon refrigerant gas and Air -40°C to +120°C (+150°C steam) Poor resistance to oils + fuels

FKM (Viton)

FKM Fluoro elastomer (Fluorocarbon) Viton® Dupont registered, known as Tecnoflon, Fluorel, Dai-El. Good for hot water, acid, alkali, oils, hydrocarbons and salt solutions, many aggressive chemicals, diluted acids, weak alkali's, mineral oils, aliphatic and aromatic hydrocarbons, chlorinated hydrocarbons, sunlight and ozone. -26°C to +205°C. Poor resistance to Ketone's and Acetone.

NBR

NBR (Nitrile Buna Rubber) known as Nitrile Butadine, Buna-N, Hycar, Chemigum, Butakon, Breaon, Butacril, Paracil, Nipol, Perbunan, Krynac or Europrene-N. Good for Aliphatic Hydrocarbons, Petroleum, Fuels, Mineral Oil, Vegetable and Hydraulic Oil, Alcohol and many Acids. -35°C to +100°C. Poor for Ozone, Acetone, Methyl ethyl Ketone, Chlorinated Hydrocarbons, Ethers and Esters.

PTFE (Teflon)

PTFE (Polytetrafluoroethylene) also known as Teflon® Dupont registered. Excellent resistance to almost every fluid or gas. -200°C to +230°C

Approvals

ATEX Zone II GD

hazardous area classification indicating a potentially explosive atmosphere with gases and dust present, requiring specific equipment for safe operation.

IP65

Dust tight and protected against water jets

Orifice

Voltage

Options required

Bi-Directional Flow

Can control flow in both directions

Degreased

Oil and grease removed typically for oxygen or paint spray use.

Manifold

A group of multiple valves together on one manifold, simple layout streamline control and space saving.

Manual Override

A facility to manually move the valve into the fully actuated position via a button, lever or key.

Mounting Bracket

Valve has the facility to be supplied with a bracket for mounting and securing.

Mounting Holes

Supplied with additional threaded holes typically in the base, typically for securing to a baseplate.

Position Feedback - Closed

The valve is equipped with an additional volt free electrical switch that is triggered when the valve is mechanically closed.

Position Feedback - Open + Closed

The valve is equipped with two additional volt free electrical switches that are triggered when the valve is mechanically closed or open position.

Shading Ring - Silver

The copper shading ring in the solenoid tube has been replaced with silver. Typically used for RO water and aggressive media applications.

Only Show Items In Stock

Hide spare parts

Coaxial Valves

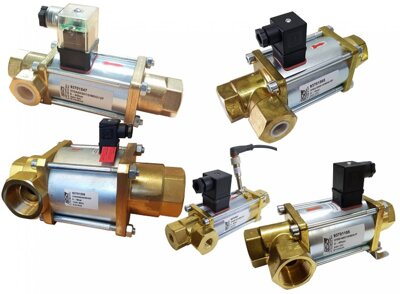

More Coaxial Solenoid Valves 3/2 Way

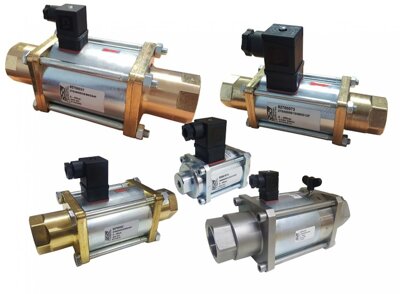

More Coaxial Solenoid Valves 2/2 Way

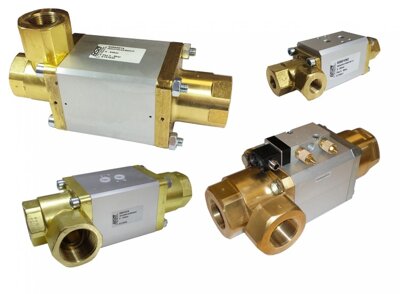

More Coaxial Air Pilot Valves 3/2 Way

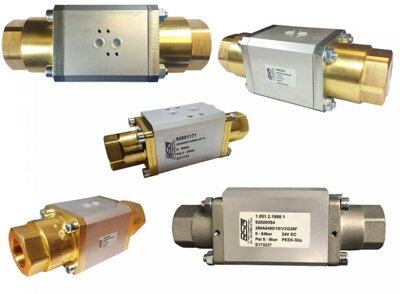

More Coaxial Air Pilot Valves 2/2 Way

Filters

3 IN STOCK

3 IN STOCK

3 IN STOCK

2 IN STOCK

2 IN STOCK

2 IN STOCK

1 IN STOCK
