Nass Magnet Solenoid Coils & Connectors — European Quality, Precision & Reliability

Genuine Nass Magnet Coils and DIN Connectors from an Authorised UK Supplier

Nass Magnet coils and connectors are trusted by valve manufacturers and OEMs worldwide for their precision, durability, and long service life. Manufactured in Germany and Hungary under strict ISO 9001 and IATF 16949 quality systems, these components offer exceptional electromagnetic performance for demanding industrial environments.

As one of the UK’s leading stockists of solenoid valve components, Connexion Developments Ltd supplies the full range of Nass Magnet solenoid coils, armatures and DIN electrical connectors, available for next-day UK delivery and fast shipping across the EU.

Full Range of Nass Magnet Solenoid Coils

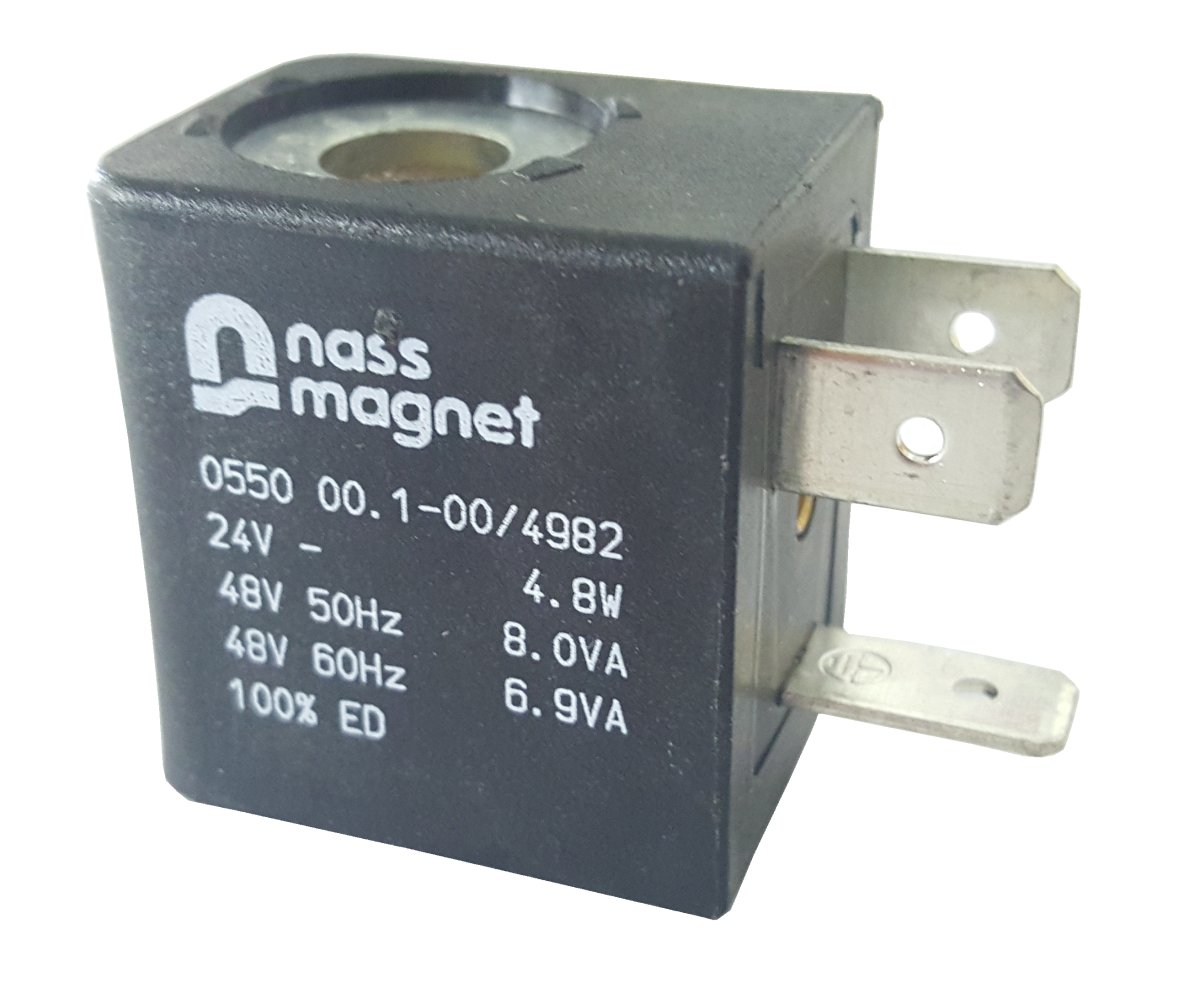

Nass Magnet System 8 Coil
Nass Magnet System 8 Coil

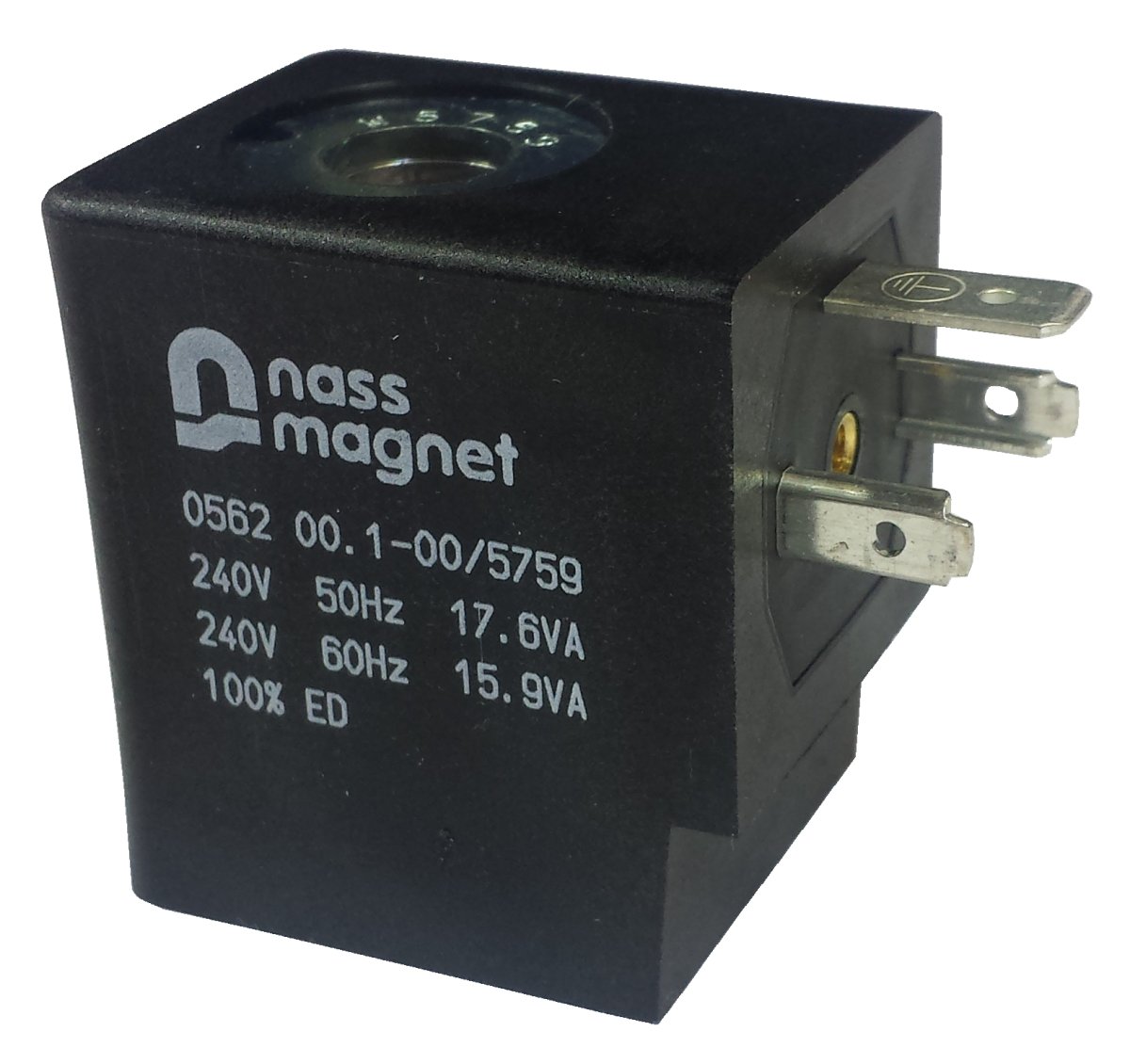

Nass Magnet System 13/30 Coil
Nass Magnet System 13/30 Coil

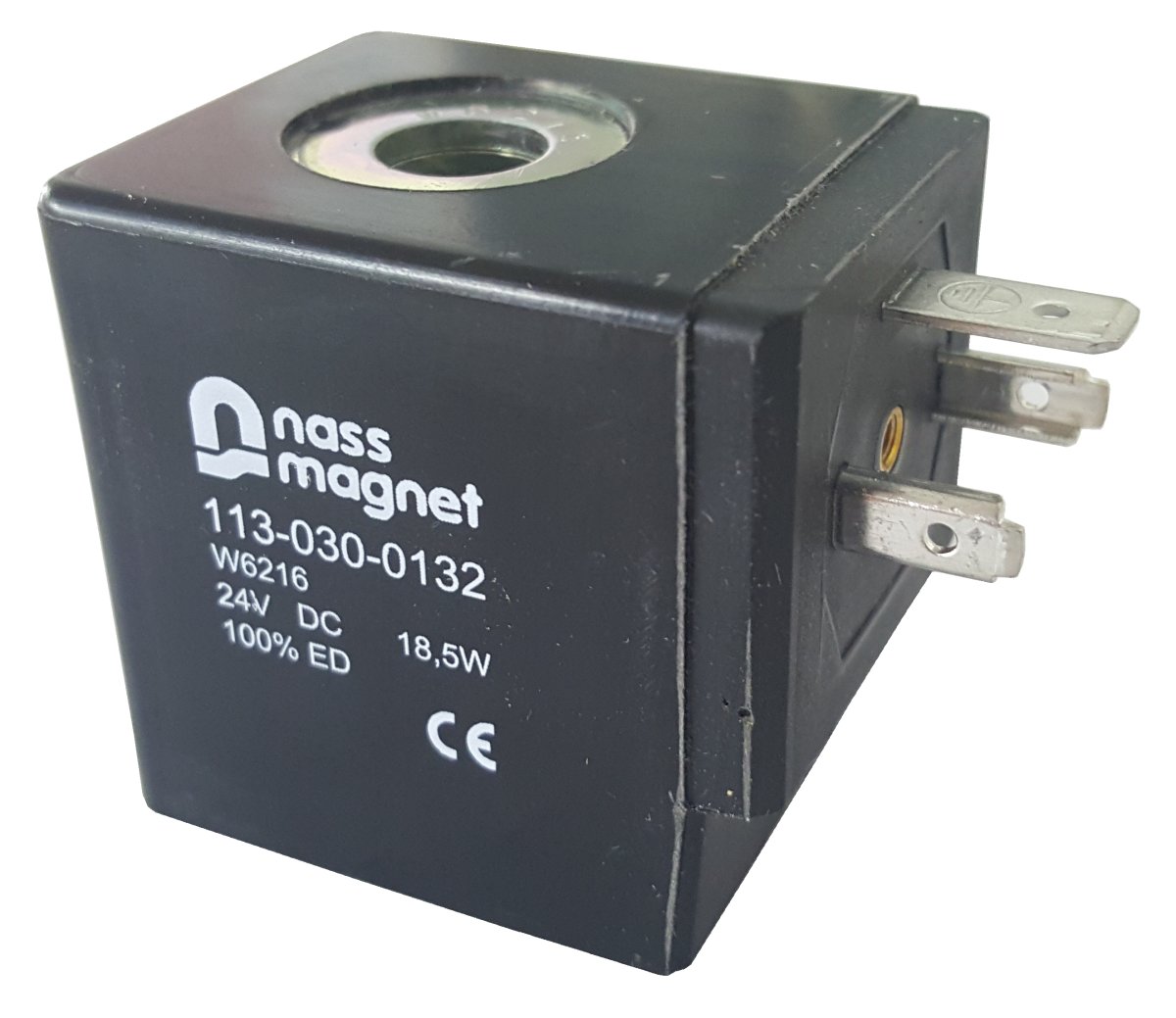

Nass Magnet System 13/36 Coil
Nass Magnet System 13/36 Coil

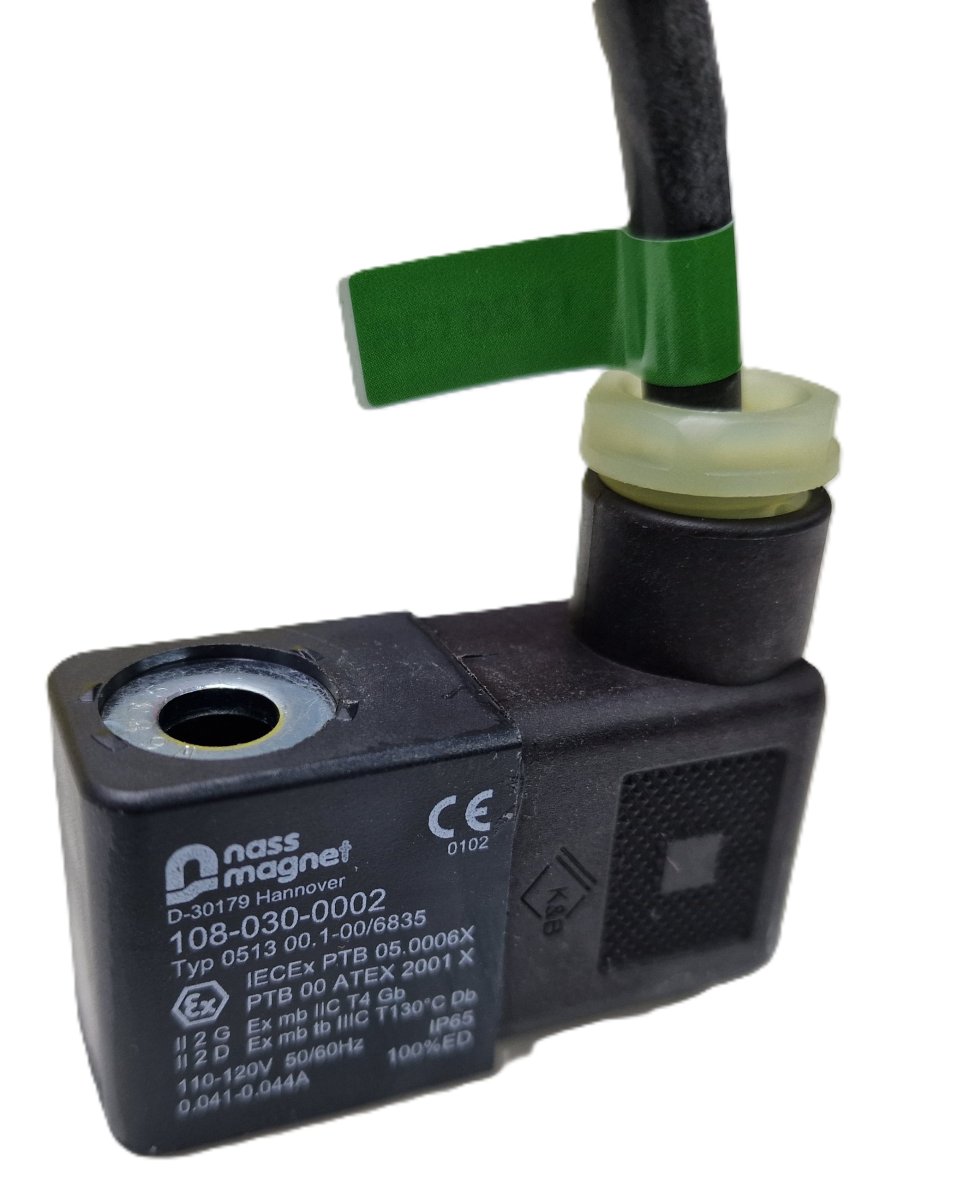

Nass Magnet System 8/22 ATEX Exm Coil
Nass Magnet System 8/22 ATEX Exm Coil

Compact & High-Power Coils for Industrial Applications

Standard AC and DC voltage coils (12 V, 24 V, 110 V, 230 V)

Power ratings from 4 W to 18.5 W

Coil bores 9 mm, 10 mm, 14 mm and larger options

Insulation classes F and H for high-temperature use

Continuous (100%) duty cycle operation

IP-Rated & ATEX Certified Versions

IP65 / IP67 waterproof and dust proof coils

ATEX Ex m and Ex ia versions for hazardous zones 1 and 2

Designed for use in oil, gas, chemical and marine applications

High resistance to vibration, moisture and temperature fluctuations

Replacement & Retrofit Coils

Direct replacements for OEM valves using Nass Magnet technology

Compatible with brands (verify dimensions)

Available with or without connector plug

Nass Magnet DIN Connectors — Form A, B, C and Micro Types

Standard Connectors

Form A, B and C DIN connectors for solenoid coils

2 + Earth (2P+E) and 3 pin types

Screw terminal or solder versions

Enhanced Protection Versions

LED indicator light for visual status indication

VDR (surge suppressor) for coil protection

PG9 / M16 cable entry options

IP65 / IP67 sealed for industrial environments

Pre-Wired & Moulded Connectors

Ready-to-fit connectors with integral cables

Custom lengths and moulded designs for OEM production

Key Features & Technical Benefits

Robust Construction for Industrial Reliability

Copper windings and glass-filled nylon housing

High mechanical strength and thermal stability

Resistant to chemicals, oils and UV exposure

Certified to International Standards

DIN EN 175301-803 Form A / B / C compliant

CE / UKCA marked

ATEX and IECEx approved models available

Temperature & Performance Range

Operating temperature −40 °C to +180 °C (depending on type)

Continuous duty operation without loss of magnetic strength

Typical Applications

Industrial solenoid valves and pilot valves

Pneumatic and hydraulic manifolds

Process control systems for water, air, oil and gas

Chemical processing, marine, HVAC and energy sectors

OEM and automation equipment manufacturers

How to Select the Correct Nass Magnet Coil or Connector

Step 1 — Identify Coil Bore & Height

Match the coil bore (e.g. 14 mm) and height to your valve armature.

Step 2 — Confirm Voltage & Power

Check whether the system operates on AC or DC and note the required wattage.

Step 3 — Choose Ingress Protection

Select IP65 or IP67 for outdoor / humid environments.

Step 4 — Select Connector Type

Choose the DIN form (A/B/C), with optional LED or VDR protection.

Why Order from Connexion Developments Ltd ( Solenoid-Valve.World )

Large UK stock of Nass Magnet coils & connectors

Fast next-day delivery throughout the UK and Europe

ISO 9001 and ISO 14001 UKAS certified supplier

Technical support and compatibility assistance

Trade accounts with credit terms available

Frequently Asked Questions

Q: Are Nass Magnet coils interchangeable with other brands?
A: Yes — provided the bore, voltage and mounting dimensions match. Always verify fit before use.

Q: Do you supply ATEX certified Nass Magnet coils to the EU?
A: Yes. We ship ATEX and Ex approved models across the EU with full documentation.

Q: Can you recommend a connector for my existing coil?
A: Provide your coil photo or part number and we’ll match a suitable DIN plug.

Order Online or Request Technical Support

Visit www.solenoid-valve.world, to browse Nass Magnet coils and connectors, or contact our sales team for bulk pricing and technical advice.

We ship daily across the UK and Europe with full VAT-compliant invoices and CE / UKCA documentation.
