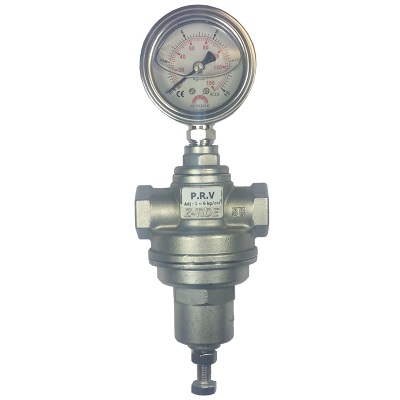

316 Stainless Steel Direct-Acting Pressure Reducing Valve – Z-Tide Industrial RET Series
The Z-Tide Industrial RET Series is a precision direct-acting pressure reducing valve designed to provide stable downstream pressure control for water, air, gases and compatible industrial fluids. Manufactured from 316 stainless steel with a balanced piston and diaphragm design, the RET Series maintains accurate outlet pressure despite normal inlet pressure fluctuations. Available in threaded BSP sizes from ½" to 2", with optional NPT or BSPP (G) threads, these valves are ideally suited to industrial water systems, reverse osmosis (RO) plants, compressed air installations and demanding process applications.
Valve function & operation
Function:
Direct-acting pressure reducing valve
Automatic downstream pressure control
Operating principle: Balanced piston and diaphragm
Automatically maintains a constant outlet pressure
Pressure gauge displays outlet pressure
Port sizes: ½", ¾", 1", 1½" or 2" BSP
Optional threads:
NPT
BSPP (G)
Mounting position: Any position
Pressure ranges & regulation
Maximum inlet pressure: 25 Bar
Optional high-pressure version: Up to 40 Bar
Pressure tested: 35 Bar
Outlet pressure adjustment ranges:
1.5 to 6 Bar
4 to 10 Bar
8 to 13 Bar
Alternative pressure ranges available on request
Maximum media temperature:
+60°C with NBR seals
+100°C with FKM seals
+130°C with PTFE and FKM U-ring & O-ring seals
Minimum media temperature: -15°C
Maximum media viscosity: 50 cSt
Flow capacity (Cv): 2.5 to 17
(According to valve size)
Construction & materials
Body: 316 stainless steel
Optional body: Duplex stainless steel
Upper cover: 316 stainless steel
Piston: 316 stainless steel
Shaft: 316 stainless steel
Diaphragm: NBR or FKM
UH-ring: NBR or FKM
Spring: Spring steel
Lower cover: 316 stainless steel
Adjusting stem: 304 stainless steel
Pressure gauge: Stainless steel gauge included
Standard seals: NBR
Optional seals:
FKM (Viton)
EPDM
Media compatibility
✓ Water
✓ Pure water
✓ RO water
✓ Demineralised water
✓ Compressed air
✓ Industrial gases
✓ Light oils
✓ Fluids under 50 cSt compatible with the valve materials
✓ Concealed adjustment mechanism on 1½" and larger models protects against accidental adjustment
✓ Heavy-duty 316 stainless steel construction for demanding industrial environments
Applications
Industrial water distribution
Reverse osmosis (RO) systems
Water treatment plants
Compressed air systems
Chemical processing
Process engineering
OEM equipment
General industrial pressure regulation
Food and beverage processing
General fluid control systems
Manufacturing quality
Manufactured using heavy-duty 316 stainless steel with precision-machined internal components, the Z-Tide Industrial RET Series has been engineered for reliable long-term pressure regulation in demanding industrial environments. The balanced piston and diaphragm design automatically maintain a stable downstream pressure despite normal inlet pressure fluctuations, while the UH-ring sealing system provides excellent sealing performance, rapid response and long service life. The supplied stainless steel pressure gauge allows continuous monitoring of outlet pressure, and the protected adjustment mechanism on larger valve sizes provides secure pressure setting for industrial installations. Optional Duplex stainless steel construction, higher pressure adjustment ranges and working pressures up to 40 Bar are available for specialist applications.
Ordering information
Simply select the required port size, outlet pressure range and seal material before adding the valve to your basket. Optional NPT or BSPP (G) threads, Duplex stainless steel construction, FKM or EPDM seals, higher pressure adjustment ranges and high-pressure versions up to 40 Bar are available on request.
Pressure:
1.5 Bar, 1.6 Bar, 2 Bar, 2.5 Bar, 3 Bar, 3.5 Bar, 4 Bar, 4.5 Bar, 5 Bar, 5.5 Bar, 6 Bar, 6.5 Bar, 7 Bar, 7.5 Bar, 8 Bar, 8.5 Bar, 9 Bar, 10 Bar, 12 Bar, 13 Bar
