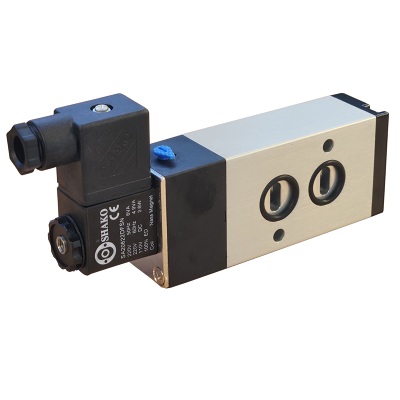

1/4" NAMUR Pneumatic Solenoid Valve – CY520-02D 5/2 Way High Flow Double Acting
The CY520-02D is a premium 1/4" NAMUR mounted pneumatic solenoid valve designed for direct installation onto quarter-turn pneumatic actuators used on ball valves and butterfly valves. Featuring double-solenoid operation with a high-flow internal pilot design, the valve provides rapid, reliable switching for compressed air and inert gas systems.
Designed to the NAMUR VDI/VDE 3845 mounting standard, the CY520-02D is ideal for process automation, water treatment, chemical processing and OEM valve packages. Optional ATEX and Intrinsically Safe coils are available for hazardous area installations.
Why Choose the CY520 Series?
✓ High-flow 5/2 way NAMUR valve
✓ Double-solenoid operation
✓ Direct NAMUR actuator mounting (VDI/VDE 3845)
✓ High-flow internal pilot design
✓ Lockable manual override included
✓ Robust anodised aluminium body
✓ IP65 coil protection
✓ Optional ATEX and Intrinsically Safe coils
✓ ISO standard mounting pattern
✓ Proven industrial reliability
Valve Function & Operation
Function: 5/2 way double acting
Operation: Internal pilot
Manual override: Lockable manual override included
Port connection: NAMUR interface & 1/4" BSP
Optional threads: NPT or Rc
Exhaust ports: 1/4" BSP
Operating pressure: 1.5 to 8 Bar
Maximum working pressure: 10 Bar
Proof pressure: 9.99 Bar
Effective flow area: 35mm²
Ambient temperature: -10°C to +50°C
Construction
Body: Anodised aluminium alloy
Seals: NBR
Media: Compressed air and Inert gases
Mounting: Direct NAMUR mounting to VDI/VDE 3845 pneumatic actuators
Coil & Electrical Specification
Coil power: 4.5 Watts
Protection rating: IP65
Insulation class: Class F
Duty cycle: 100% continuous duty
Connector: DIN43650B
Optional connection: 300mm flying lead wire
Voltage Options
12V DC
24V DC
48V DC
110V DC
220V DC
12V AC
24V AC
48V AC
110V AC
220V AC
230V AC 50/60Hz
Hazardous Area Options
ATEX Explosion Proof Coil
Ex mb IIC T4 Gb
Ex mb tb IIIC T130°C Db
Temperature class:
T4 (T130°C)
Suitable for Zone 21 and Zone 22 hazardous areas.
Intrinsically Safe Coil
24V DC
II 2 G Ex ia IIB/IIC T6 Ga
or
II 2 G Ex ia IIB/IIC T4 Ga
Ambient temperature:
-40°C to +50°C (T6)
-40°C to +85°C (T4)
Media temperature: Up to +80°C (T6)
Protection: IP65
Certification:
PTB 02 ATEX 2154
IECEx PTB08.0023
Ideal for hazardous process plants requiring intrinsically safe electrical circuits.
Supplied Accessories
NAMUR mounting bolts
M5 × 40mm screws
Washers
Ready for direct installation onto compatible pneumatic actuators.
Typical Applications
Pneumatic ball valves
Butterfly valve actuators
Quarter-turn pneumatic actuators
Process automation
Chemical processing
Water treatment plant
Oil and gas installations
OEM valve packages
Industrial automation
Hazardous area installations
Quality & Reliability
Every CY520-02D valve is individually function tested before dispatch to ensure reliable operation and long service life. The robust anodised aluminium construction, lockable manual override and high-flow internal pilot design provide dependable pneumatic actuator control for demanding industrial applications.
Technical Information
NAMUR standard: VDI/VDE 3845
Protection: IP65
Insulation class: Class F
Duty cycle: 100%
Maximum working pressure: 10 Bar
HS Code: 8481201000
