Push-to-Connect Air Line Fittings – Complete Range (4–12 mm, BSP/BSPP, M5)
High-performance one-touch pneumatic fittings designed for Nylon and Polyurethane tubing. Engineered from nickel-plated brass and PA66, fitted with NBR seals and stainless-steel claws for long-term reliability.
All models are ISO 9001 manufactured, rated 0–10 bar (15 bar max), vacuum –1 bar, and supplied ready to install — with free UK delivery on all fittings.
Push Fittings – Studs + Unions
Male & Female BSP / Metric Stud and Union
push-in air fittings

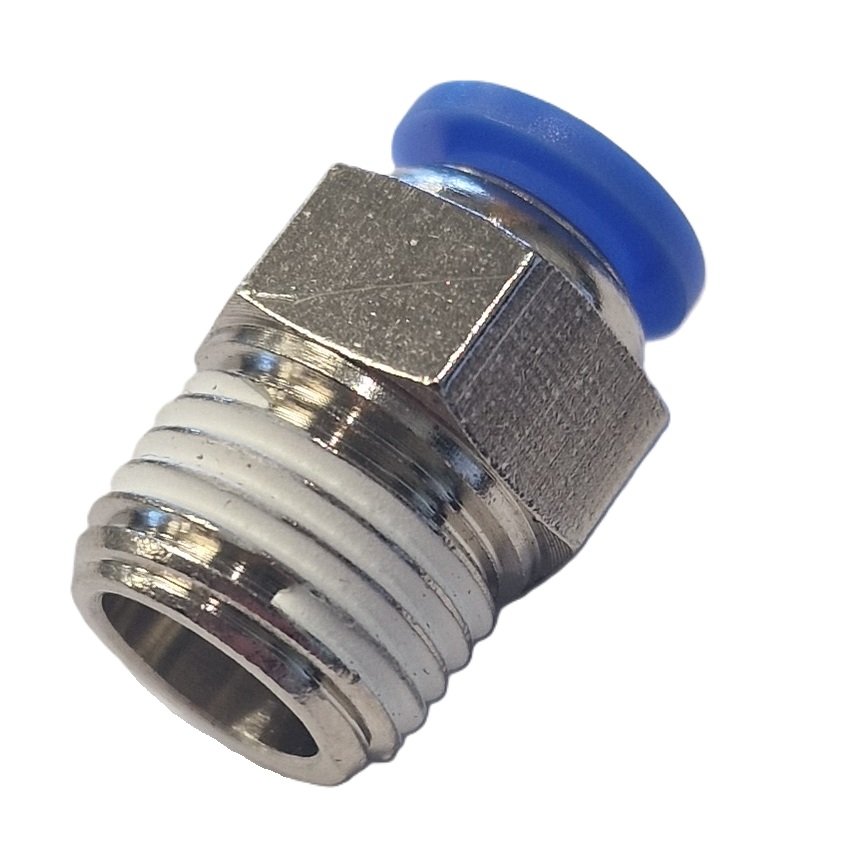

GPC – Male Stud
Compact straight connector for BSPT threads, Teflon-treated and ready to fit.
GPCF – Female Stud
Nickel-plated brass body with BSP (G) female thread and O-ring seal.
GPU – Equal & Reducing Union
Inline tube-to-tube connector for equal or mixed sizes.
GPM – Bulkhead Union
Metal body with locknut for panel mounting and through-wall connections.
GPMF – Female Bulkhead Union
BSP (G) female thread, supplied with locknut and O-ring seal.
Push Fittings – Elbows & Banjos
Male & Female BSP / Metric push-fit pneumatic connectors Elbows

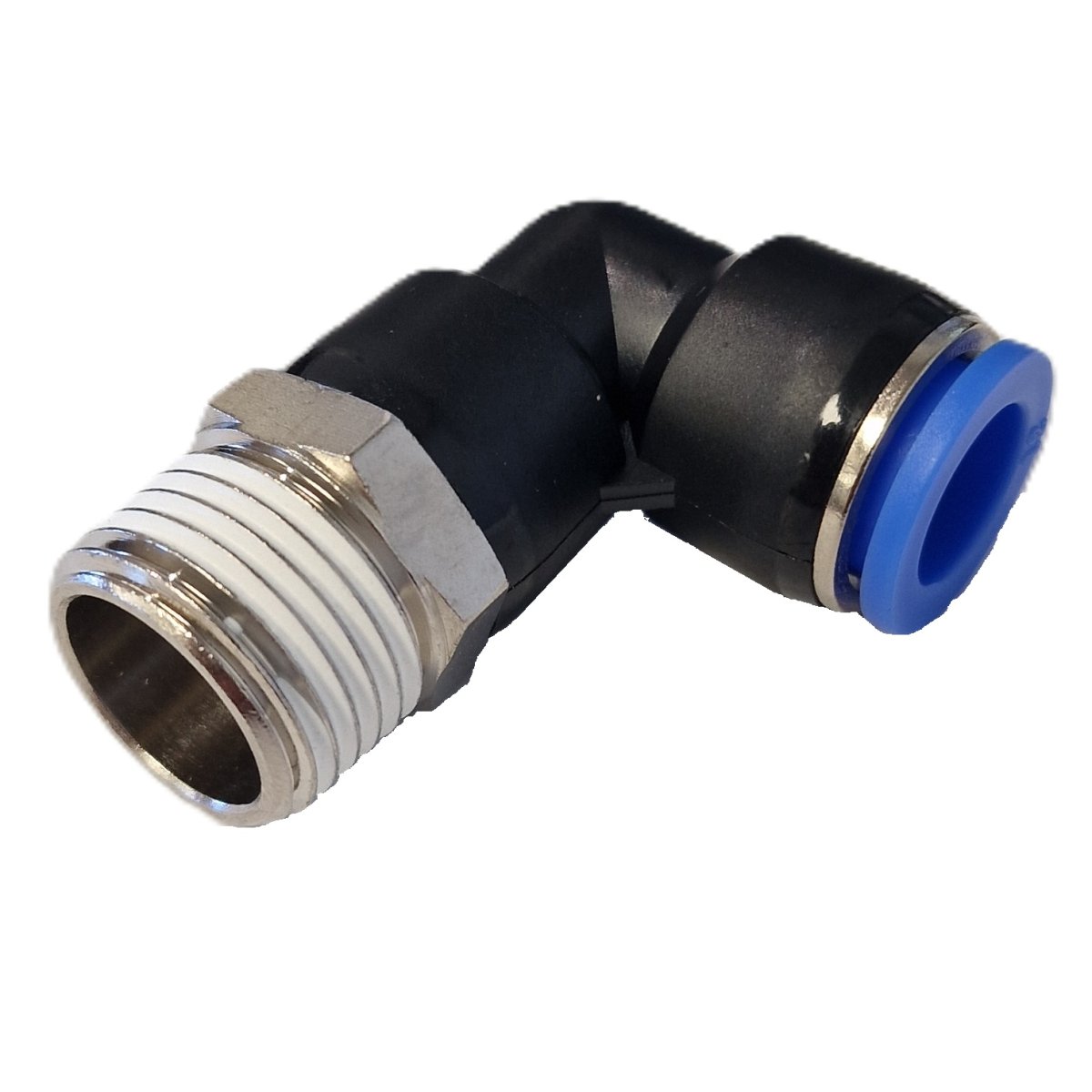

GPL – Male Stud Elbow 90°
Standard right-angle elbow, Teflon-treated BSPT threads.
GPL45 – Male Stud Elbow 45°
Compact angled elbow for confined layouts.
GPLF – Female Stud Elbow
Nickel-plated brass female BSP(G) elbow, ready to seal with O-ring.
GPLL – Extended Male Elbow
Long-thread elbow for recessed or panel-mount connections.
GPLJ – Stem Male Elbow
Equal / reducing 90° elbow with stem for modular routing.
GPH – Swivel Banjo Elbow
Full 360° swivel for flexible hose alignment.
GPHF – Swivel Banjo with Top Port
Side push-fit with top BSP female thread for stacked connections.
GPA – Twin-Banjo BSPP (G)
One male BSPP thread feeding two swivelling outlets with O-ring seal.
GPAT(2) – Dual Twin-Banjo
One BSPP inlet supplying four swivelling outlets.
GPAT(3) – Triple Twin-Banjo
One BSPP inlet supplying six outlets — compact multi-banjo manifold.
Push in style one-touch pneumatic connector T’s + Y’s
Male BSP / Metric Pneumatic Push-to-Connect Tee and Y Fittings

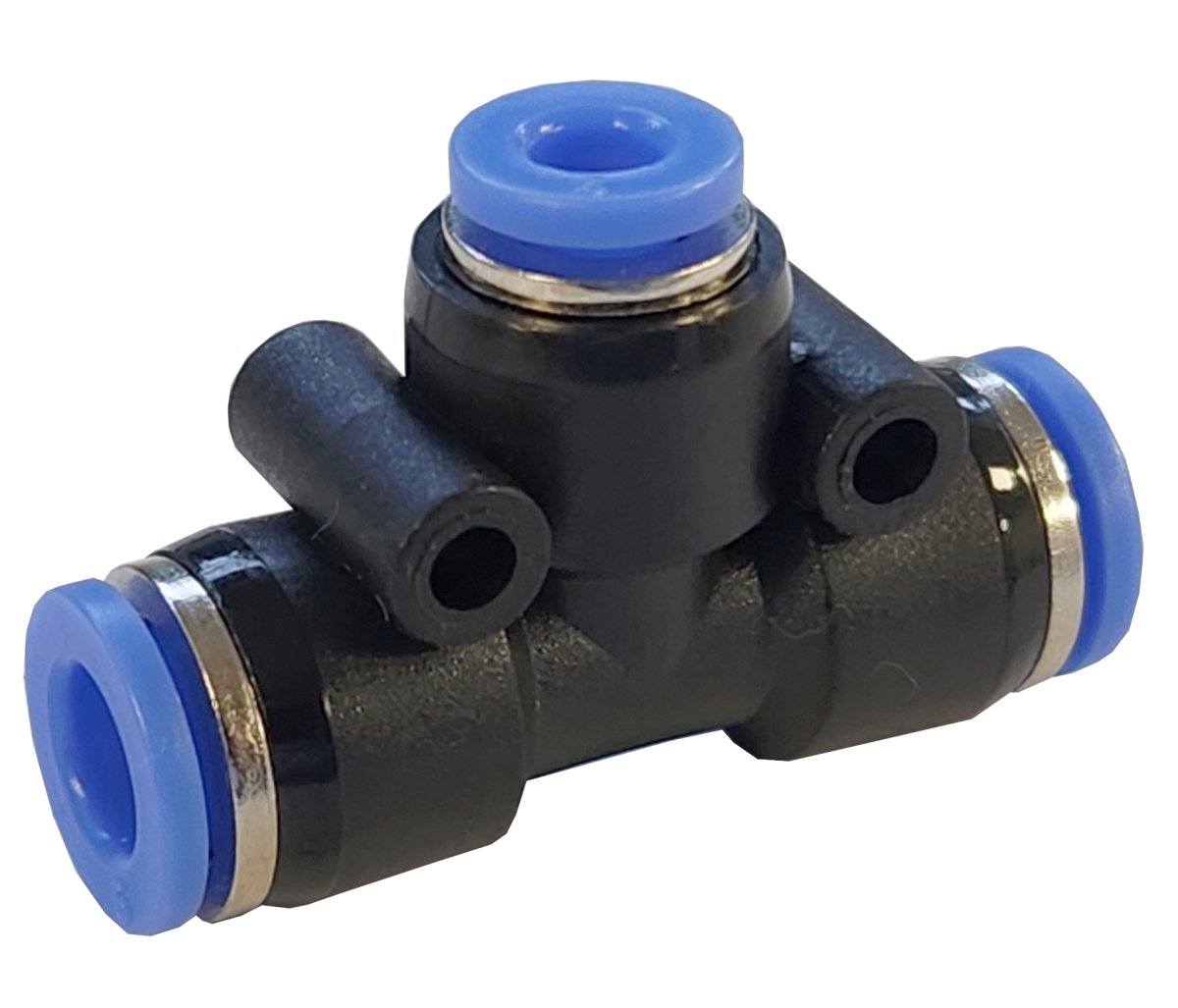

GPE – Equal & Reducing Tee
Three-way connector for main and branch tube runs.
GPB – Male Branch T
Threaded male BSP stem with twin push-fit outlets.
GPD – Male Run T
Inline male BSP thread with twin tube outlets.
GPY – Y Union
Equal / reducing dual-outlet Y connector for compact branching.
GPYJ – Stem Y Union
Single stem inlet feeding two push-fit outlets.
GPBJ – Stem Tee (Equal / Unequal)
Stem connector for two-branch or reducing circuits.
Push Connect Air Fittings – Multi-Port + Manifold
Multi-Port Metric Push-In Airline Fittings and Manifold Systems
GPX – Male BSP Y
BSP male inlet with two push-fit outlets.
GPXG – Quad Manifold
Single inlet to four outlets — compact 1-to-4 distribution block.

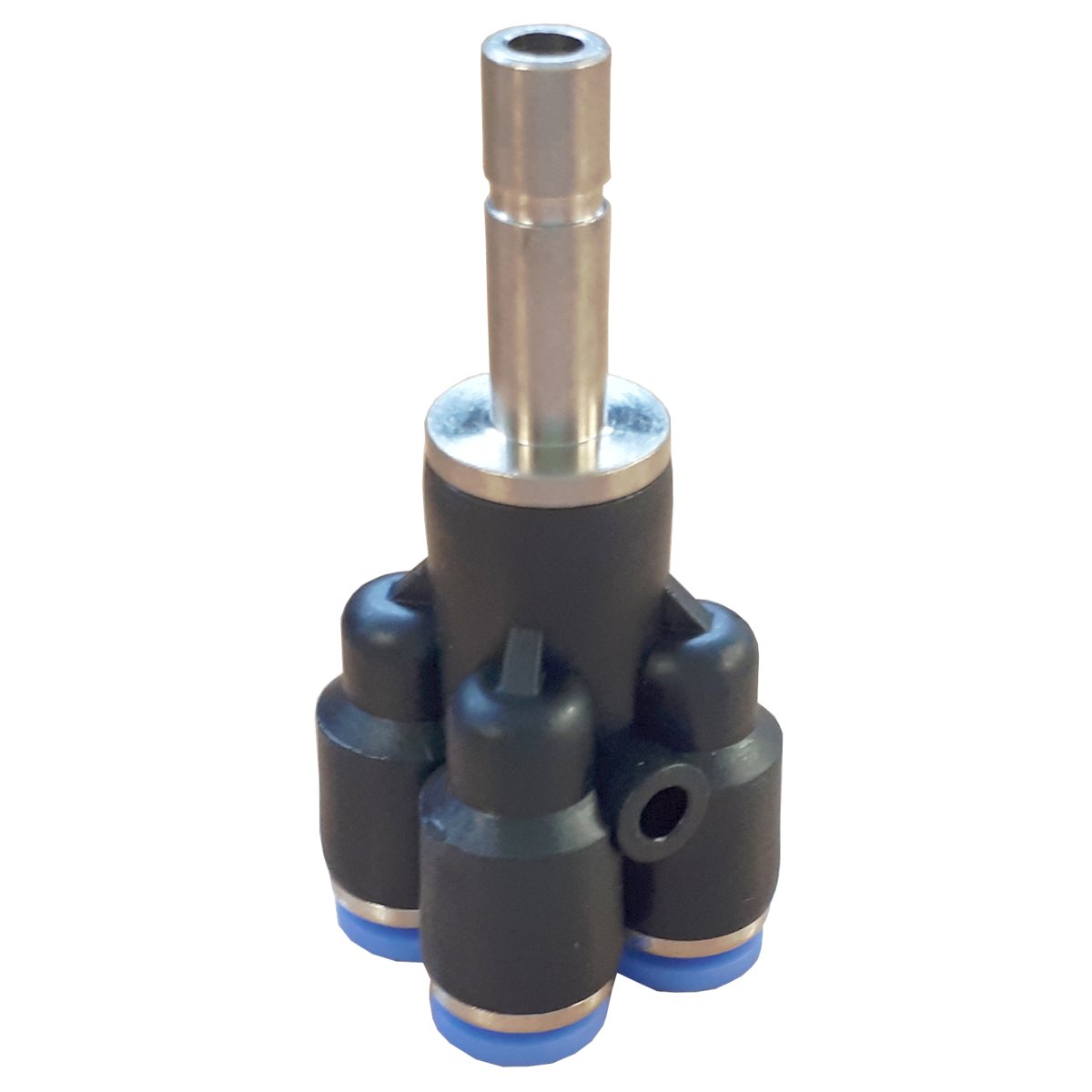

GPXJ – Stem Double Y Union
Single stem inlet to four outlets (five-port).
GPXT – Male Stud 5-Port
BSPT male inlet feeding four outlets.
Push To Connect Pneumatic Fittings – Plugs / Caps + Reducers
Push-In Blank Caps, Plugs and Reducing Pneumatic Fittings

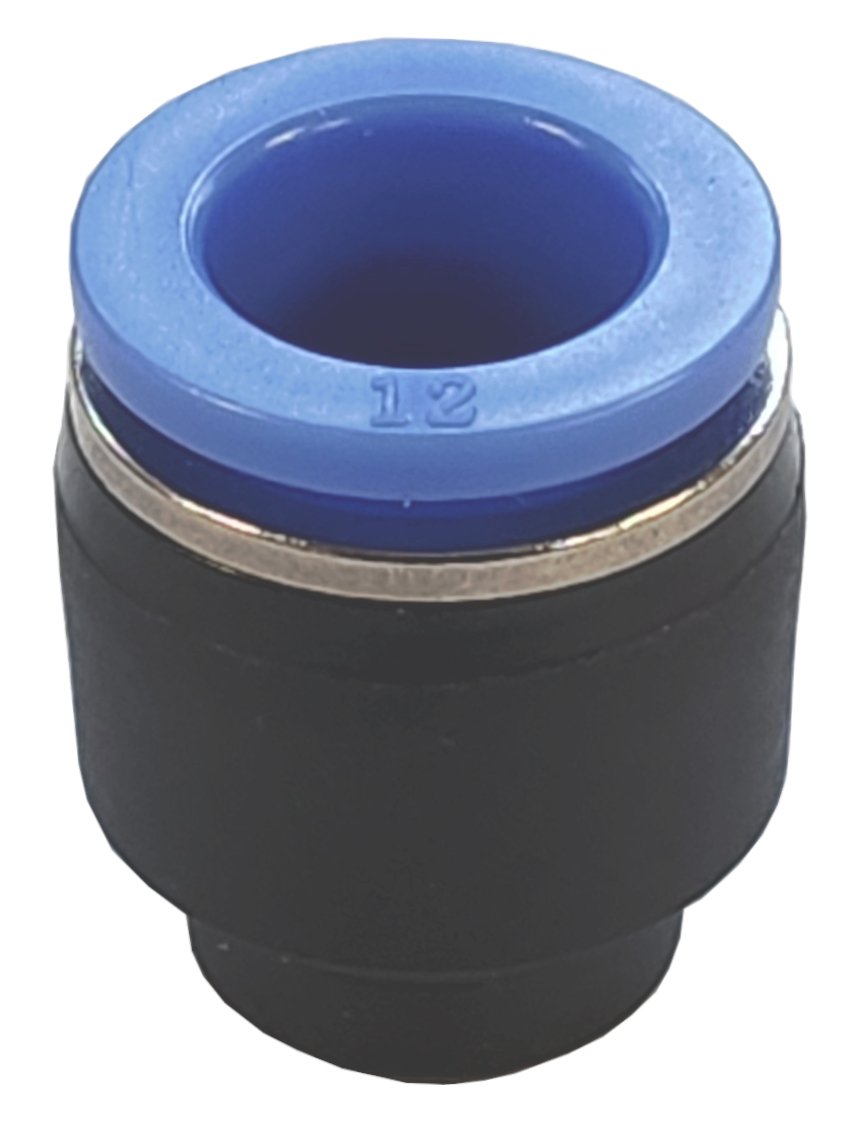

GPPF – End Cap
Push-fit tube cap for sealing unused lines.
GPP – Male Plug / Blank
BSP threaded plug with gasket and O-ring seal.
GPPGJ – Stand-Pipe Adapter / Reducer
Reducer and height adapter for vertical tube runs and panel mounting.
Pneumatic Air Line Fittings with Flow + Speed Control
.jpg)
Push Fittings with Adjustable Flow or Speed Control for Compressed Air Lines

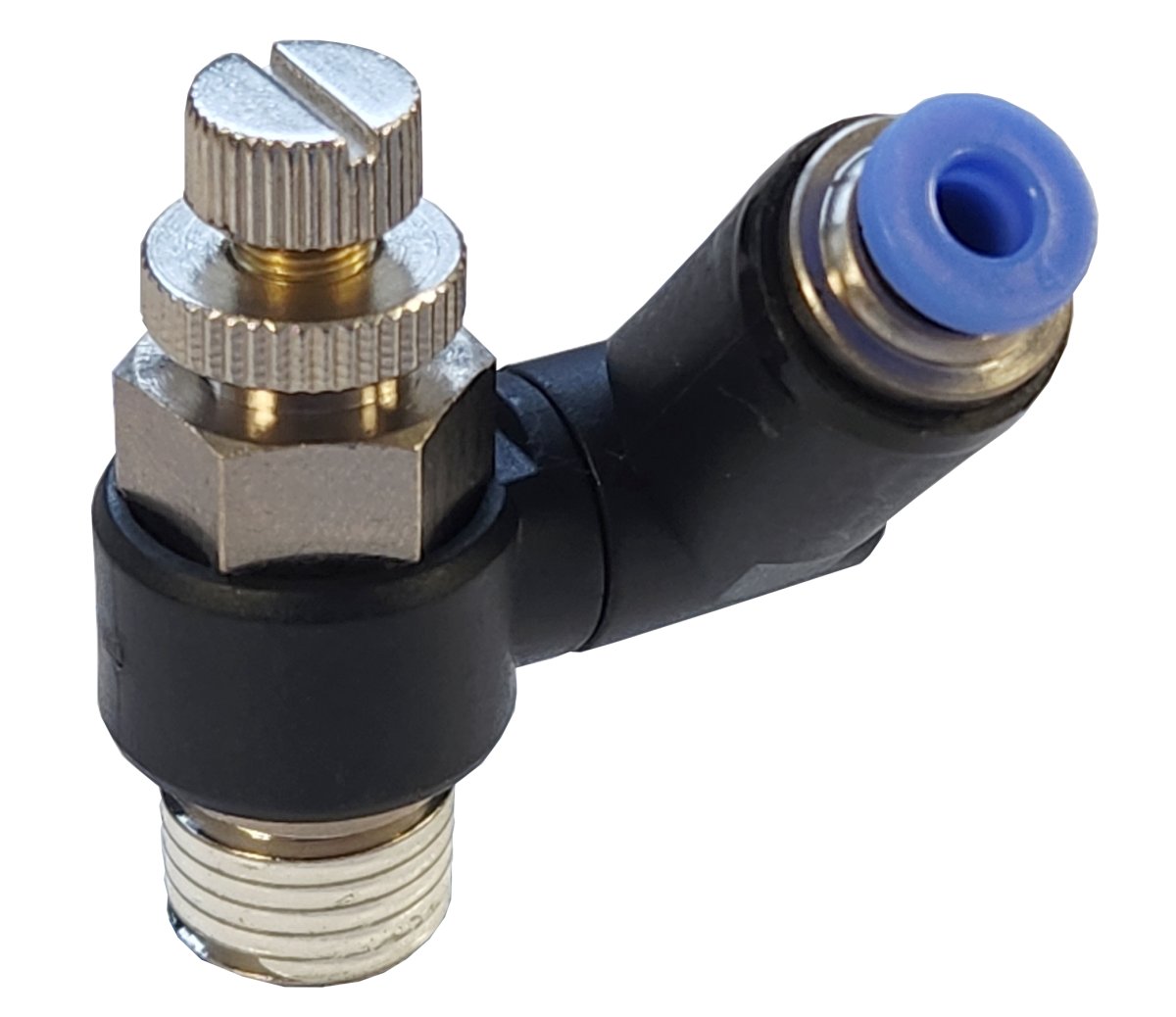

GSS – Swivel Banjo with Flow Control
Integrated needle valve for cylinder exhaust speed regulation.
GSC – Male Swivel Elbow with Flow Control
Right-angle adjustable fitting with precise metering.
GSU – Inline / Union Speed Controller
Straight push-fit body for in-line metering control.
Push Quick Fit air Line Fittings – Stem Adaptors
Rapid Push-In Stem Adaptors (4 mm – 12 mm Metric Sizes)
GPYJ – Stem Y Union
Branches one stem into two push-fit tubes.
GPBJ – Stem Tee
Compact equal / reducing tee branching from a single stem.
GPLJ – Stem Elbow
90° stem elbow for modular and manifold connections.
GPXJ – Stem Double Y
Single stem inlet feeding four outlets (multi-branch).
GPPGJ – Stand-Pipe / Reducer
Stem-style adapter for vertical or panel feed-through installations.
Technical Overview
Working pressure: 0 – 10 bar (0 – 150 PSI) Max: 15 bar (217 PSI)
Vacuum rating: –1 bar (–100 kPa / –29.5 in Hg)
Temperature range: –20 °C to +70 °C (–4 °F to +150 °F)
Tube compatibility: Polyurethane & Nylon
Construction materials: Nickel-plated brass / PA66 / POM / NBR / Stainless Steel / Zinc Alloy
Why Choose Connexion Push-to-Connect Fittings
At Connexion Developments Ltd, every push-to-connect fitting reflects our company motto — Attention to Detail.
Founded in 1998, we operate under fully accredited ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management systems, ensuring that every component meets the highest standards of precision, reliability, and environmental responsibility.
Our fittings combine nickel-plated brass, PA66, and stainless steel for strength and durability, with NBR sealing rings for consistent leak-free performance.
Each fitting is fully tested for 10 bar working pressure, vacuum down to –1 bar, and a –20 °C to +70 °C temperature range — ideal for demanding industrial, pneumatic, and automation applications.
With over 130,000 fittings in stock and a next-generation e-commerce platform, we provide rapid dispatch, technical support, and free next-day UK delivery on all standard orders.
Our products are trusted by engineers worldwide for long-term reliability, accurate assembly, and compliance with international standards.
